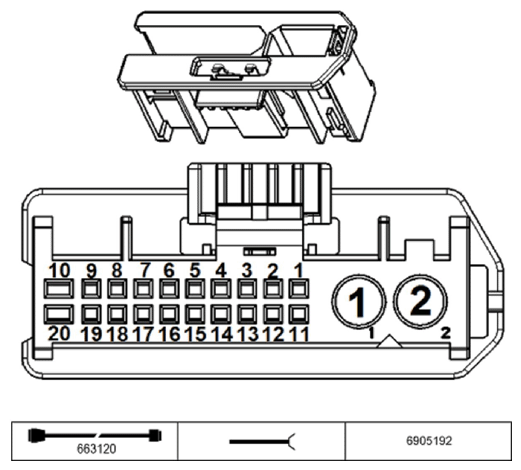

Video Module X18803 Connector End View
Pin Assignments At Plug Connector X18803
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | M | Ground | Ground point |
| 2 | -- | Not used | |
| 3 | E | RGB video signals | CCC/M-ASK |
| 4 | E | RGB video signals or Video signal | CCC/M-ASK |
| 5 | E | RGB video signals | CCC/M-ASK |
| 6 | M | Ground RGB video signals | Rear seat entertainment |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | E | Supply, terminal 30G | Fuse F119 |
| 12 | M | Shield | CCC/M-ASK |
| 13 | M | Ground RGB video signals | CCC/M-ASK |
| 14 | A | RGB video signals | Rear seat entertainment |
| 15 | A | RGB video signals | Rear seat entertainment |
| 16 | A | RGB video signals | Rear seat entertainment |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | -- | Not used |
