84 10 050 Removing and installing (replacing) USB hub

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Unlock catch (1) and guide USB hub (2) in direction of arrow out of holder (3).

Disconnect plug connection (4).

Installation:

Make sure USB hub (2) is correctly seated in holder (3).

Make sure wiring harness is correctly laid.

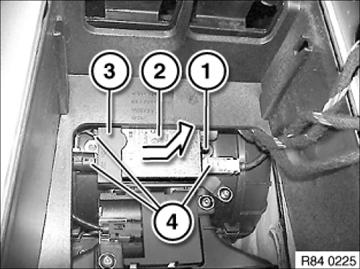

Fig 1: Disconnecting Catch And Guide USB Hub From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
