Removing engine cover (N63)

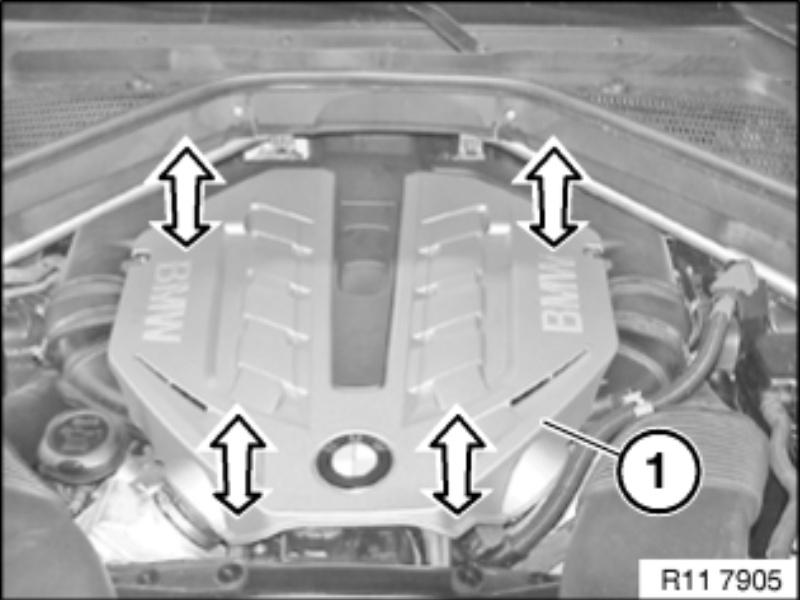

Raise engine cover (1) at the four points (see arrows) and in upward direction.

Fig 1: Identifying Engine Cover

Courtesy of BMW OF NORTH AMERICA, INC.

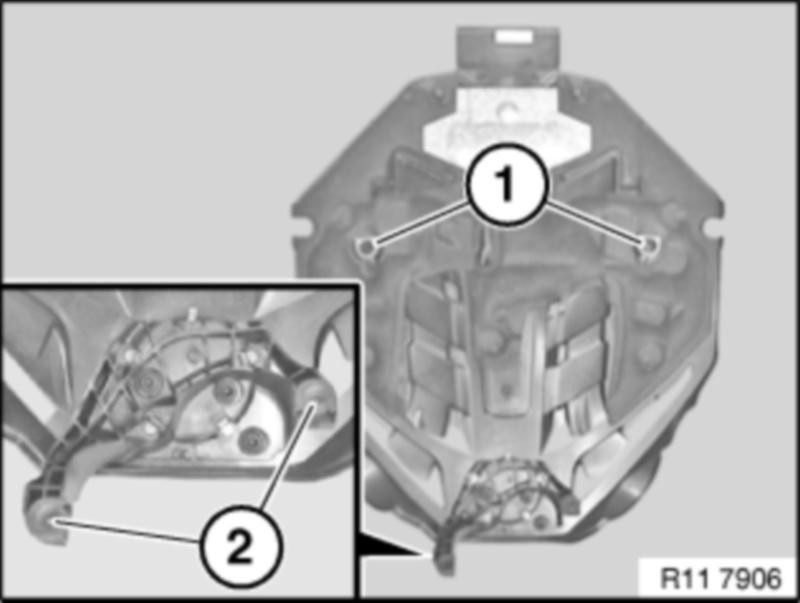

Check lock (1) for damage.

Check lock (2) for damage.

Fig 2: Identifying Engine Cover Locks

Courtesy of BMW OF NORTH AMERICA, INC.

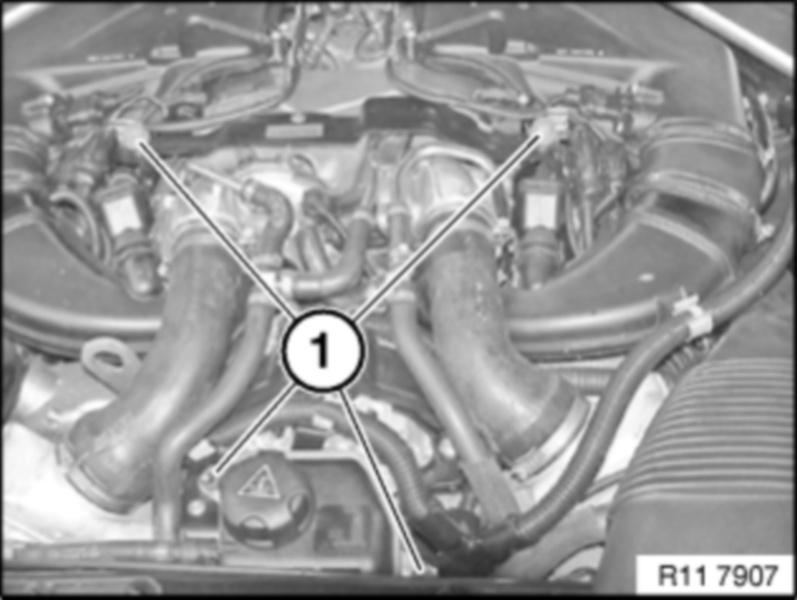

Apply a light coating of antiseize agent to take-ups (1).

Fig 3: Locating Engine Cover Take-Ups

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine
