Horse Power and Torque Diagram

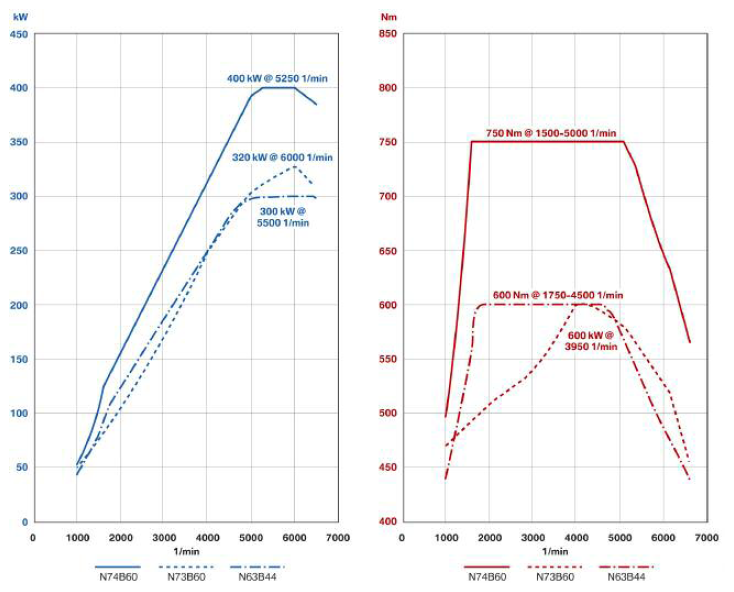

Full load diagram for the N74B60 engine, compared with the N73B60 and N63B44 engines

Fig 1: Horse Power And Torque Graph

G06896838

Courtesy of BMW OF NORTH AMERICA, INC.
