86 10... Disassembly of left and right lamp housings: Installation

Use Sikaflex 221 as sealing compound.

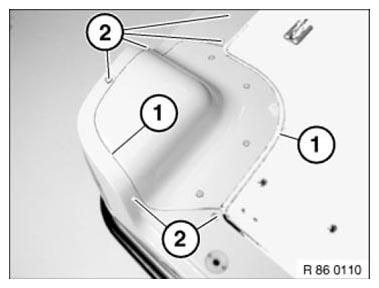

Fig 1: Identifying Sealing Compound And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections (1).

Raise side sections (2, 3).

Pull out lamp housing (4) towards inside in direction of platform.

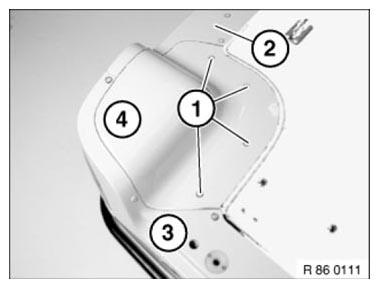

Fig 2: Identifying Lamp Housing, Side Sections And Rivet Connections

Courtesy of BMW OF NORTH AMERICA, INC.
