Ride-height Sensor: Notes

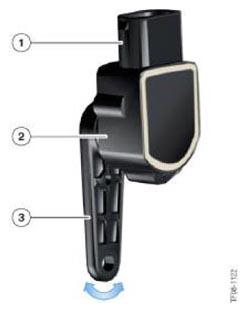

Fig 1: Identifying Ride-Height Sensor Components

Courtesy of BMW OF NORTH AMERICA, INC.

The angle of a pivoting lever is converted into a voltage signal by the ride height sensor. The greater the angle (relative to a defined starting or zero position), the greater is the output voltage. It is generated by a Hall-effect sensor element.
