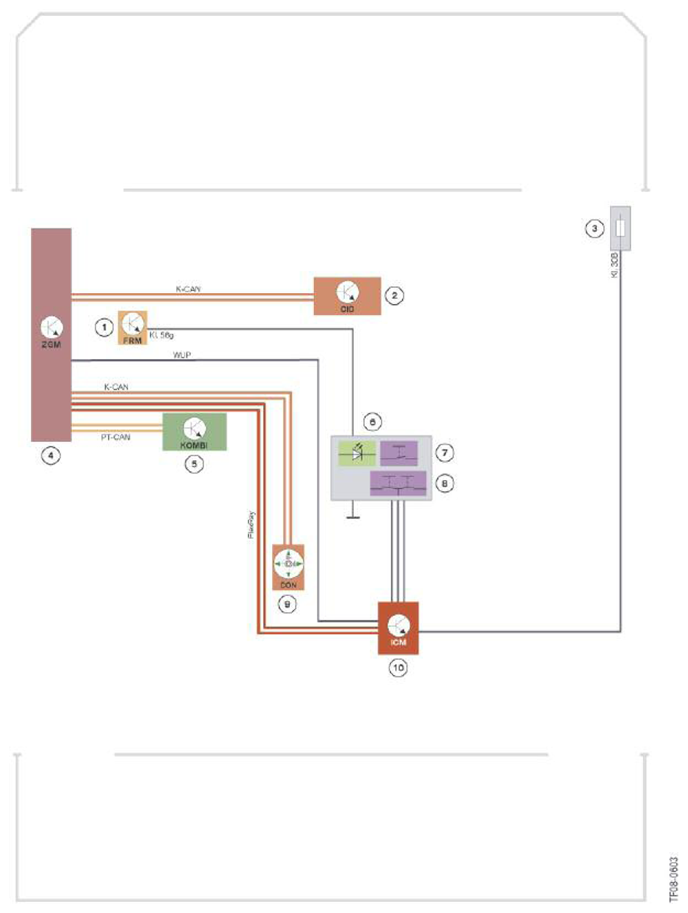

Driving Dynamics Control System Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Footwell module |
| 2 | Central Information Display |
| 3 | Fuse for ICM control unit (fuse carrier at front, junction box electronics) |
| 4 | Central gateway module |
| 5 | Instrument cluster |
| 6 | Operating unit for center console with locating lamp |
| 7 | DTC button |
| 8 | Driving dynamics switch |
| 9 | Controller |
| 10 | Integrated Chassis Management |
This system circuit diagram shows the operator control and display elements for the driving dynamics control function. For clarity of overview, the drive and dynamic driving systems upon which the driving dynamics control acts have been omitted. These are described in the Functions section instead.
