Bus Systems: Notes

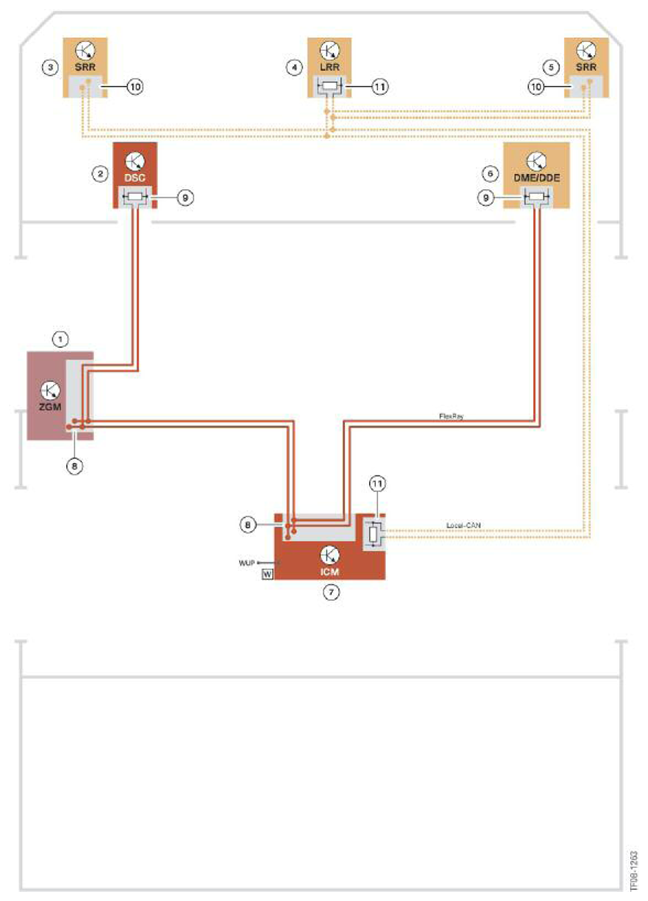

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Central gateway module |
| 2 | Dynamic Stability Control |
| 3 | Short range radar sensor (SRR), left |
| 4 | Long range radar sensor (LRR) |
| 5 | Short range radar sensor (SRR), right |
| 6 | DME/DDE control unit |
| 7 | ICM control unit |
| 8 | FlexRay routing and continuation without terminating resistor |
| 9 | Routing of FlexRay with terminating resistor |
| 10 | Routing of local CAN without terminating resistor |
| 11 | Routing of local CAN with terminating resistor |
| W | ICM control unit can be woken up |
| WUP | Wake-up line |
