Driver Assistance System Control Panel

The HUD On/Off button is located on the BEFAS. The button is resistance-coded and routed directly to the HUD. The HUD can identify the button signals or a button fault using the resistance coding.

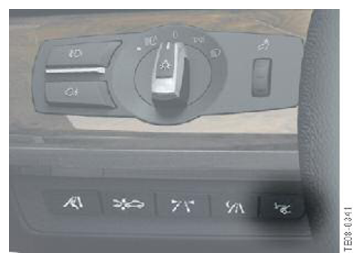

Fig 1: Display ON/OFF Button On BEFAS
G06925272Courtesy of BMW OF NORTH AMERICA, INC.
