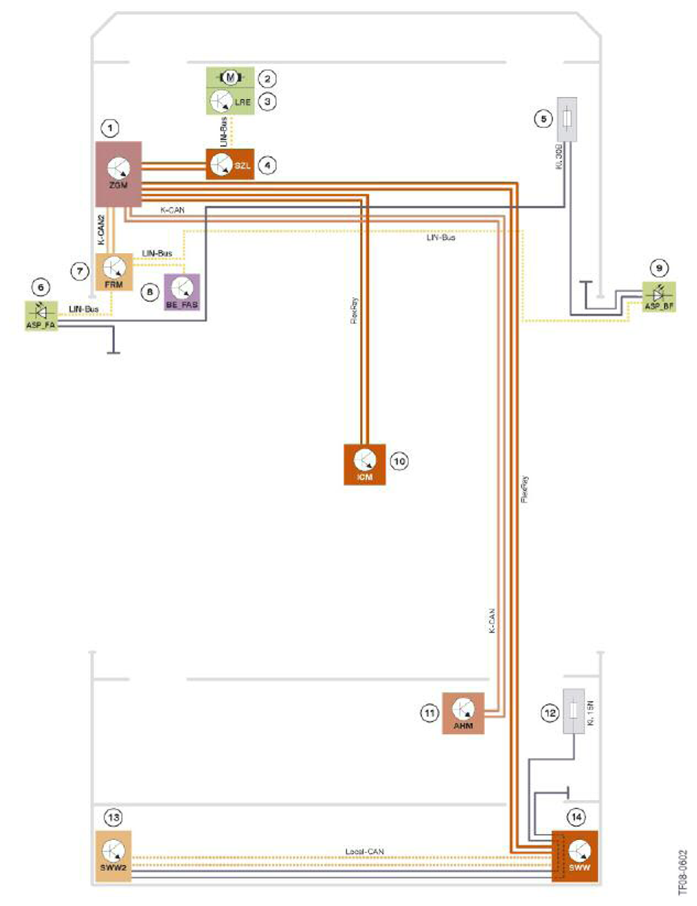

System Schematic Circuit Diagram
SYSTEM SCHEMATIC CIRCUIT DIAGRAM LEGENDS
| Index | Explanation |
|---|---|
| 1 | Central gateway module |
| 2 | Vibration actuator |
| 3 | Steering wheel module |
| 4 | Steering column switch cluster |
| 5 | Fuse for the driver/front passenger door mirrors (front fuse carrier, junction box electronics) |
| 6 | Warning light in the driver's door mirror |
| 7 | Footwell module |
| 8 | Operating unit for driver assistance systems |
| 9 | Warning light in the front passenger door mirror |
| 10 | Integrated Chassis Management |
| 11 | (Not for US) |
| 12 | Fuse for the radar sensors in the Active Blind Spot Detection system (rear fuse carrier in the luggage compartment) |
| 13 | SWW2 radar sensor for the Active Blind Spot Detection system |
| 14 | Master radar sensor for the Active Blind Spot Detection system |
