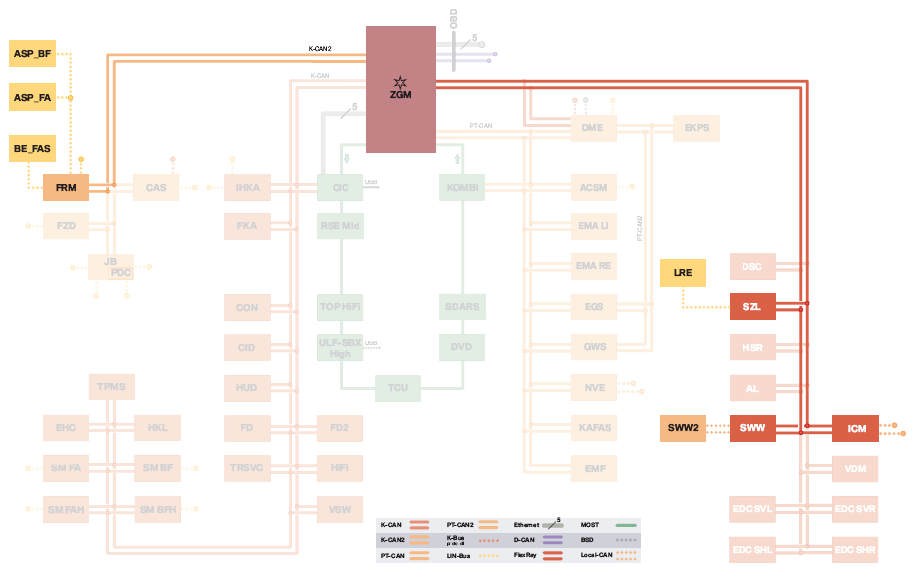

Bus System Overview
BUS SYSTEM OVERVIEW LEGENDS
| Index | Explanation |
|---|---|
| ASP_BF | Front passenger door mirror |
| ASP_FA | Driver's door mirror |
| BE_FAS | Operating unit for driver assistance systems |
| FRM | Footwell module |
| ICM | Integrated Chassis Management |
| LRE | Steering wheel module |
| SWW | Master radar sensor for the Active Blind Spot Detection system |
| SWW2 | SWW2 radar sensor for the Active Blind Spot Detection system |
| SZL | Steering column switch cluster |
| ZGM | Central gateway module |
