System Functions: Notes

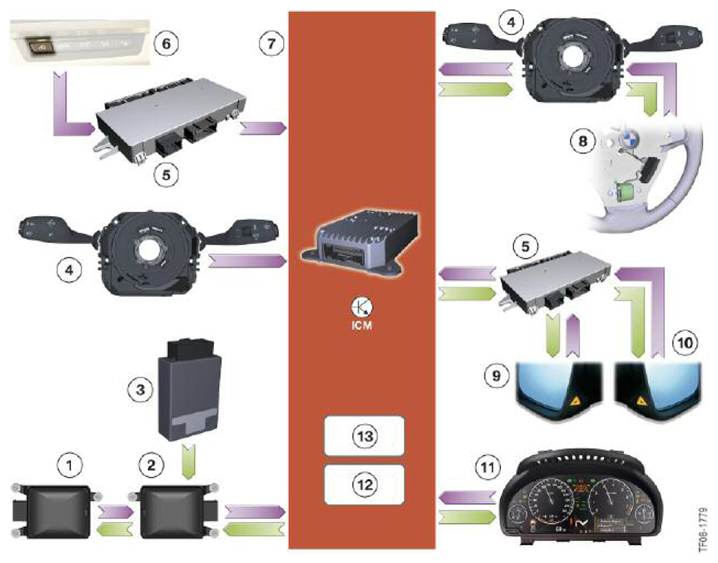

BLIND SPOT DETECTION SYSTEM LEGENDS
| Index | Explanation |
|---|---|
| 1 | Radar sensor (SWW2) |
| 2 | Radar sensor (master) |
| 3 | Not for US |
| 4 | Steering column switch cluster |
| 5 | Footwell module |
| 6 | Operating unit for driver assistance systems |
| 7 | Integrated Chassis Management |
| 8 | Steering wheel module and vibration actuator |
| 9 | Driver's door mirror |
| 10 | Front passenger door mirror |
| 11 | Instrument cluster |
| 12 | "Active Blind Spot Detection control unit function" |
| 13 | "Steering wheel vibration coordination" function |
