To Remove Engine Support Side Frame Connection

The following new body parts are required:

• (1) Connection, wheel arch/entrance

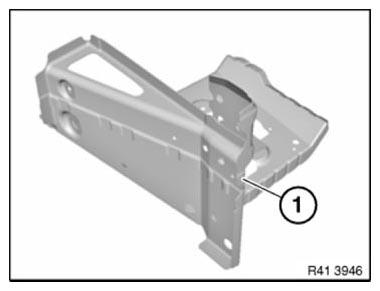

  Fig 1: Identifying Connection, Wheel Arch/Entrance

  Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

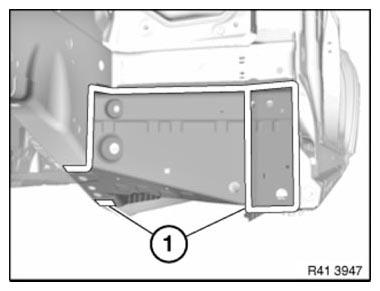

Fig 2: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

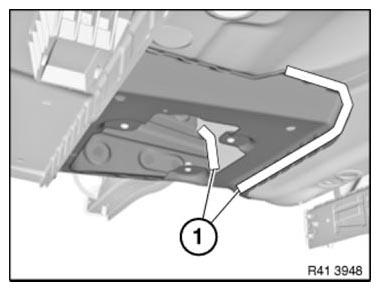

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

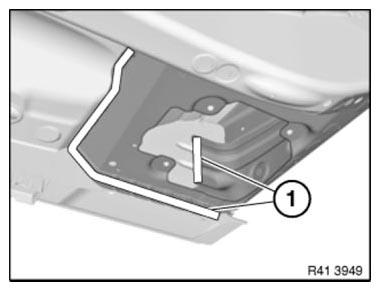

Fig 4: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
