41 00... Carrying Over Hole Pattern

When replacing a body component, it is necessary to carry over the hole pattern from the existing body to the new component.

The following pictures are a schematic representation of carrying over the hole pattern on the example of the front wheel arch.

Necessary preliminary tasks:

Adjust new part to fit with straightening attachment.

Insert paper stencil (1) between new component (2) and engine carrier and secure with adhesive tape (3).

Carry over contour (4) of new component to stencil.

Remove new component.

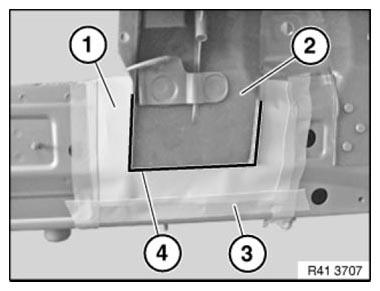

Fig 1: Securing Paper Stencil Using Adhesive Tape
G06890298Courtesy of BMW OF NORTH AMERICA, INC.

(1) = contour of new component.

Carry over positions of holes (2) to stencil by pressing down with thumbs.

Remove stencil.

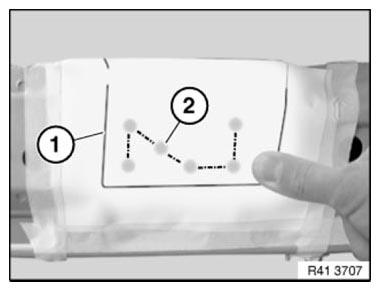

Fig 2: Carrying Over Positions Of Holes To Stencil
G06890299Courtesy of BMW OF NORTH AMERICA, INC.

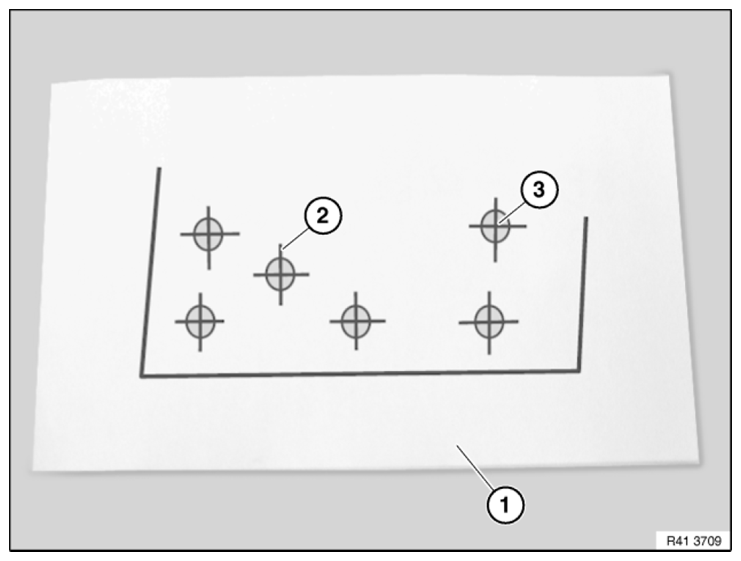

Fig 3: Identifying Holes With Crosses And Stencil
G06890300Courtesy of BMW OF NORTH AMERICA, INC.

Lay stencil (1) on a flat surface.

Mark center points of holes with crosses (2).

Then pierce paper through center points (3) of holes with a pointed object.

Align stencil (1) according to contours (2) to inside of new component and secure with adhesive tape (3).

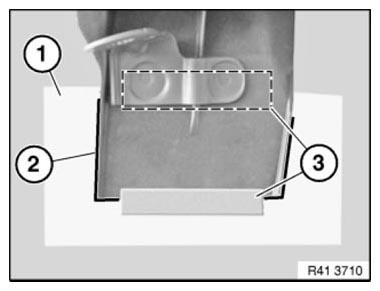

Fig 4: Securing Stencil To Component Using Adhesive Tape
G06890301Courtesy of BMW OF NORTH AMERICA, INC.

Turn over new component.

IMPORTANT: Crosses must not be visible in this view.

Set punch marks at pierced center points (1).

Grip directly under punch marks for marking with punch.

Remove stencil (2).

Drill holes to approx. 3 - 4 mm dia. at punch marks (1).

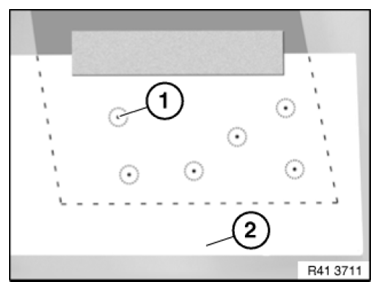

Fig 5: Identifying Stencil And Punch Marks
G06890302Courtesy of BMW OF NORTH AMERICA, INC.

Position new component (1) with straightening attachment on vehicle.

Drill out holes (2) to 6.7 mm dia.

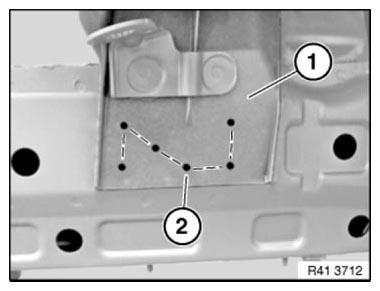

Fig 6: Identifying Component Position And Drill Holes
G06890303Courtesy of BMW OF NORTH AMERICA, INC.
