Top View, Front End

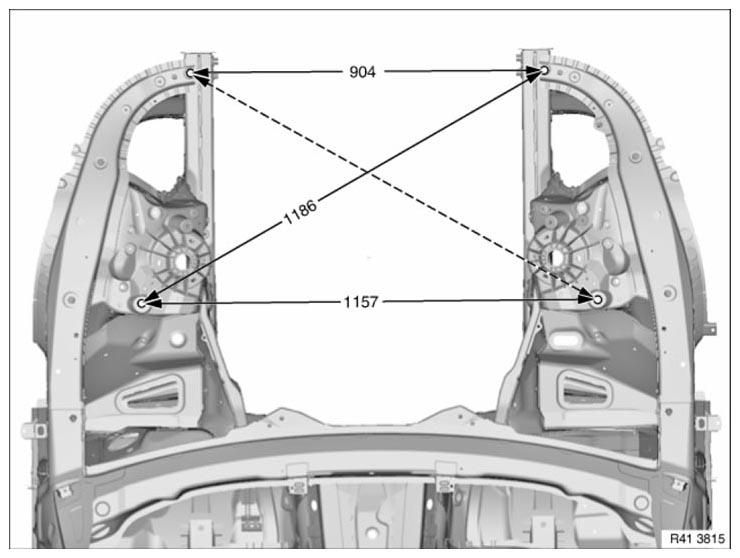

Fig 1: Engine Compartment Dimensions And Measurement Points (Top View, Front End)
G06890307Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.
