86 10... Replacing bar: Notes

NOTE: Disassembly of lashing eyes, refer to REPLACING LASHING PLATE AND LASHING EYE.

Remove lashing eyes (1).

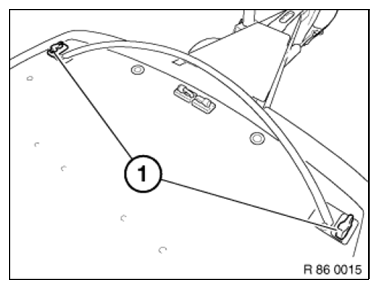

Fig 1: Identifying Lashing Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective caps (1) on left/right.

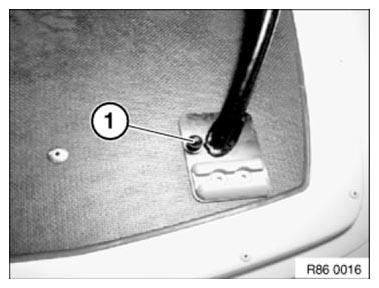

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon screws (1) and countersunk head screws (2) on left/right.

Remove bar.
