86 10... Replacing 12 volt socket: Installation

Position all seals correctly. Also secure plug with grommet (2) using new cable tie to other socket.

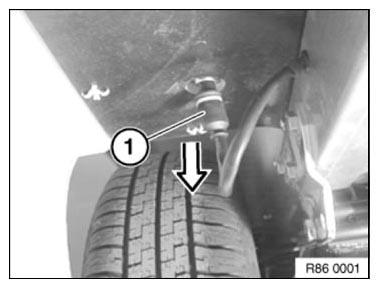

Fig 1: Removing Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

On upper side of platform, release Phillips screws (1) on mounting bracket (2).

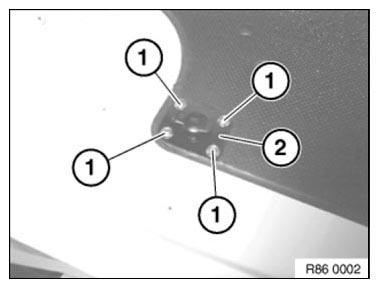

Fig 2: Identifying Phillips Screws On Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing compound along white marking (1).

Make sure cable is correctly laid.

Use Sikaflex 221 as sealing compound.

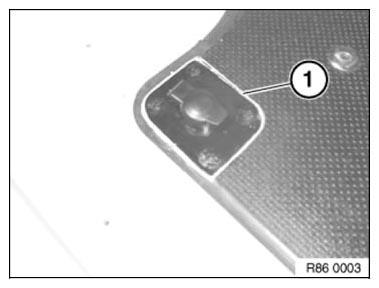

Fig 1: Identifying White Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Grip under mounting bracket (1) with a screwdriver and lever out bracket (1) towards top. Remove bracket (1).

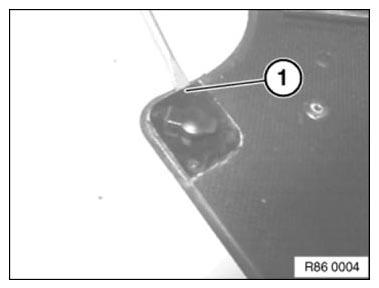

Fig 2: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1). Remove socket (2) from mounting bracket (3).

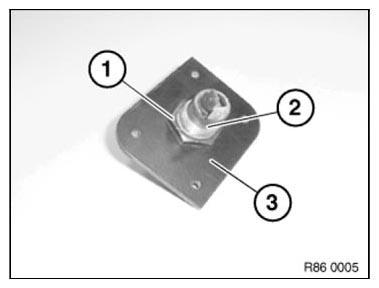

Fig 3: Identifying Socket, Mounting Bracket With Nut
