86 10... Disassembly of front apron: Notes

Drill out rivets (1) on lower apron edge.

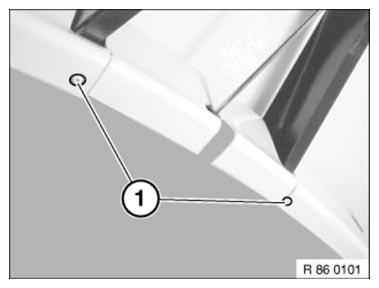

Fig 1: Identifying Rivets On Lower Apron Edge
G06886751Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing compound (1).

Drill out rivets (2).
