61 13... Inline plugs, 8-, 12-pin, System D2.5

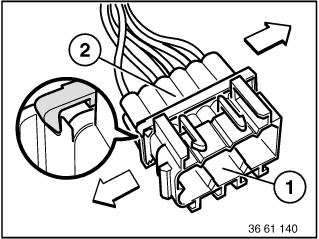

Move upper section of connector (1) and lower section of connector (2) against each other in direction of arrow.

Fig 1: Identifying Upper And Lower Connector Sections

Courtesy of BMW OF NORTH AMERICA, INC.

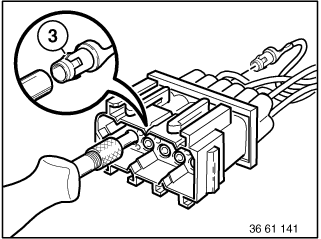

With special tool 61 0 303 , press back retaining hook (3) of corresponding contact and pull out cable with contact.

Fig 2: Identifying Arrester Hook And Special Tool 61 1 132

Courtesy of BMW OF NORTH AMERICA, INC.
