Telematics Control Unit (TCU) Circuit Diagram

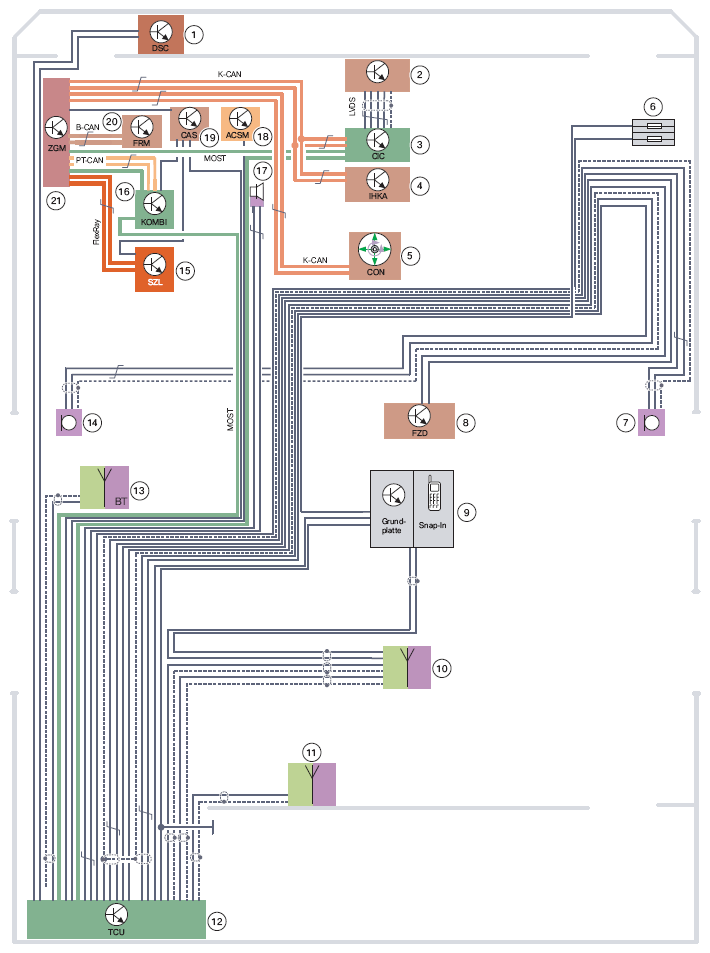

Fig 1: Telematics Control Unit (TCU) Circuit Diagram
G06925414Courtesy of BMW OF NORTH AMERICA, INC.
INDEX REFERENCE CHART

Index Explanation
1 Dynamic Stability Control (DSC)
2 Central Information Display (CID)
3 Head unit (CIC)
4 Integrated automatic heater and A/C control (IHKA)
5 Controller (CON)
6 Fuse in the junction box
7 Microphone (passenger's side)
8 Roof function module (FZD)
9 Base plate phone snap-in adapter
10 Roof antenna
11 Emergency-call GSM antennal (back-up)
12 Telematics Control Unit (TCU)
13 Bluetooth antenna
14 Microphone (driver's side)
15 Steering column switch cluster (SZL)
16 Instrument cluster
17 SOS speaker
18 Crash safety module (ACSM)
19 Car Access System (CAS)
20 Footwell module (FRM)
21 Central gateway module (ZGM)

MOST signals on the control unit TCU

MOST SIGNAL FUNCTIONAL CHART

In/Out Signal Source/sink Function
In GPS signals GPS antenna to CIC Position data
In Control signals CIC Phone book, connection set-up, incoming-call acceptance, terminal control, etc.
Out Audio signals CIC Audio signals, call recipient BMW ASSIST
Out Audio signals CIC Audio signals, call recipient mobile phone

The TCU receives its power supply via terminal 30F. The power supply via terminal 30F is necessary for the provision of the BMW ASSIST services, including for example:

These services are implemented via the MOST bus. The TCU reacts to a call from the provider, placed at the customer's request. The TCU sends a signal via the MOST bus to the Car Access System (CAS). The CAS then wakes up the vehicle.
