V-TEST CABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 08 10, Date of Issue: March 2010

BMW:	N55
GROUP:	04 - Tools and Equipment

SUBJECT

V-Test Cable

SITUATION

Distribution of the following test cable will be through the Automatic Tool Shipment Program. Additional test cables may be purchased through your Regional Distribution Center (RDC).

V-Adapter test cable 12 Pin

Order P/N 83 30 0 496 605

Cartool P/N 614 210

This test cable is used for diagnostic work on the N55 DME.

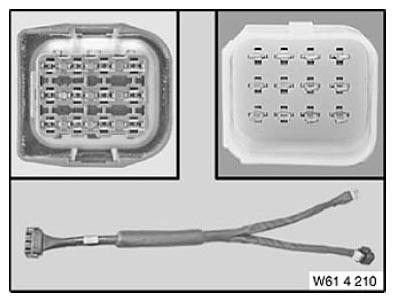

Fig 1: V-Adapter Test Cable 12 Pin
