7.2. Input/output Signals

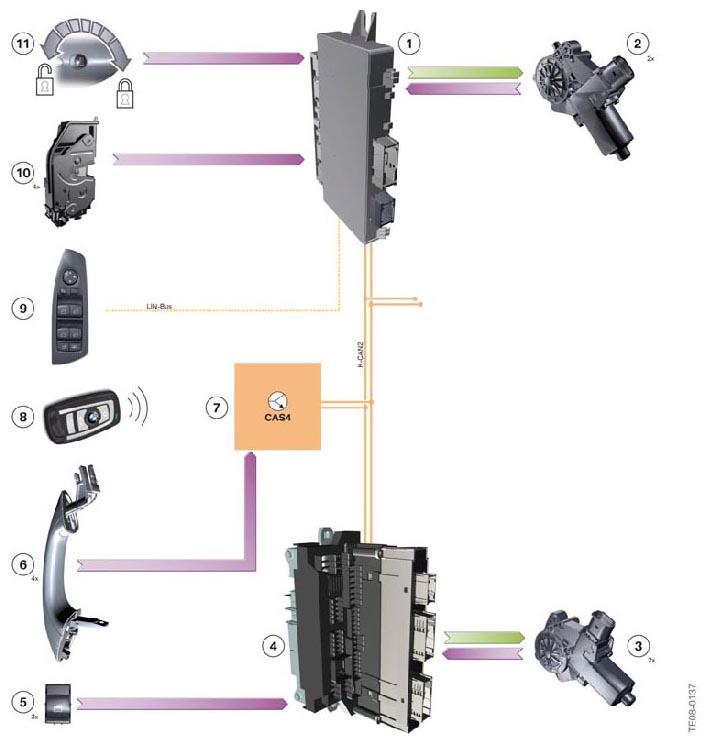

EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Power window motor, front doors |
| 3 | Power window motor, rear doors |
| 4 | Junction box electronics (JBE) |
| 5 | Power window switch, driver's side rear/passenger side front and rear |
| 6 | Outer door handle with Comfort Access (CA) |
| 7 | Car Access System (CAS) |
| 8 | ID transmitter |
| 9 | Switch block in the driver's door |
| 10 | Lock with door contact |
| 11 | Driver's-door lock barrel |
| K-CAN. | Body controller area network |
| LIN-Bus | Local Interconnect Network bus |
