Installation Position, Seat Occupancy Electronics

Fig 1: Identifying Seat Occupancy Mat Folds And Creases

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Seat occupancy mat folds and creases

Fig 2: Identifying Conductor Path And ELO Box

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	ELO box
2	Conductor paths

Fig 3: Identifying Slipped Conductor Paths

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Conductor path has slipped

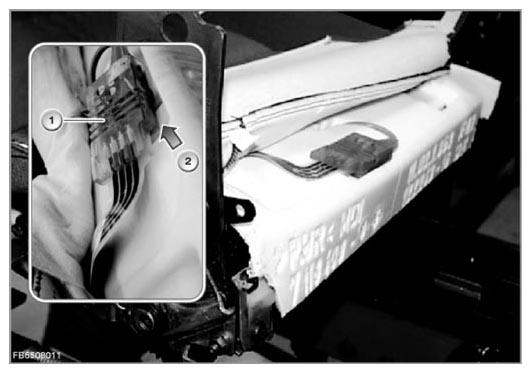

Fig 4: Locating Slipped Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Electronics box
2	Electronics box has slipped

Fig 5: Identifying Fabric Adhesive Tape Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Only fix dashed adhesive area
2	Fabric tape

Fig 6: Identifying Conductor Path Twisted

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Conductor path twisted

Fig 7: Checking Connector Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Connector not locked in place
2	Connector not correctly locked in the fixture

Fig 8: Identifying Connector Locked

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Connector locked in place correctly
2	Connector is correctly locked in the fixture

Fig 9: Identifying Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Cable strap

Fig 10: Identifying Cable Strap Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Always use the shorter distance 1
2	Do not use the longer distance (no 100% tension relief)

Fig 11: Identifying Module Locking Of Central Seat Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Termination module 3 (SAB)
2	Lock the termination module correctly in the detent lugs of the central seat connector housing.

Fig 12: Identifying Bracket For Central Seat Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Latch mechanism in the bracket of the central seat connector

Fig 13: Identifying Latch Mechanism Of Central Seat Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Slide not locked in position
2	Slide locked in position
