4100... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

Under Body View 1

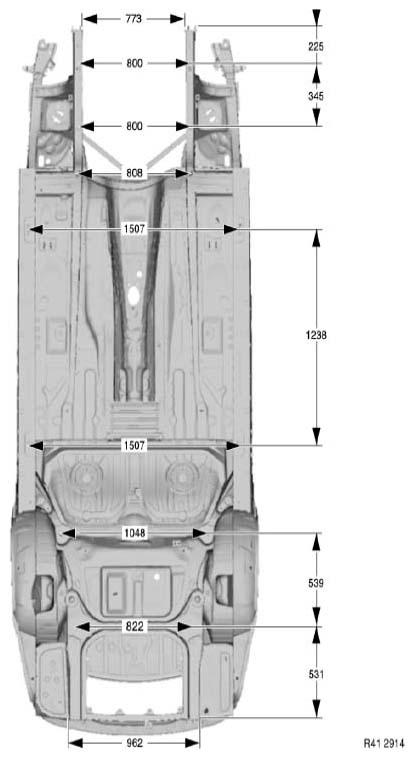

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

G04726771

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

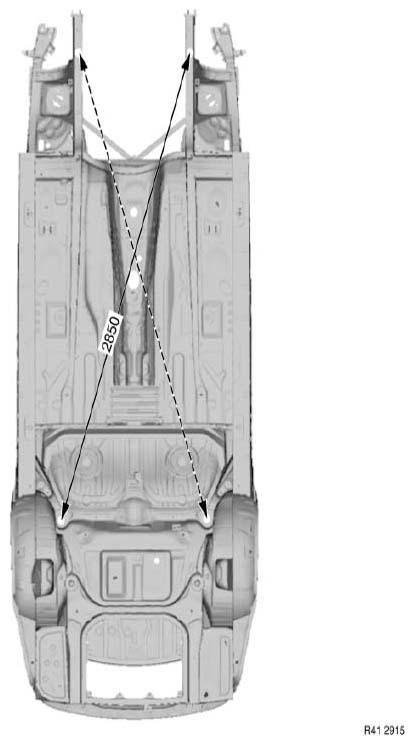

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

G04726772

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

Fig 3: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

G04726773

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

View, B-pillar (Saloon and Touring only)

G04752145

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1551 mm between screw-on points of door brakes.

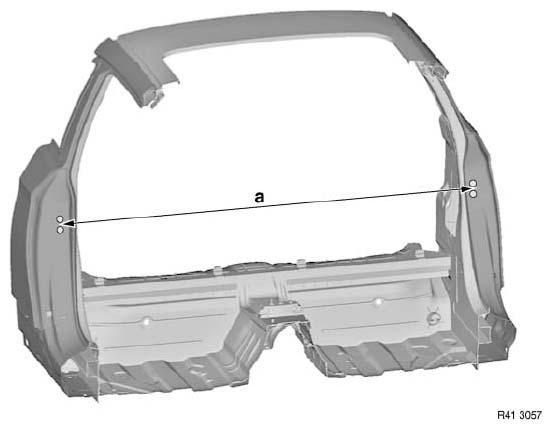

View, B-pillar (Coupe only)

G04726775

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1543 mm between screw-on points of lock strikers.
