33 10... Removing and installing/replacing vibration absorber

Version A:

Release screw (1).

Tightening torque 33 17 2AZ .

Remove vibration absorber (2).

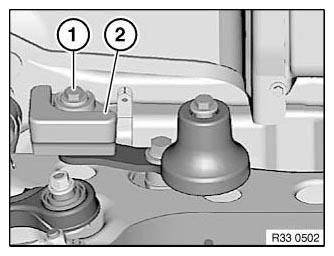

Fig 1: Identifying Vibration Absorber And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version A with additional absorber:

Only E92 320 D with automatic transmission!

Release bolt (1) and remove the vibration damper (3) with the additional mass (2).

Tightening torque 33 17 4AZ .

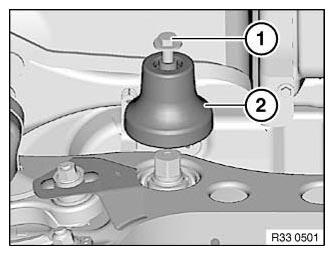

Fig 2: Identifying Vibration Damper And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Undo screw (1) and remove vibration absorber (2).

Tightening torque 33 17 3AZ .

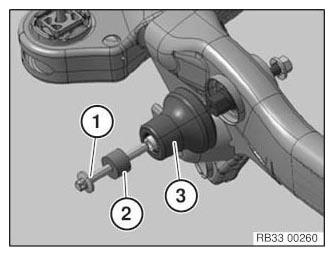

Fig 3: Identifying Vibration Absorber And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version C:

NOTE: Removal process shown for left-hand vibration absorber.

Undo screw (1) and remove vibration absorber (2).

Tightening torque 33 17 3AZ .

Fig 4: Identifying Screw And Vibration Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Version D (E93):

Remove trailing link on left and right rear axle.

Undo screws (1) and remove vibration absorber (2).

Tightening torque 33 33 3AZ .
