Comparison Images EWS Oscilloscope Measurement (CAS): Notes

IMPORTANT: The DME/DDE must remain connected for the duration of the test-measurement routine. The CAS control unit should not be enabled. It transmits a continuous EWS immobiliser signal whenever Terminal 15 is hot.

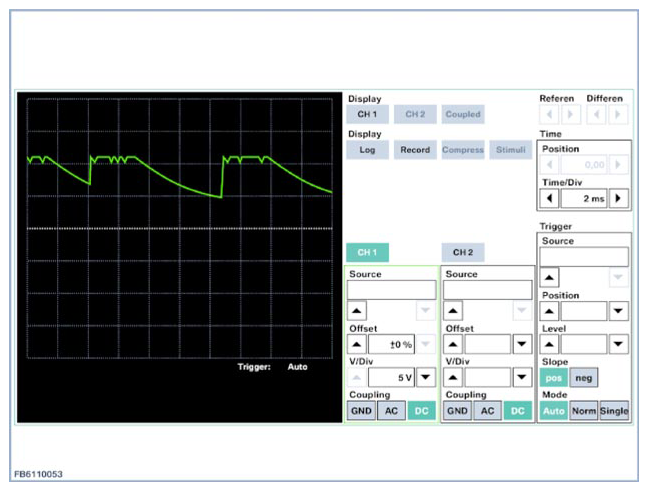

Fig 1: CAS Control Unit Signal Waveform (OK)

Courtesy of BMW OF NORTH AMERICA, INC.

Please note that the "OK" assessment relates exclusively to the data wire and the signal shape. It cannot be determined whether the transmitted code is correct.

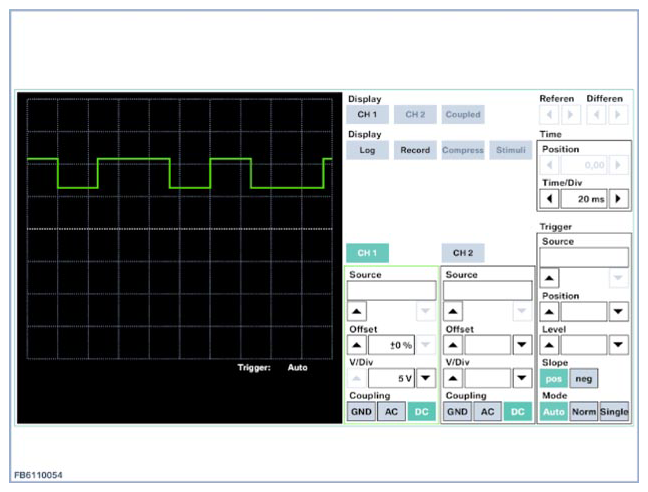

Fig 2: CAS Control Unit Signal Waveform (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a fault in the DME/DDE.

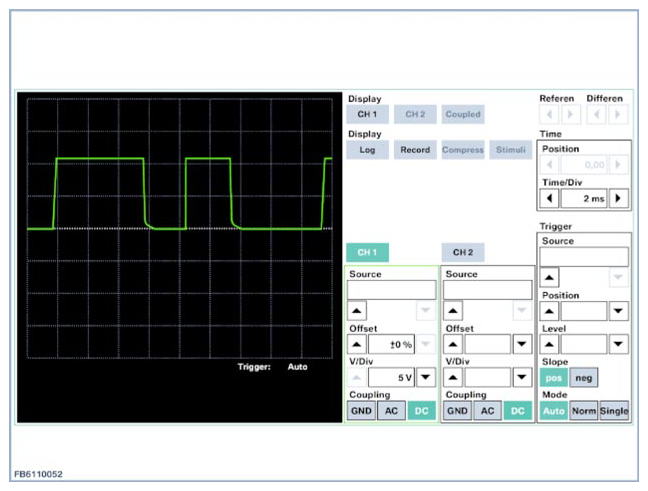

Fig 3: CAS Control Unit Fault Signal Waveform (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a wire fault or a fault in the CAS.

Fig 4: Display - DSC Control Unit Speed Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a short circuit to positive.

Fig 5: Display - DSC Control Unit Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a short circuit to earth or an open wire/circuit.
