System functions: Notes

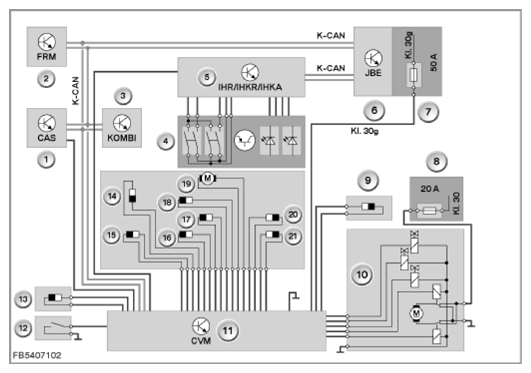

| Index | Explanation |
|---|---|
| 1 | Car Access System (CAS) |
| 2 | Footwell module (FRM) |
| 3 | Instrument cluster (KOMBI) |
| 4 | Center console switch cluster |
| 5 | Control module for climate control |
| 6 | Junction box electronics (JBE) |
| 7 | Power distributor in junction box |
| 8 | Rear distribution box |
| 9 | Hall sensor 'convertible top cover locked' |
| 10 | Hydraulic unit |
| 11 | Convertible top module (CVM) |
| 12 | Switch for convertible top compartment floor |
| 13 | Hall sensor - open convertible top compartment lid |
| 14 | Hall sensor 'cowl panel locked' |
| 15 | Hall sensor 'tensioning bar extended' |
| 16 | Hall sensor 'tensioning bar set up' |
| 17 | Hall sensor 'tensioning bar stored' |
| 18 | Incremental transducer |
| 19 | Drive unit for locking cowl panel |
| 20 | Hall sensor 'main pillar set up' |
| 21 | Hall sensor 'main pillar stored' |
The following system functions are described for the automatic convertible top:
- Opening and closing the convertible top
- Convenience operation
- Check Control messages
