V-Test Cables (04 39 09)

Publication date: 2010-02-03
Reference number: 04 39 09

V-TEST CABLES

V-TEST CABLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 39 09, Date of Issue:  February 2010
BMW: N55
GROUP: 04 - Tools and Equipment

SUBJECT

V-test Cables

SITUATION

Distribution of the following test cables will be through the Automatic Tool Shipment Program. Additional test cables may be purchased through your Regional Distribution Center (RDC).

IMPORTANT: at the time of publication, the 1 V-adapter test cable (12 Pin) will not be available for distribution. It will be distributed as soon as stock is received.

V-adapter test cable 48 Pin

Order P/N 83 30 0 496 731

Cartool P/N 614 180

Used for diagnostic work on the N55 DME.

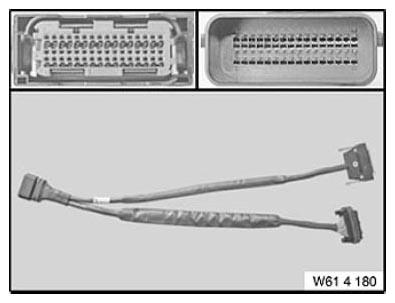

Fig 1: V-Adapter Test Cable 48 Pin
G06975675

V-adapter test cable 58 Pin

Order P/N 83 30 0 496 732

Cartool P/N 614 190

Used for diagnostic work on the N55 DME.

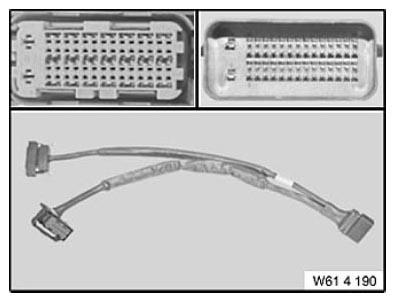

Fig 2: V-Adapter Test Cable 58 Pin
G06975676

V-adapter test cable 11 Pin

Order P/N 83 30 0 496 604

Cartool P/N 614 200

Used for diagnostic work on the N55 DME.

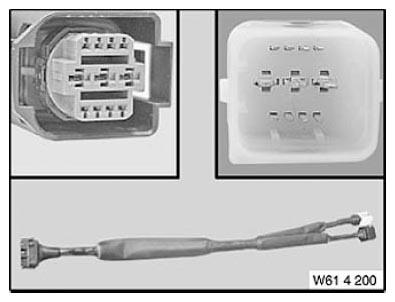

Fig 3: V-Adapter Test Cable 11 Pin
G06975677

V-adapter test cable 11 Pin

Order P/N 83 30 0 496 755

Cartool P/N 614 260

Used for diagnostic work on the N55 DME.

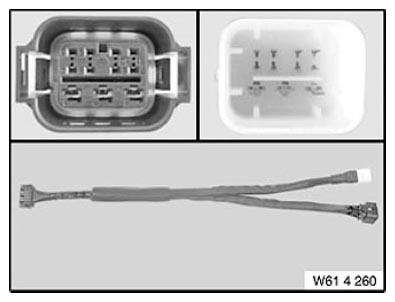

Fig 4: V-Adapter Test Cable 11 Pin
G06975678

V-adapter test cable 24 Pin

Order P/N 83 30 0 496 756

Cartool P/N 614 270

Used for diagnostic work on the N55 DME.

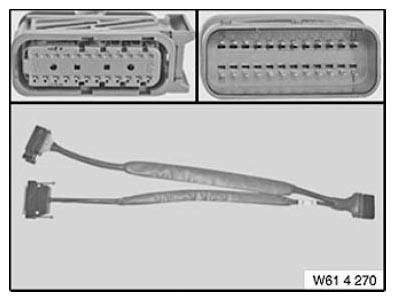

Fig 5: V-Adapter Test Cable 24 Pin
G06975679
