Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

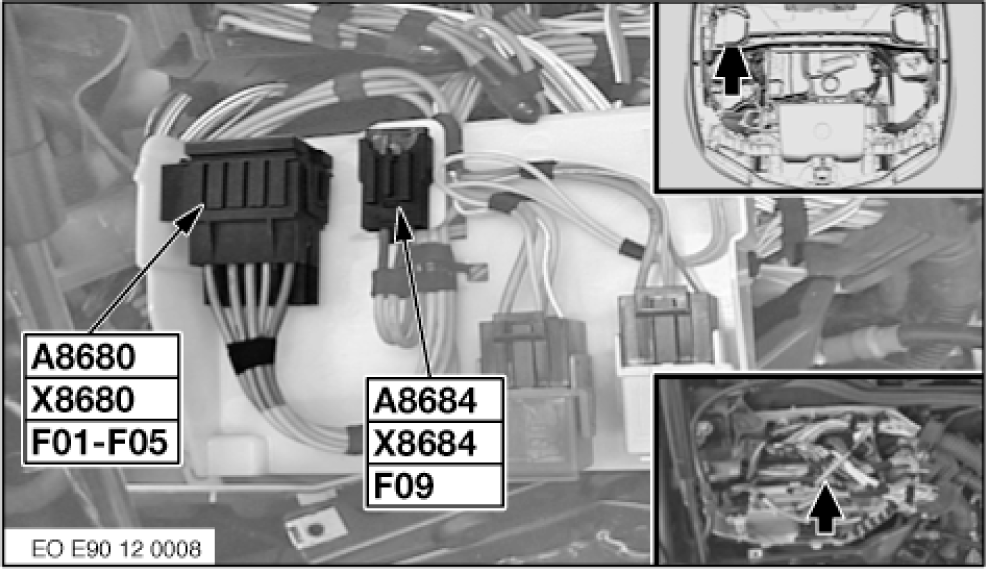

| Fuse Carrier - Engine Electronics (A8680) | Right plenum chamber E-box. See Figure. |

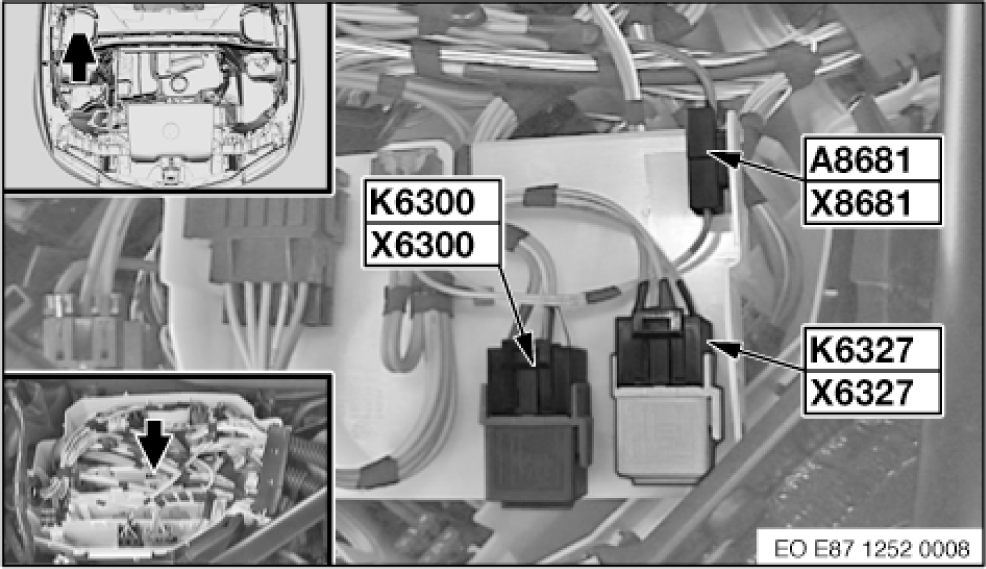

| Fuse Carrier - Motor Electronics (A8681) | Right plenum chamber E-box. See Figure. |
| Fuse Carrier - Motor Electronics (A8684) | Right plenum chamber E-box. See Figure. |

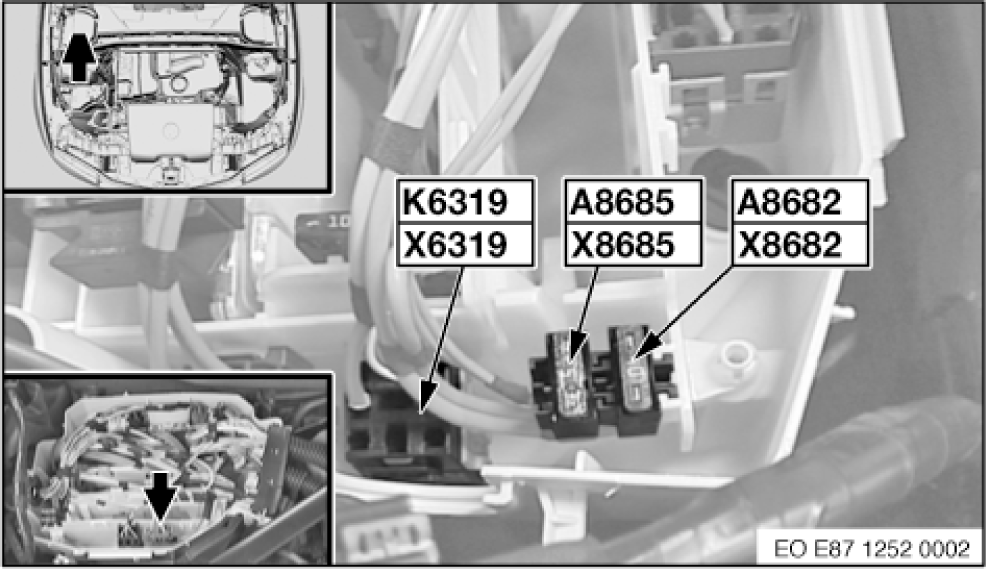

| Fuse Carrier - Motor Electronics (A8685) | Right plenum chamber E-box. See Figure. |
| Junction Box (A4010) | Under right side of dash. See Figure. |
| Junction Box Electronics (A4010a) | Under right side of dash. See Figure. |
| Rear Fuse Holder (A46) | Right side of rear compartment. See Figure. |
