Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: In Junction Box (A4010)

G00459891

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Right Rear Of Engine Compartment

G00459933

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Right Rear Of Engine Compartment

G00459935

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: In Junction Box (A4010)

G00460019

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Under Right Side Of Dash

G00459890

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Right Side Of Rear Compartment

G00459889

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Part Of Accelerator Pedal

G00459862

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Center Of Front Bumper

G00459873

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Under Left Side Of Dash

G00459886

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Right Rear Of Engine Compartment

G00459936

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Under Driver Seat

G00459878

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Under Driver Seat

G00459950

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: In Right Rear Side Interior Panel

G00459894

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Under Vehicle, Near Right Front Wheel

G00459915

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Under Left Side Of Dash

G00459907

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Behind Left Front Wheel

G00459944

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Left Side Of Front Bumper

G00459970

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Front Of Sunroof

G00460018

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Rear Of Center Console

G00459856

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Under Front Passenger Seat

G00459955

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Right Side Of Rear Compartment

G00459984

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Under Carpet, On Right Side Footwell

G00459938

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Left Side Of Rear Compartment

G00459971

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Behind Right Front Wheel

G00459909

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Under Vehicle

G00459939

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Front Of Roof

G00459973

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Right Side Of Engine

G00459991

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: On Rear Compartment Lid

G00459847

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Right Rear Side Interior Panel

G00459986

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Center Of Dash

G00459920

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Behind Rear Seats, Center Of Rear Window

G00459965

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Rear Compartment Door

G00459972

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 33: Right Front Door

G00459876

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Left Side Of Passenger Seat Back

G00459883

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Under Passenger Seat, On Track

G00459954

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Right Rear Door

G00459877

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Under Passenger Seat, On Track

G00459956

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Center Of Dash

G00459919

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Under Vehicle

G00459969

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 40: Left Rear Side Interior Panel

G00459988

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 41: Left Side Of Rear Compartment

G00459975

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 42: Center Of Dash

G00459921

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 43: Right Side Of Dash

G00459922

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 44: Behind Steering Wheel

G00459872

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 45: Under Right Rear Seat

G00459850

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 46: Behind Right Front Wheel

G00459908

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 47: Rear Of Engine

G00459995

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 48: Left Front Door

G00459875

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 49: Under Driver Seat

G00459952

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 50: Right Side Of Driver Seat Back

G00459882

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 51: Under Driver Seat

G00459951

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 52: Under Driver Seat

G00459953

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 53: Left Rear Door

G00459874

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 54: Left Rear Of Engine Compartment

G00459968

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 55: Center Of Dash

G00459917

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 56: Under Vehicle

G00459914

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 57: Top Center Of Dash

G00459924

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 58: Right Side Of Engine Compartment

G00459940

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 59: Right Side Of Engine Compartment

G00459999

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 60: Behind Right Rear Wheel

G00459864

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 61: Front Of Right Rear Wheel

G00459870

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 62: Rear Of Right Front Door

G00459978

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 63: Right Rear Side Of Interior Panel

G00459985

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 64: Front Of Right Rear Wheel

G00459966

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 65: Center Of Windshield

G00459884

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 66: Left Side Of Engine

G00460014

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 67: Right Side Of Engine

G00459990

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 68: Right Rear Of Engine

G00459996

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 69: Right Side Of Engine

G00460013

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 70: Front Center Of Bumper

G00459899

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 71: Rear Of Engine, Near Transmission

G00459994

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 72: Left Side Of Engine

G00460016

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 73: Under Left Rear Seat

G00459942

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 74: Behind Left Rear Wheel

G00459865

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 75: Front Of Left Front Door

G00459977

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 76: Behind Left Front Wheel

G00459867

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 77: Left Side Of Engine Compartment

G00459941

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 78: Left Rear Side Of Interior Panel

G00459987

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 79: Top Rear Of Engine

G00460005

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 80: Front Of Right Front Wheel

G00459866

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 81: Behind Left Front Wheel

G00459967

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 82: Front Of Left Front Wheel

G00459863

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 83: Top Of Engine

G00460004

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 84: Rear Of Engine

G00460008

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 85: Top Of Engine

G00460015

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 86: Right Front Of Engine Compartment

G00459961

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 87: Rear Of Engine

G00460009

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 88: Front Of Engine

G00459992

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 89: Right Side Of Rear Compartment

G00459910

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 90: Right Rear Of Engine Compartment

G00459916

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 91: Left Side Of Engine

G00460001

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 92: Left Side Of Engine Compartment

G00459962

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 93: Top Of Engine

G00459993

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 94: Top Of Engine

G00460010

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 95: Top Of Engine

G00460011

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 96: Left Side Of Rear Compartment

G00459934

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 97: Left Side Of Engine

G00459998

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 98: Under Starter

G00459945

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 99: Under Shifter, In Center Console

G00459853

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 100: Right End Of Dash, Near Right Front Door

G00459943

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 101: Left Rear Of Engine Compartment

G00459897

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 102: Under Left Side Of Dash

G00459861

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 103: Under Left Side Of Dash

G00459860

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 104: Center Of Rear Compartment

G00459989

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 105: Under Left Side Of Dash

G00459926

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 106: Left Side Of Rear Compartment

G00459931

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 107: Left Side Of Rear Compartment

G00459976

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 108: Left Side Of Driver Seat Back

G00459880

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 109: In Driver Seat Back

G00459881

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 110: Part Of Seat Belt Buckle Assembly

G00459859

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 111: Left Rear Side Of Interior Panel

G00459895

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 112: Center Of Rear Compartment

G00459928

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 113: Rear Of Center Console

G00459911

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 114: Right Side Of Engine Compartment

G00459896

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 115: Left Headliner

G00459855

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 116: Behind Left Rear Wheel

G00459979

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 117: Top Right Side Of Dash

G00459858

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 118: Right Side Of Passenger Seat Back

G00459879

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 119: Under Vehicle

G00459982

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 120: Left Side Of Rear Window Panel

G00459927

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 121: Left Side Of Rear Window Panel

G00459849

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 122: Right Front Wheel (Left Similar)

G00459949

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 123: Front Of Right Front Wheelwell (Left Similar)

G00459983

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 124: Right Headliner

G00459854

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 125: Right Rear Wheel (Left Similar)

G00459948

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 126: Rear Of Right Wheelwell (Left Side Similar)

G00459981

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 127: Left Side Of Rear Compartment

G00459930

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 128: Left Side Of Rear Compartment

G00459925

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 129: Under Left Of Dash

G00459901

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 130: Right Side Of Dash

G00459902

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 131: Right Side Of Dash

G00459903

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 132: Right Side Of Dash

G00459904

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 133: Right Side Of Dash

G00459905

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 134: Left Side Of Center Console

G00459958

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 135: Right Side Of Center Console

G00459960

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 136: Top Right Side Of Dash

G00459857

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 137: Under Left Side Of Dash

G00459887

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 138: Under Left Side Of Dash

G00459893

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 139: Under Right Side Of Dash

G00459906

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 140: Under Right Side Of Dash

G00459912

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 141: Under Left Side Of Dash

G00459957

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 142: Under Left Rear Seat

G00459963

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 143: Under Left Side Of Dash

G00459964

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 144: Right Side Of Rear Compartment

G00459888

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 145: Left Side Of Engine Compartment

G00459898

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 146: Right Rear Of Engine Compartment

G00459937

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 147: Top Of Engine

G00460012

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 148: Right Side Of Rear Compartment

G00459900

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 149: Left Side Of Rear Compartment

G00459929

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 150: Left Side Of Windshield

G00460017

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 151: Front Center Of Roof

G00459974

Courtesy of BMW OF NORTH AMERICA, INC.

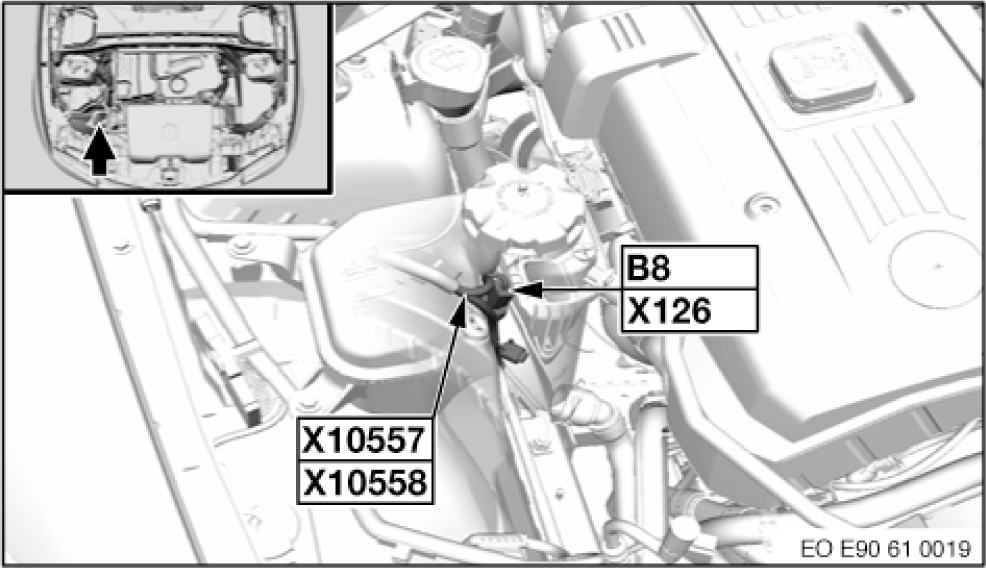

Fig 152: Engine Compartment

G00476427

Courtesy of BMW OF NORTH AMERICA, INC.

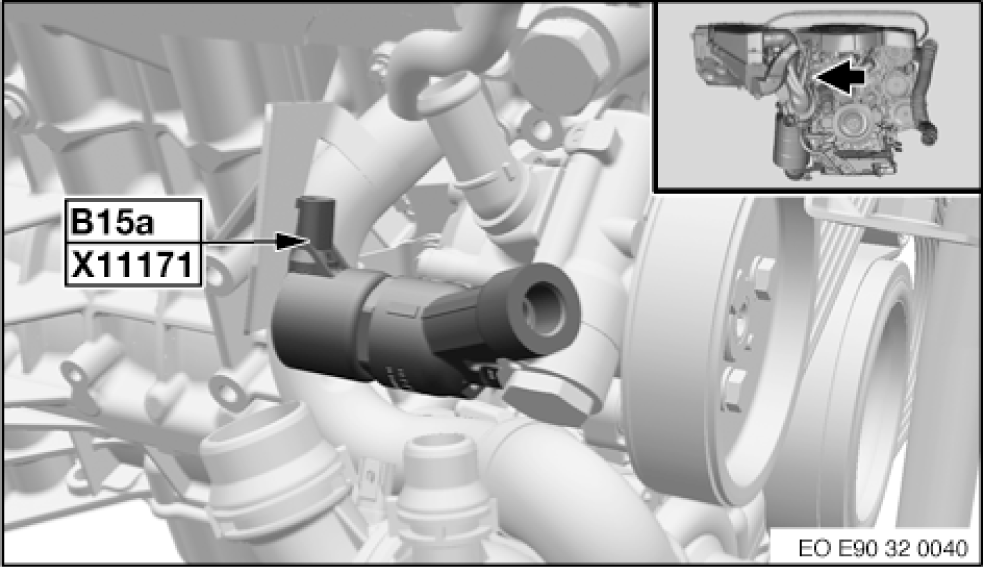

Fig 153: Front Of Engine

G00476428

Courtesy of BMW OF NORTH AMERICA, INC.

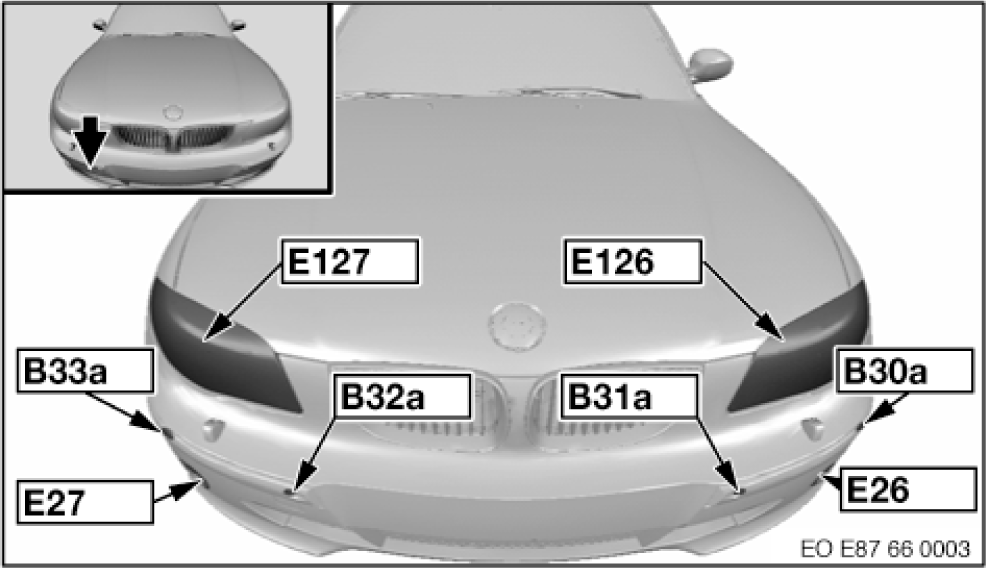

Fig 154: Front Bumper

G00476429

Courtesy of BMW OF NORTH AMERICA, INC.

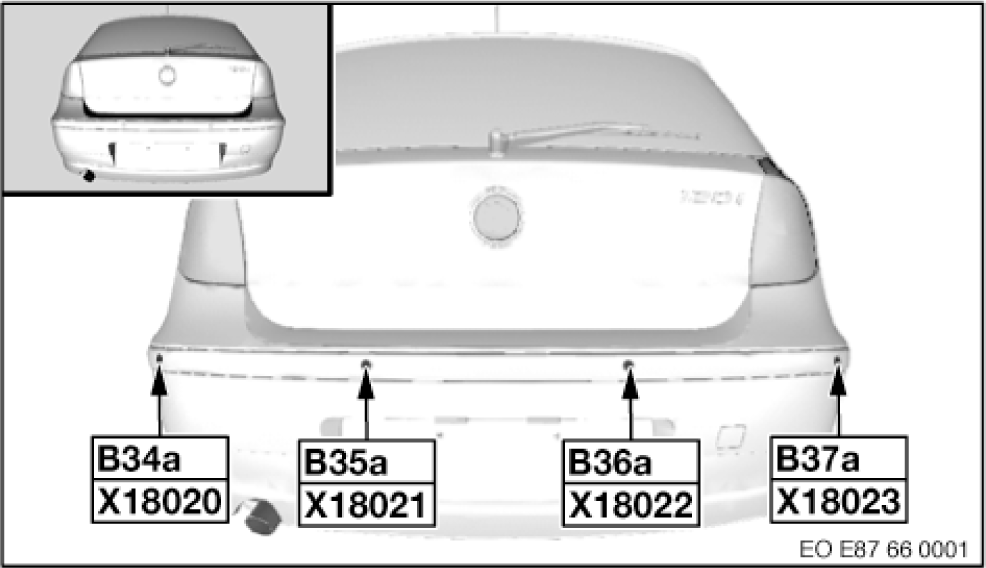

Fig 155: Rear Bumper

G00476430

Courtesy of BMW OF NORTH AMERICA, INC.

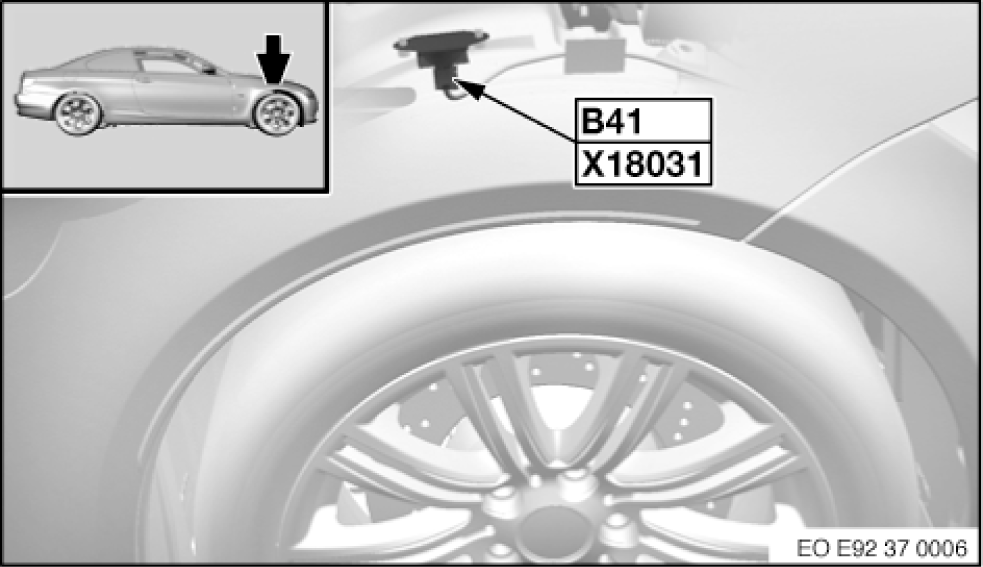

Fig 156: Right Front Wheelwell (Left Similar)

G00476431

Courtesy of BMW OF NORTH AMERICA, INC.

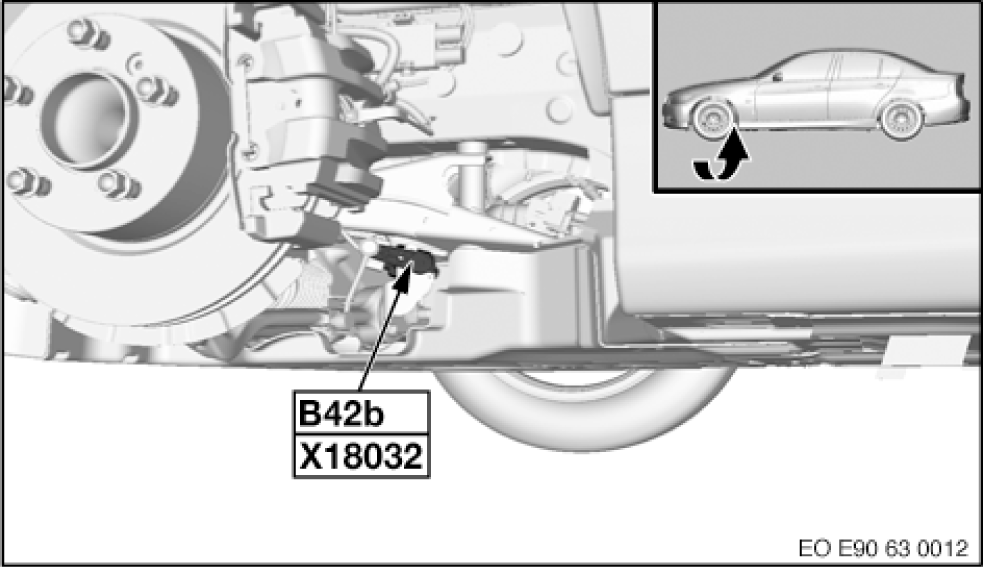

Fig 157: Left Front Wheelwell

G00476432

Courtesy of BMW OF NORTH AMERICA, INC.

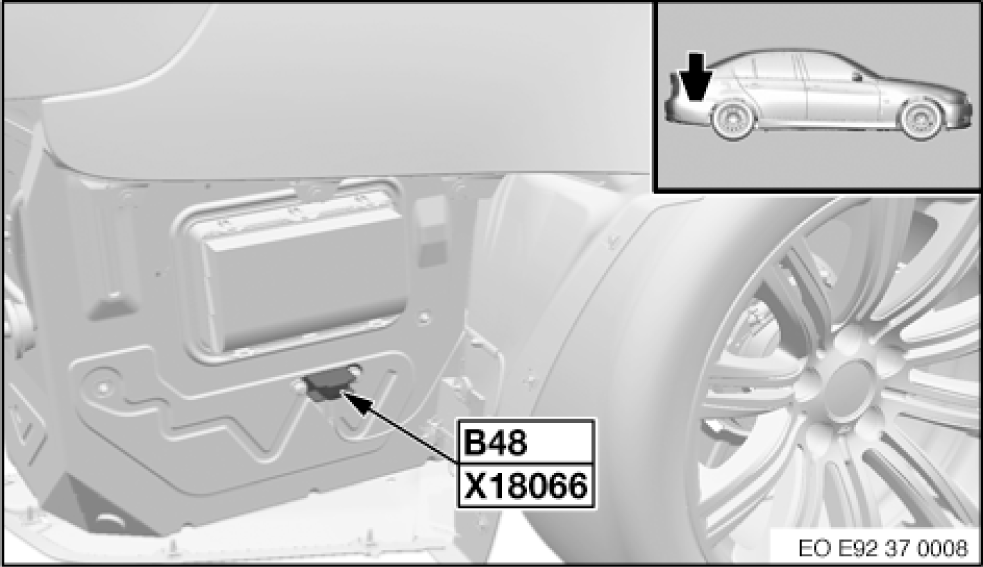

Fig 158: Behind Right Rear Wheelwell

G00476433

Courtesy of BMW OF NORTH AMERICA, INC.

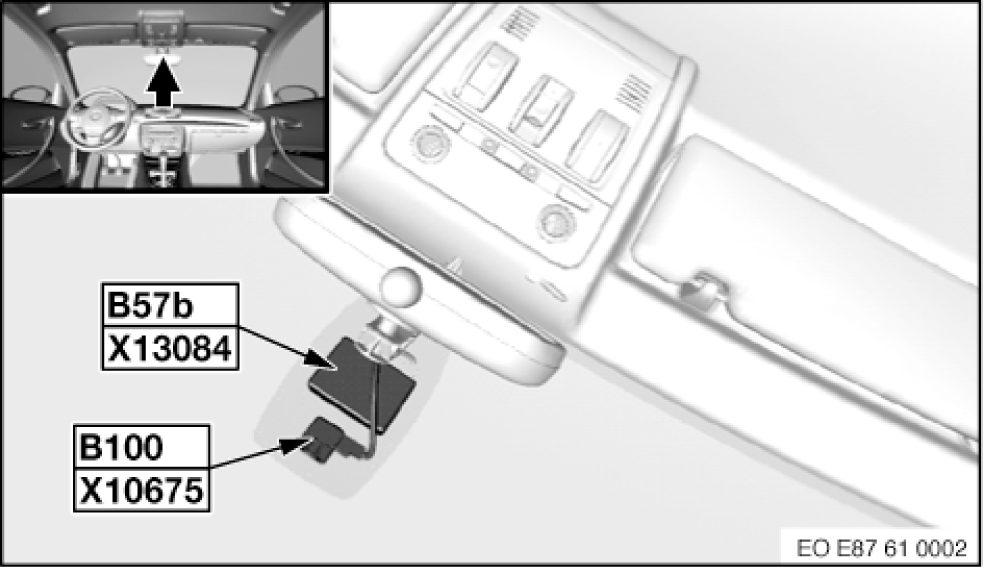

Fig 159: Top Center Of Windshield

G00476434

Courtesy of BMW OF NORTH AMERICA, INC.

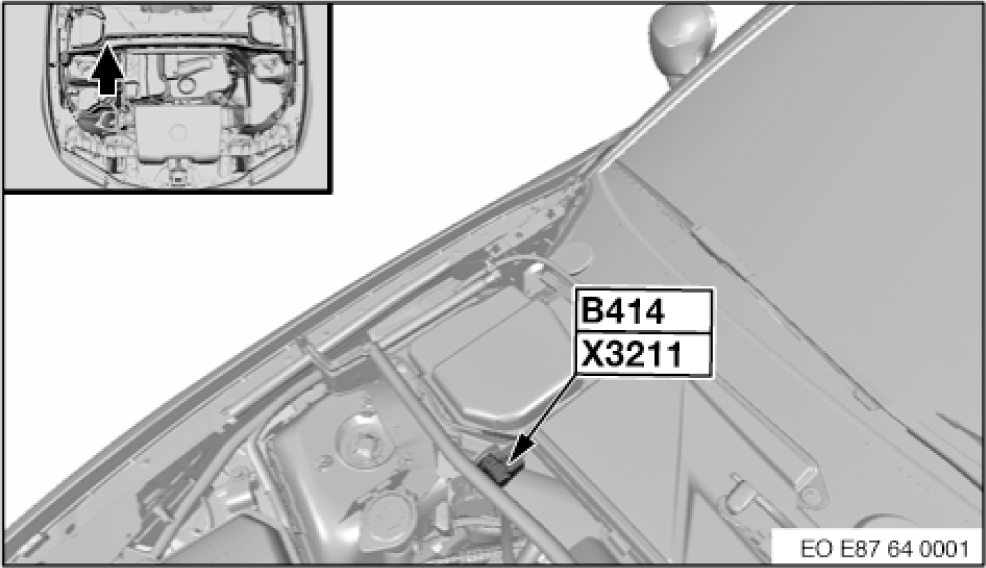

Fig 160: Engine Compartment

G00476435

Courtesy of BMW OF NORTH AMERICA, INC.

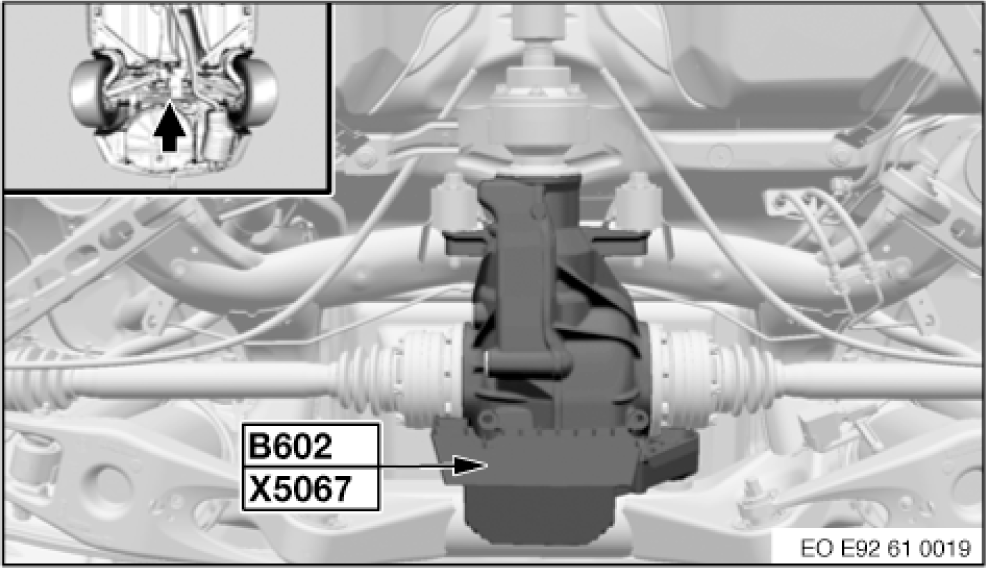

Fig 161: Under Rear Of Vehicle

G00476436

Courtesy of BMW OF NORTH AMERICA, INC.

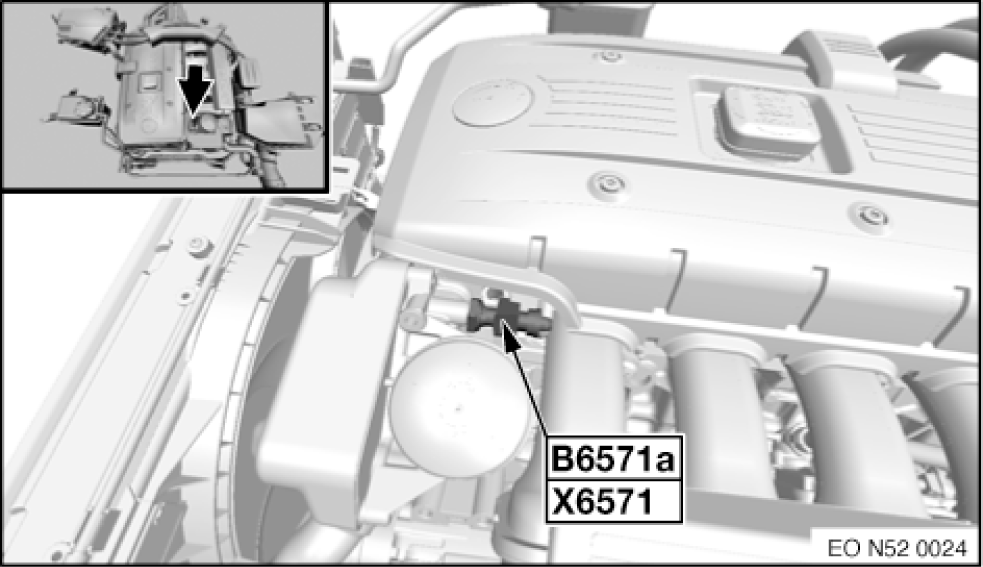

Fig 162: Top Of Engine

G00476437

Courtesy of BMW OF NORTH AMERICA, INC.

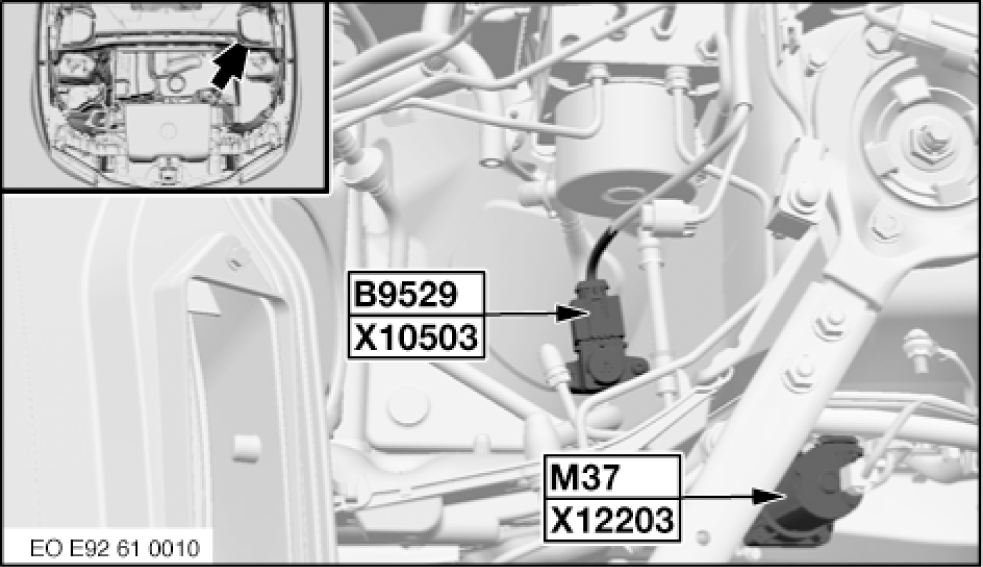

Fig 163: Engine Compartment

G00476438

Courtesy of BMW OF NORTH AMERICA, INC.

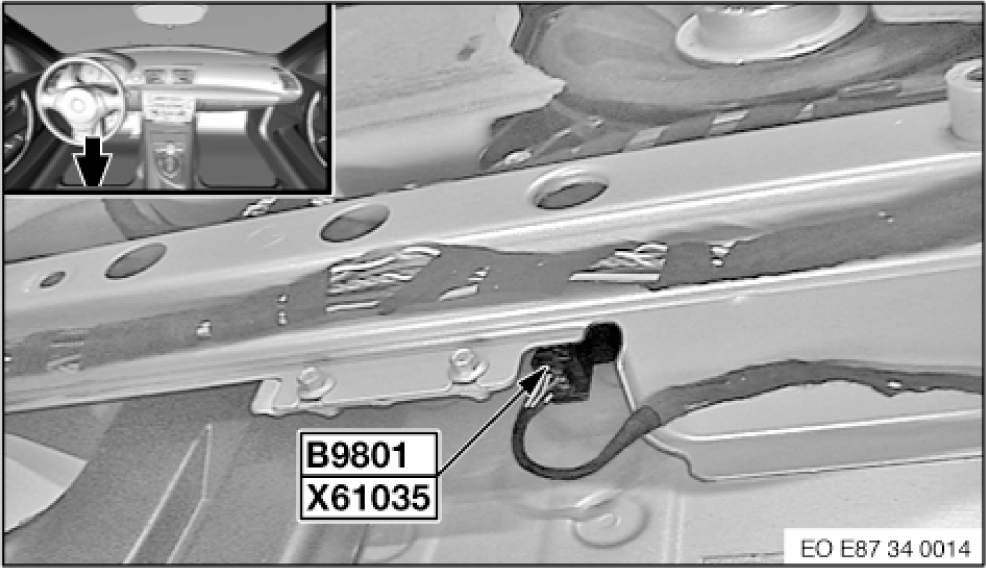

Fig 164: Under Driver's Seat

G00476439

Courtesy of BMW OF NORTH AMERICA, INC.

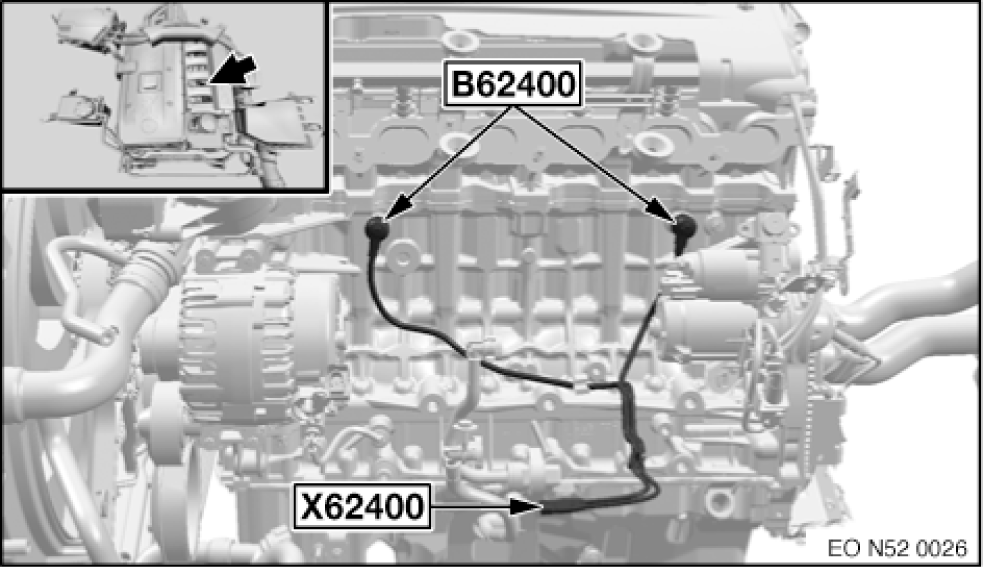

Fig 165: Left Side Of Engine

G00476440

Courtesy of BMW OF NORTH AMERICA, INC.

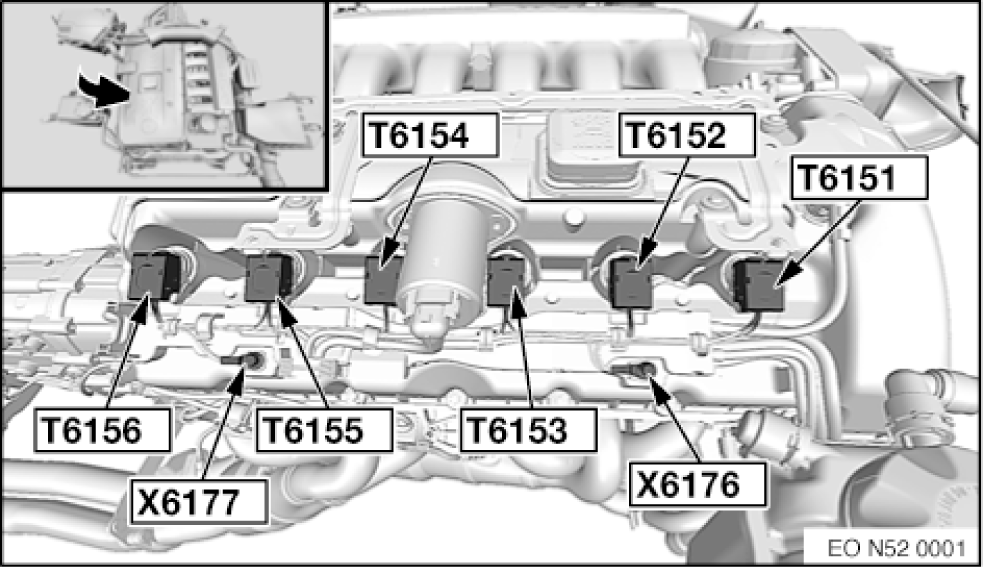

Fig 166: Top Of Engine

G00476441

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 167: Center Console

G00476442

Courtesy of BMW OF NORTH AMERICA, INC.

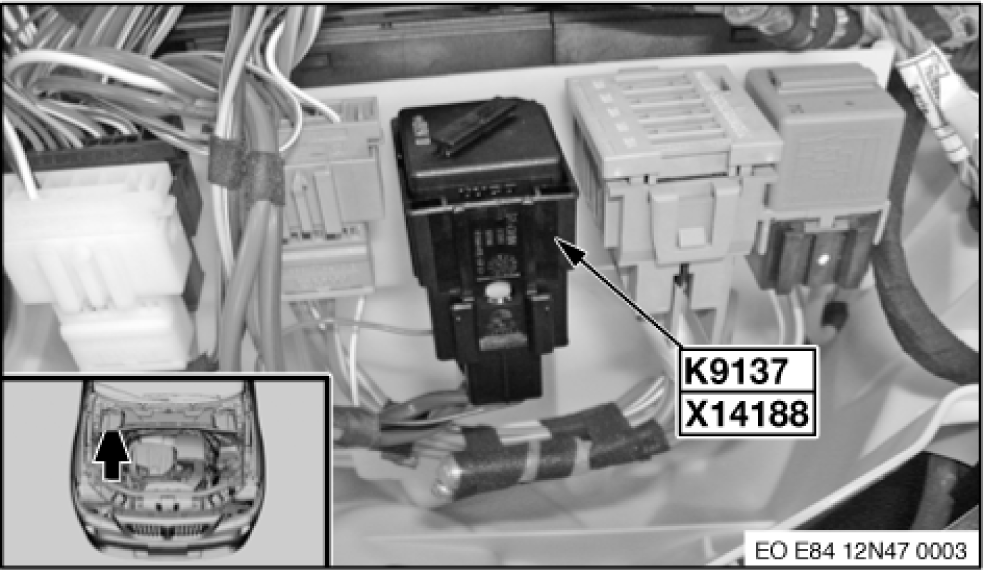

Fig 168: Center Front Of Roof

G00476443

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 169: Left Quarterpanel

G00476444

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 170: Rear Of Passenger Compartment

G00476445

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 171: Front Passenger's Seat

G00476446

Courtesy of BMW OF NORTH AMERICA, INC.

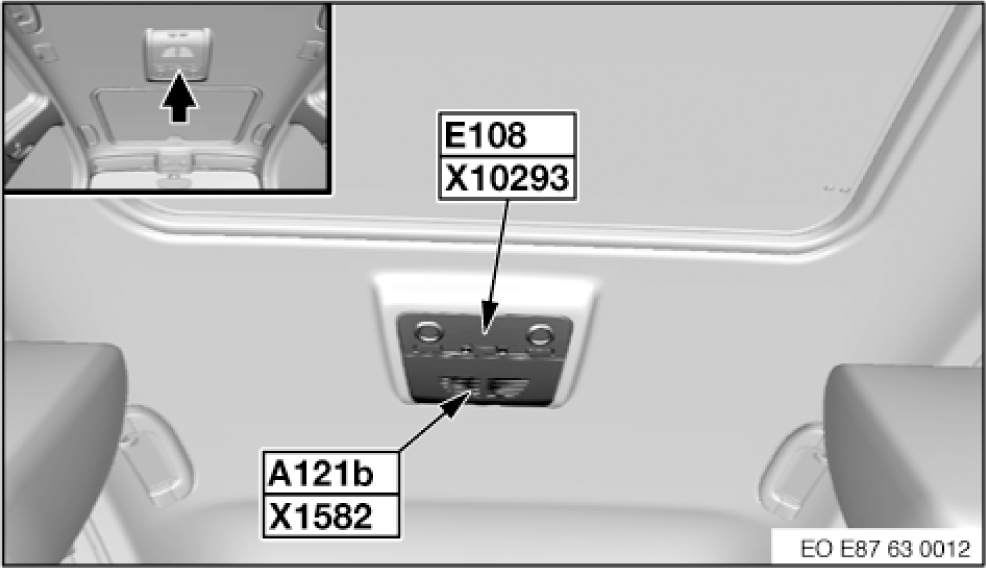

Fig 172: Interior Of Roof

G00476447

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 173: Under Front Passenger's Seat

G00476449

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 174: Rear Compartment

G00476450

Courtesy of BMW OF NORTH AMERICA, INC.

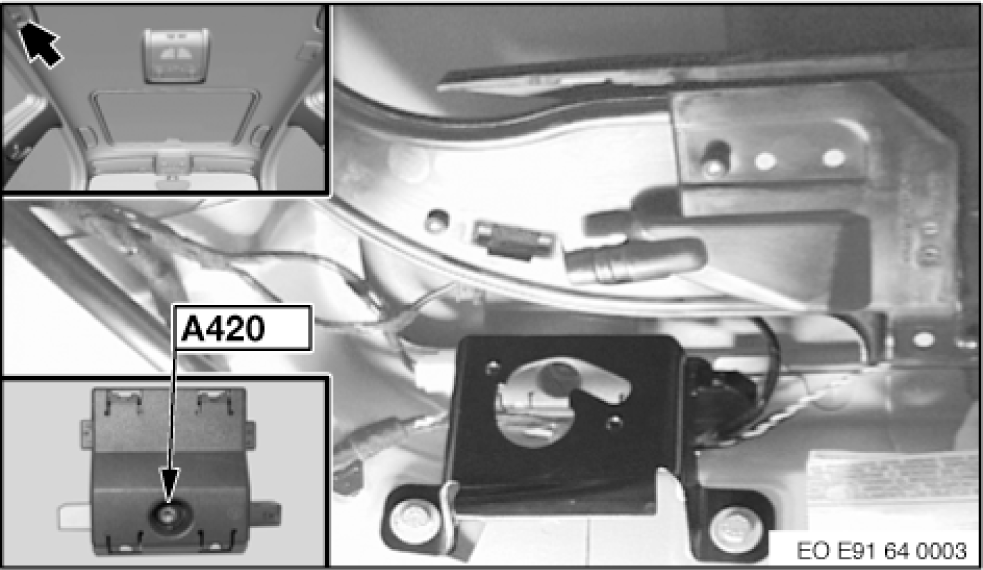

Fig 175: Interior Of Roof

G00476451

Courtesy of BMW OF NORTH AMERICA, INC.

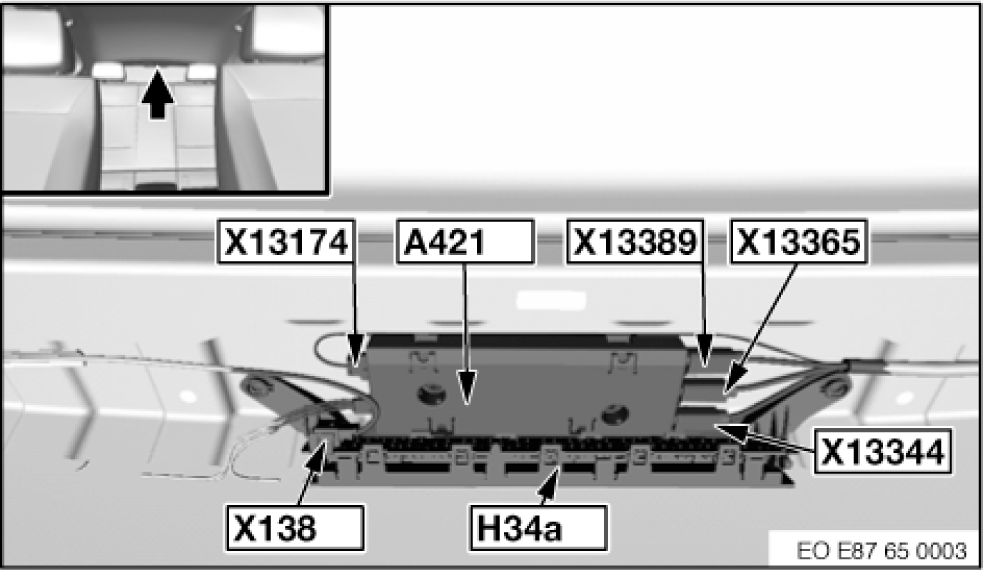

Fig 176: Rear Window

G00476452

Courtesy of BMW OF NORTH AMERICA, INC.

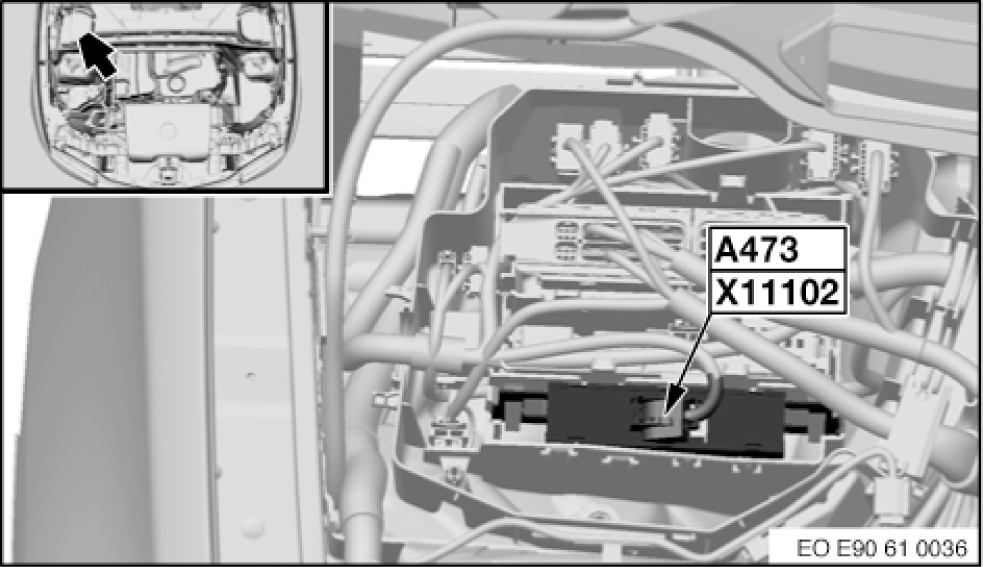

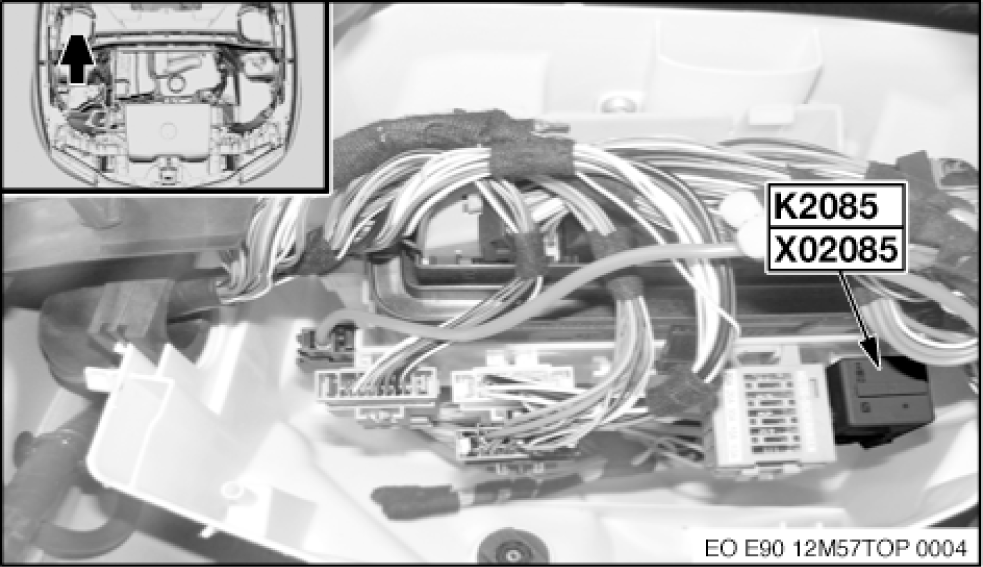

Fig 177: Engine Compartment

G00476453

Courtesy of BMW OF NORTH AMERICA, INC.

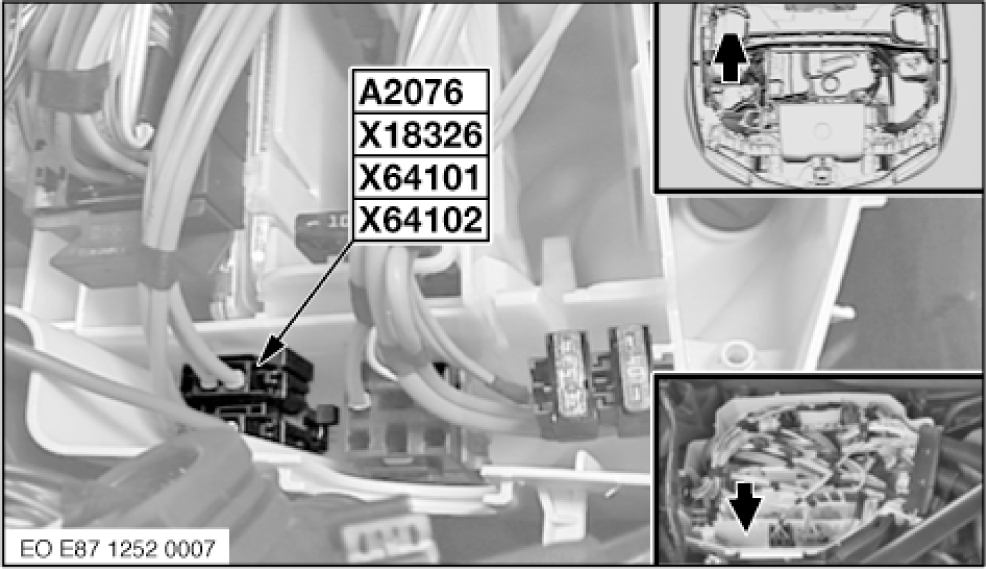

Fig 178: Engine Compartment

G00476454

Courtesy of BMW OF NORTH AMERICA, INC.

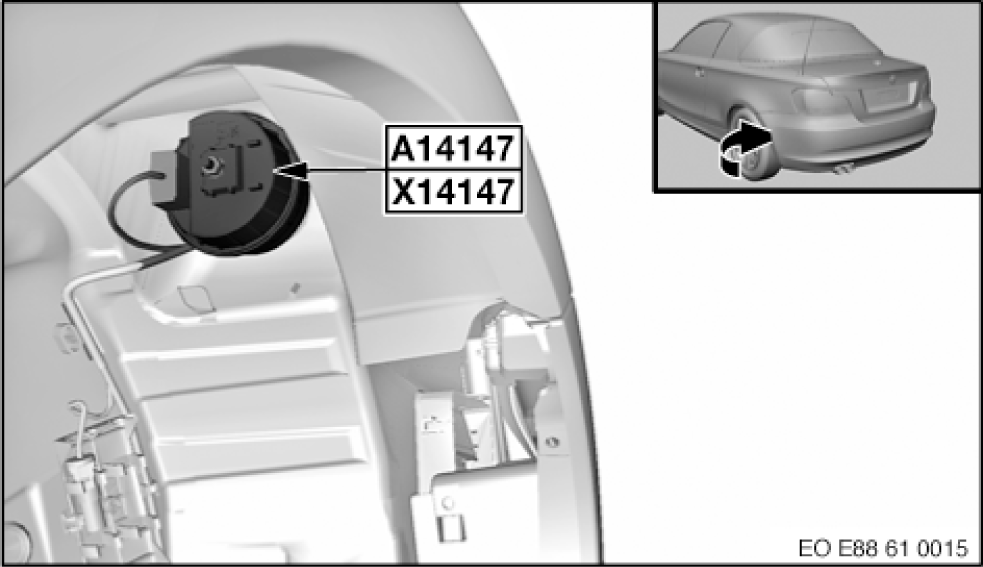

Fig 179: Left Rear Wheelwell

G00476455

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 180: Left Side Of Dash

G00476456

Courtesy of BMW OF NORTH AMERICA, INC.

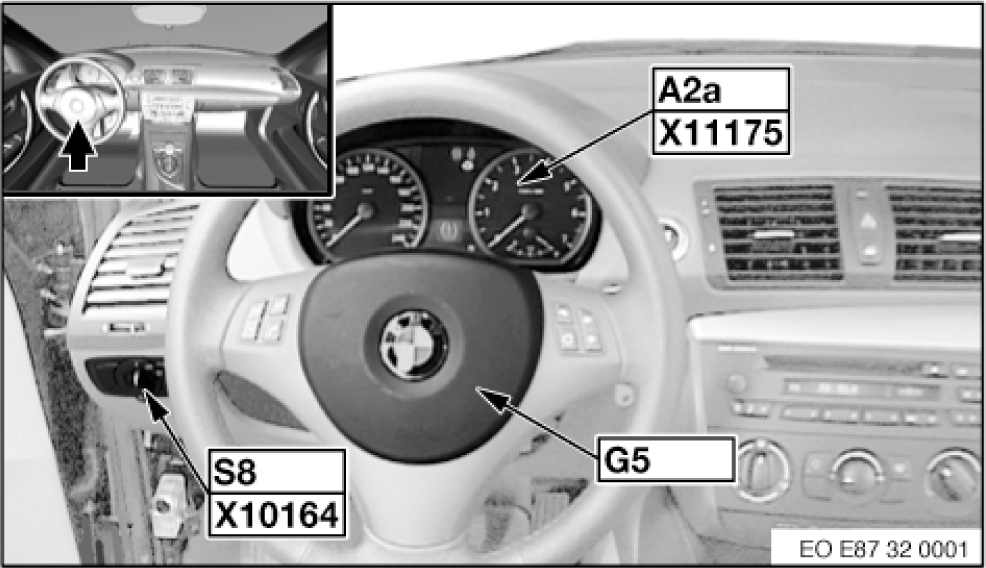

Fig 181: Steering Wheel

G00476457

Courtesy of BMW OF NORTH AMERICA, INC.

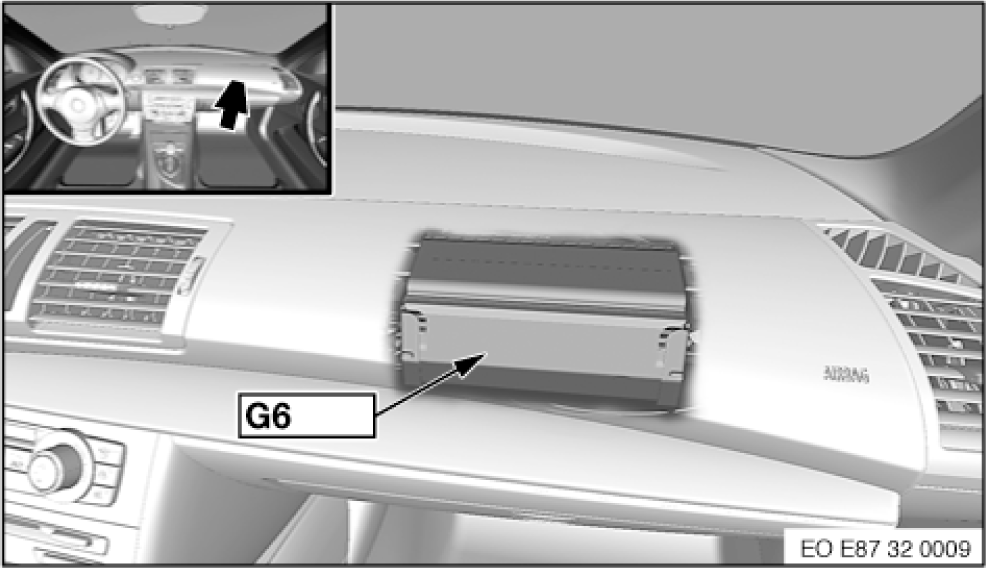

Fig 182: Right Side Of Dash

G00476458

Courtesy of BMW OF NORTH AMERICA, INC.

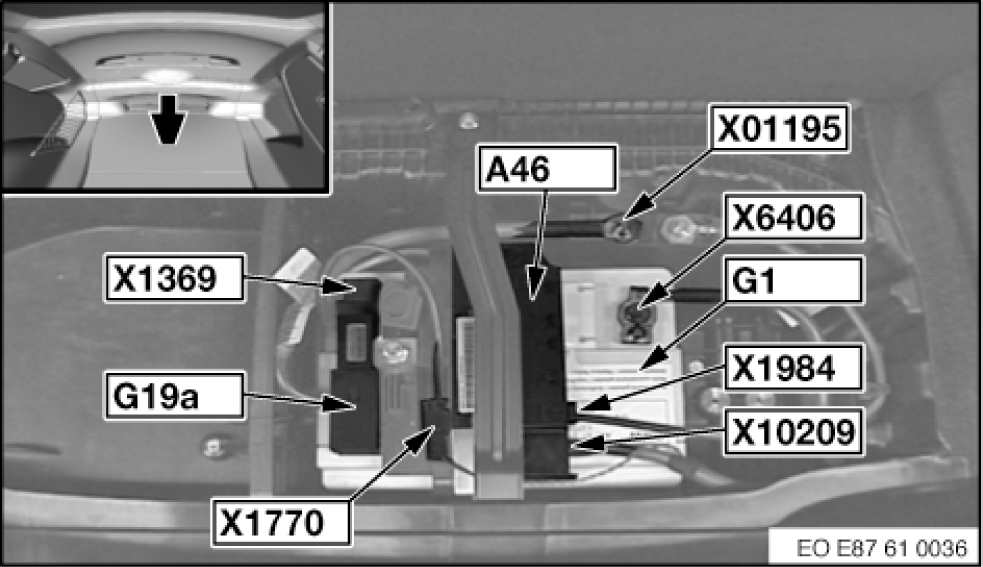

Fig 183: Rear Compartment

G00476459

Courtesy of BMW OF NORTH AMERICA, INC.

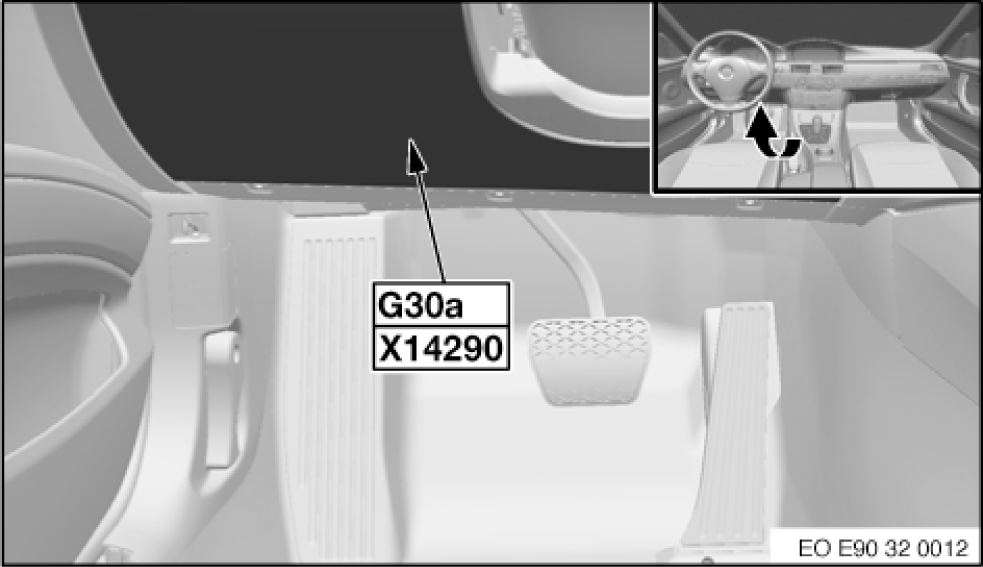

Fig 184: Left Side Of Dash

G00476460

Courtesy of BMW OF NORTH AMERICA, INC.

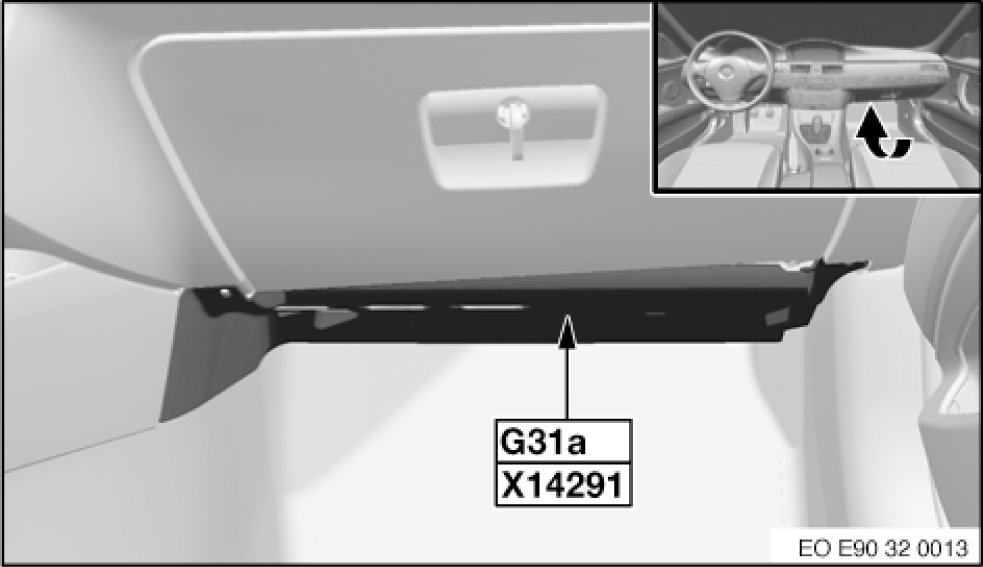

Fig 185: Right Side Of Dash

G00476461

Courtesy of BMW OF NORTH AMERICA, INC.

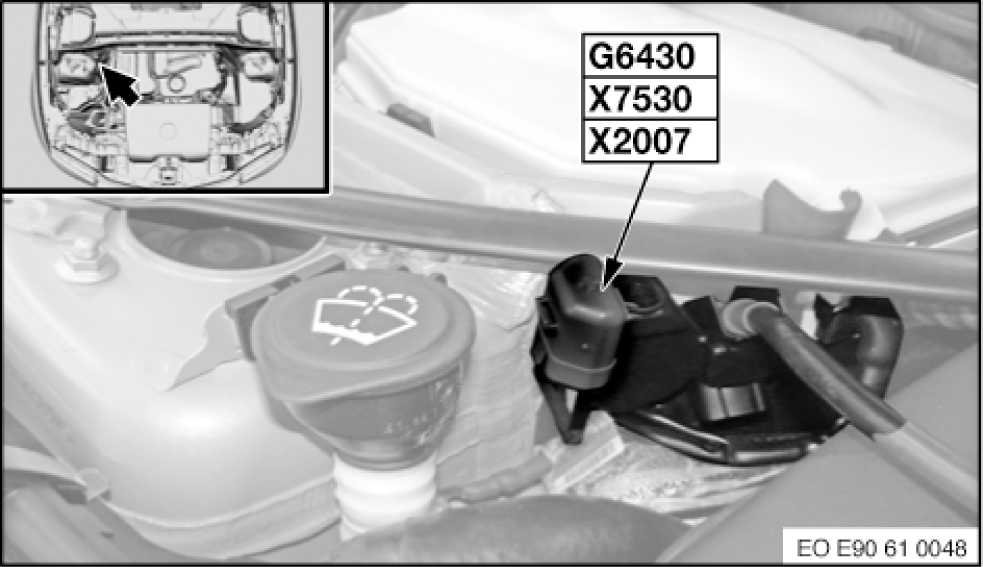

Fig 186: Engine Compartment

G00476462

Courtesy of BMW OF NORTH AMERICA, INC.

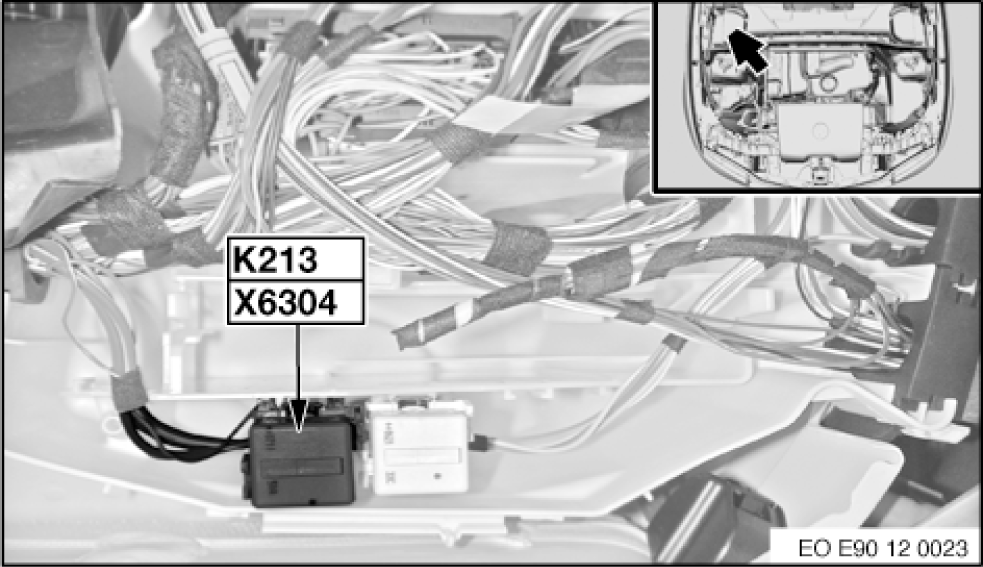

Fig 187: Engine Compartment

G00476463

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 188: Engine Compartment

G00476464

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 189: Engine Compartment

G00476465

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 190: Engine Compartment

G00476466

Courtesy of BMW OF NORTH AMERICA, INC.

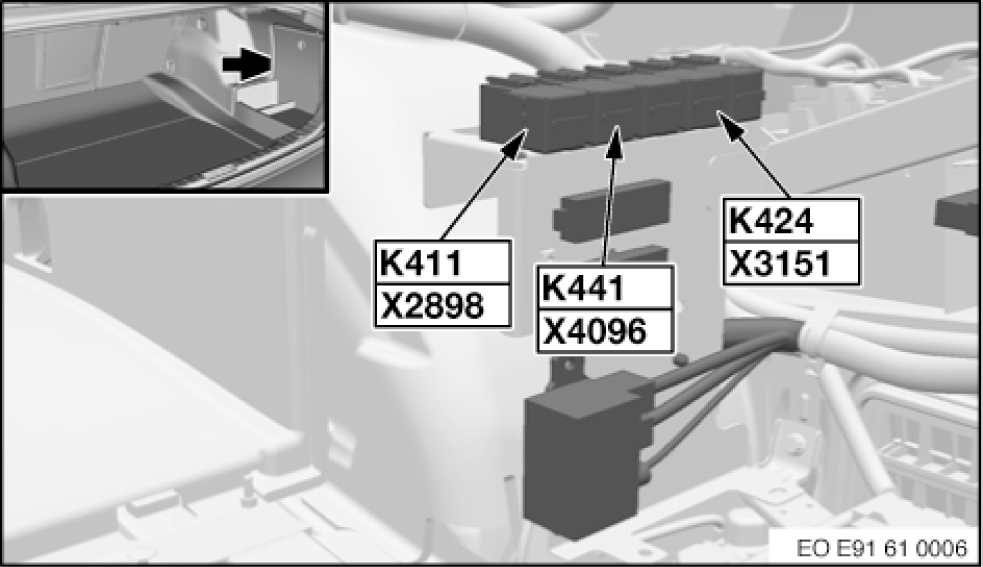

Fig 191: Rear Compartment

G00476467

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 192: Engine Compartment

G00476468

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 193: Engine Compartment

G00476469

Courtesy of BMW OF NORTH AMERICA, INC.

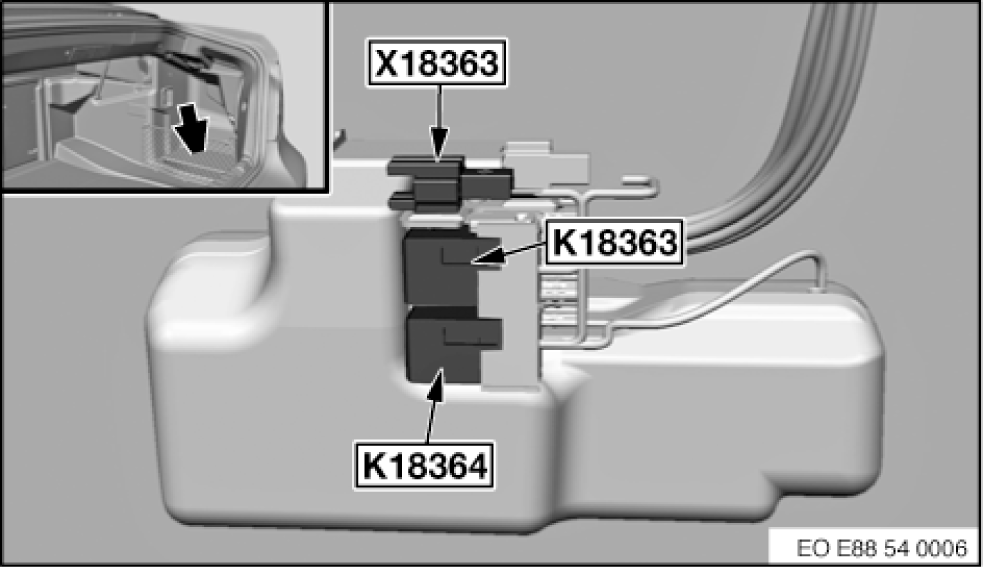

Fig 194: Rear Compartment

G00476470

Courtesy of BMW OF NORTH AMERICA, INC.

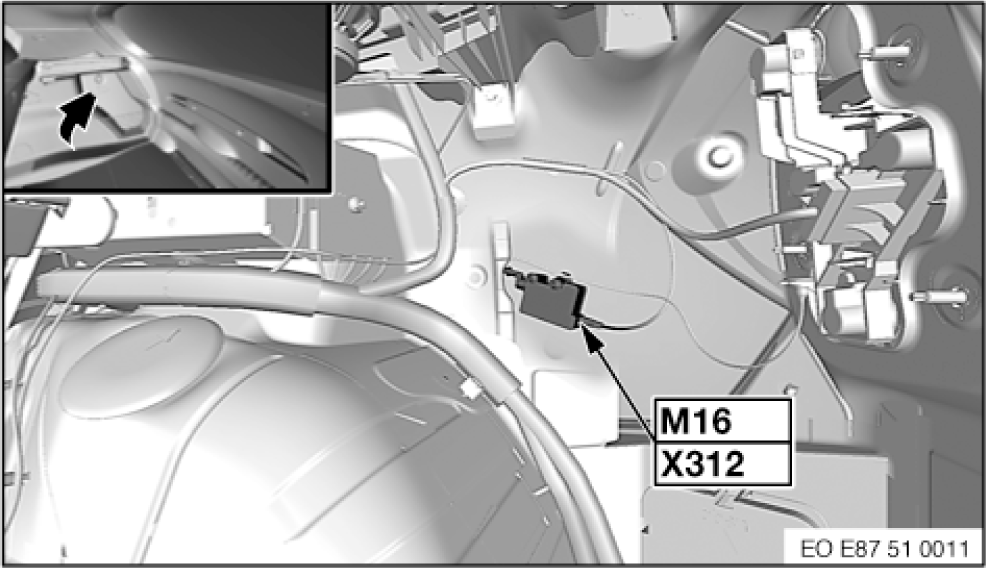

Fig 195: Rear Compartment

G00476471

Courtesy of BMW OF NORTH AMERICA, INC.

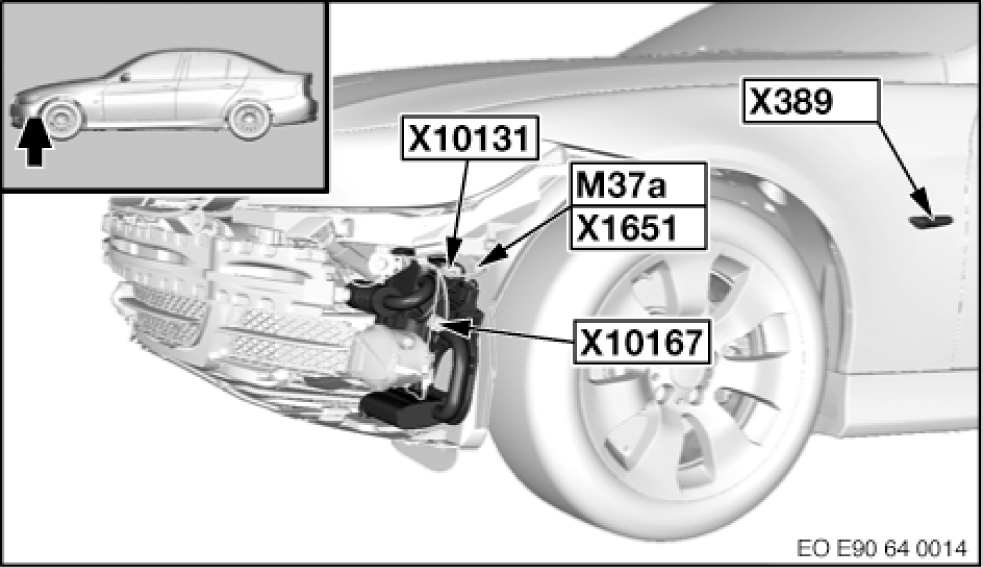

Fig 196: Front Bumper

G00476472

Courtesy of BMW OF NORTH AMERICA, INC.

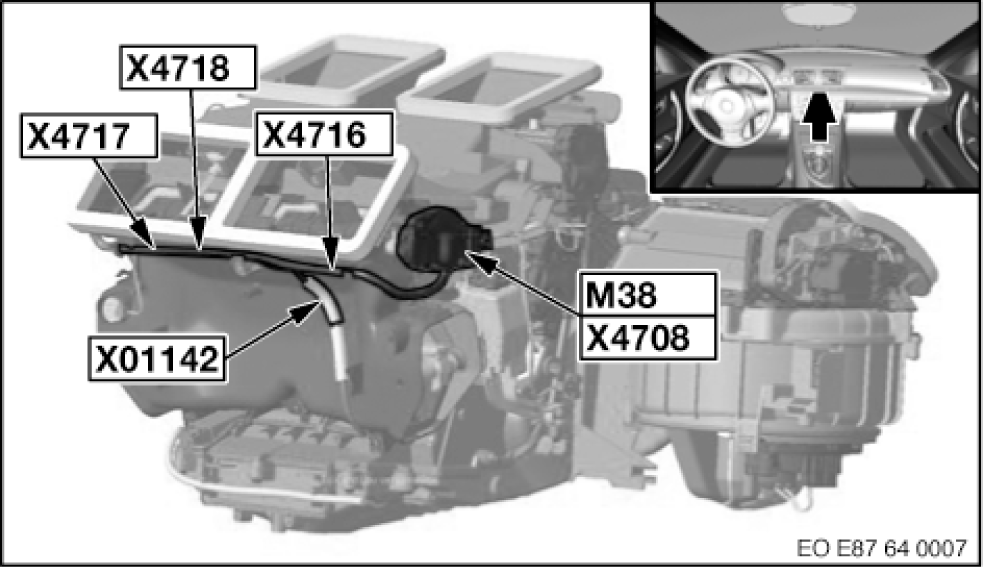

Fig 197: Right Side Of Dash

G00476473

Courtesy of BMW OF NORTH AMERICA, INC.

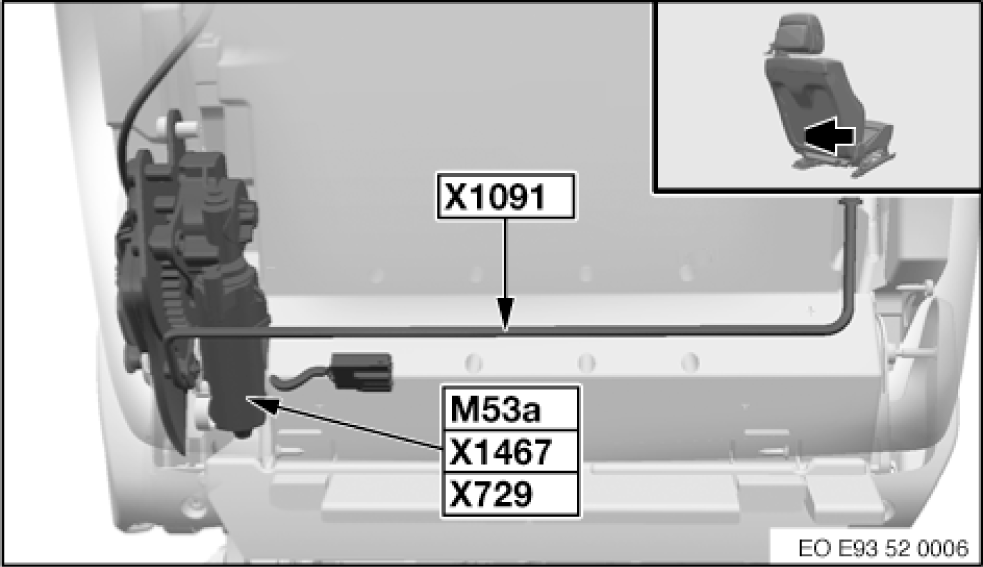

Fig 198: Driver's Seat

G00476474

Courtesy of BMW OF NORTH AMERICA, INC.

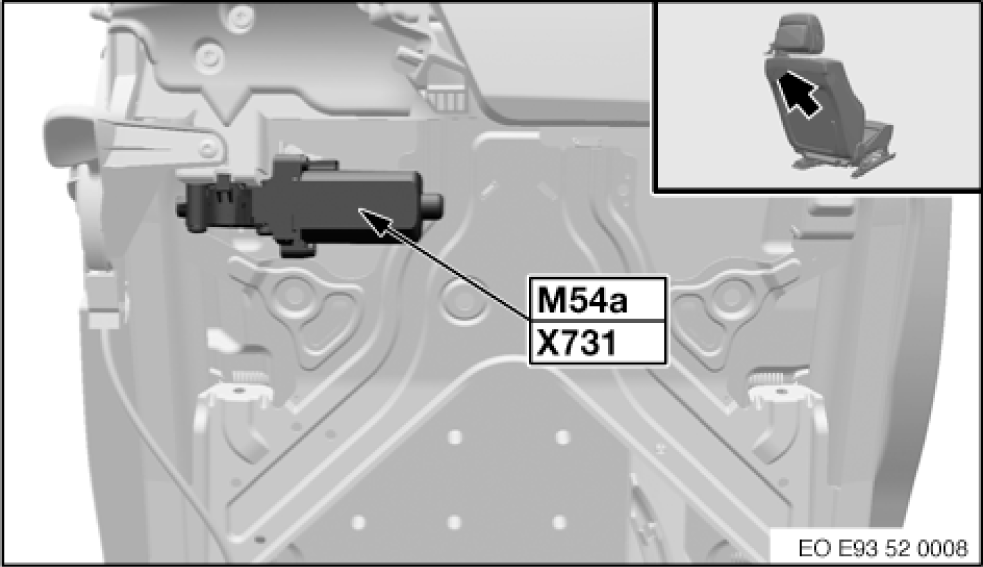

Fig 199: Driver's Seat

G00476475

Courtesy of BMW OF NORTH AMERICA, INC.

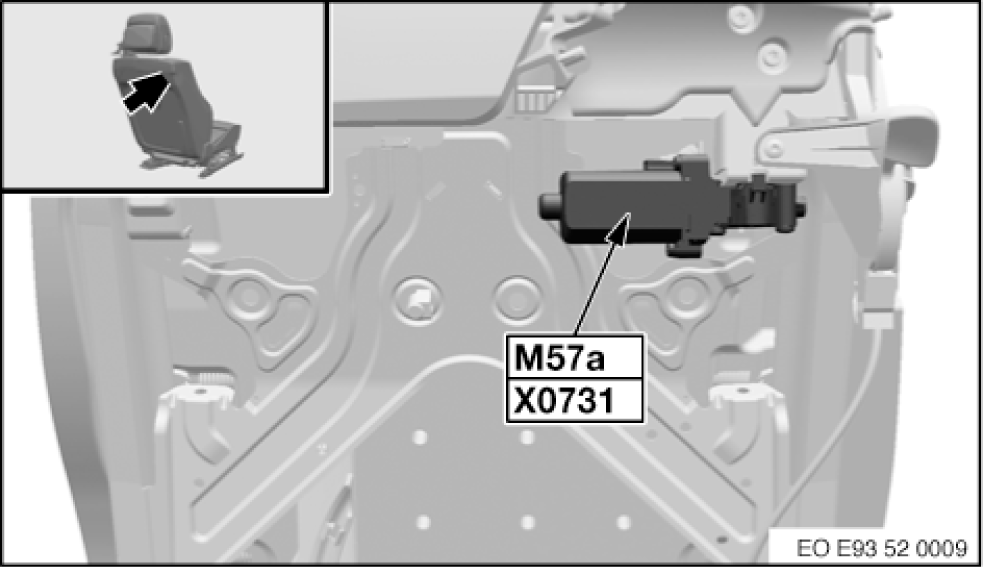

Fig 200: Front Passenger's Seat

G00476476

Courtesy of BMW OF NORTH AMERICA, INC.

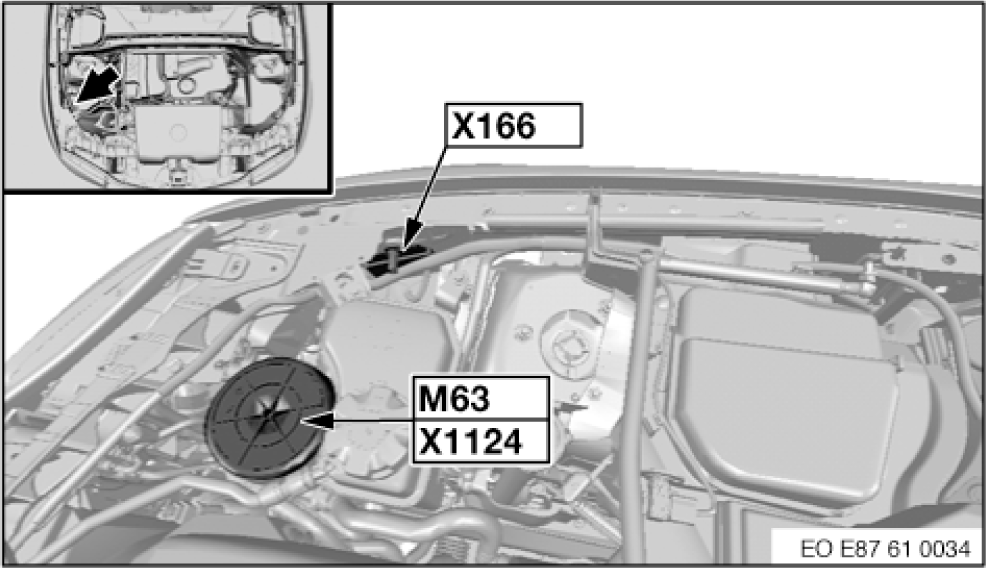

Fig 201: Engine Compartment

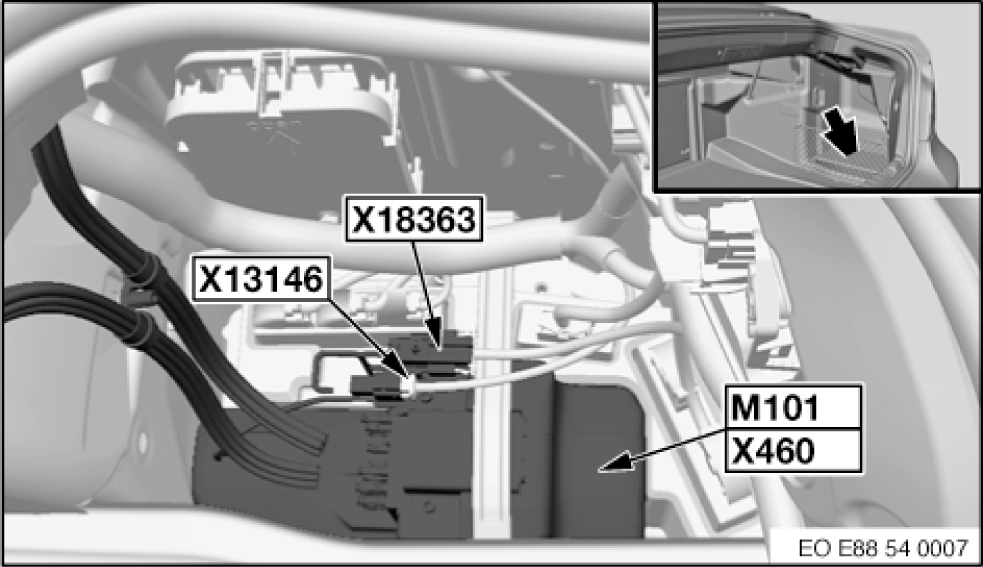

G00476477

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 202: Rear Compartment

G00476478

Courtesy of BMW OF NORTH AMERICA, INC.

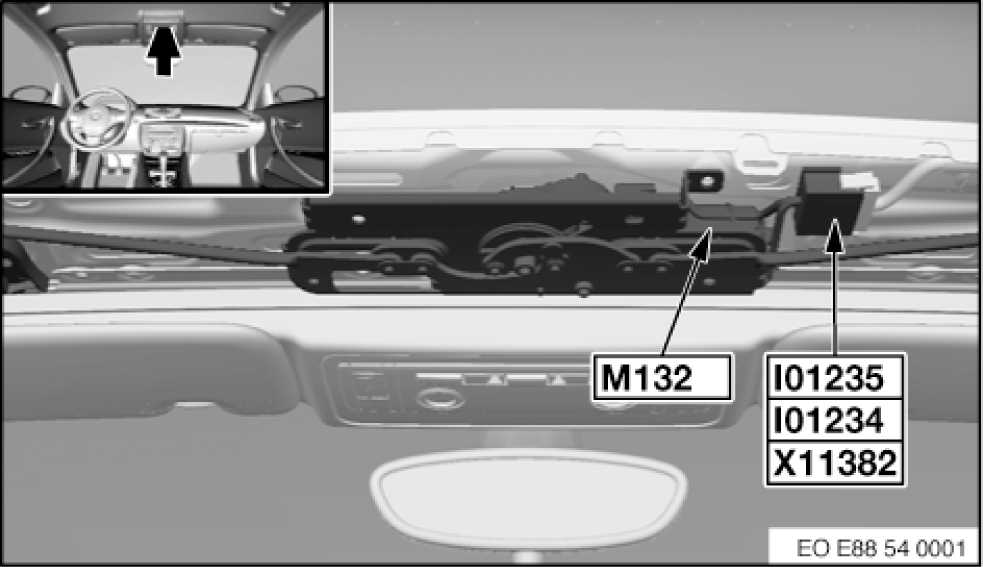

Fig 203: Interior Of Roof

G00476479

Courtesy of BMW OF NORTH AMERICA, INC.

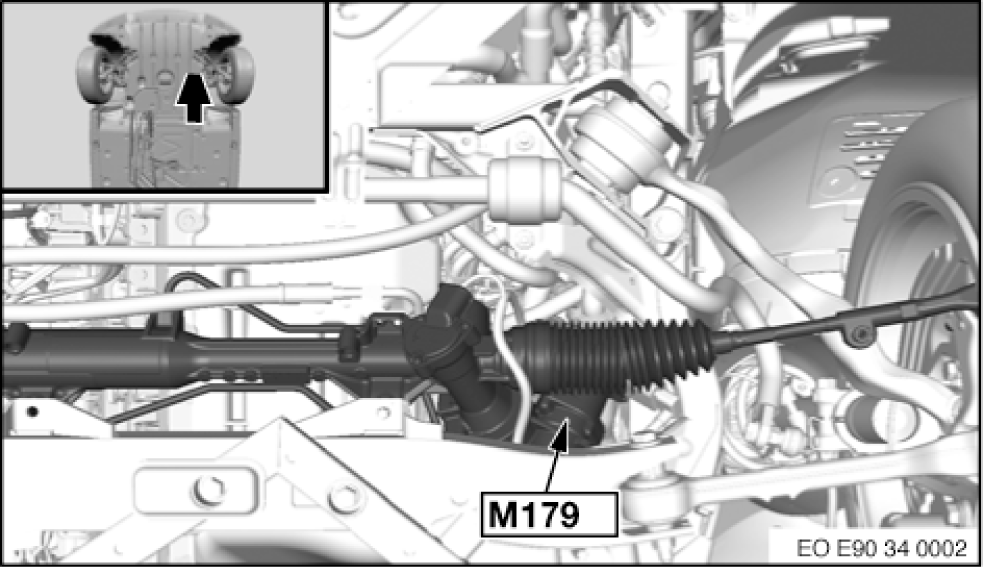

Fig 204: Under Front Of Vehicle

G00476480

Courtesy of BMW OF NORTH AMERICA, INC.

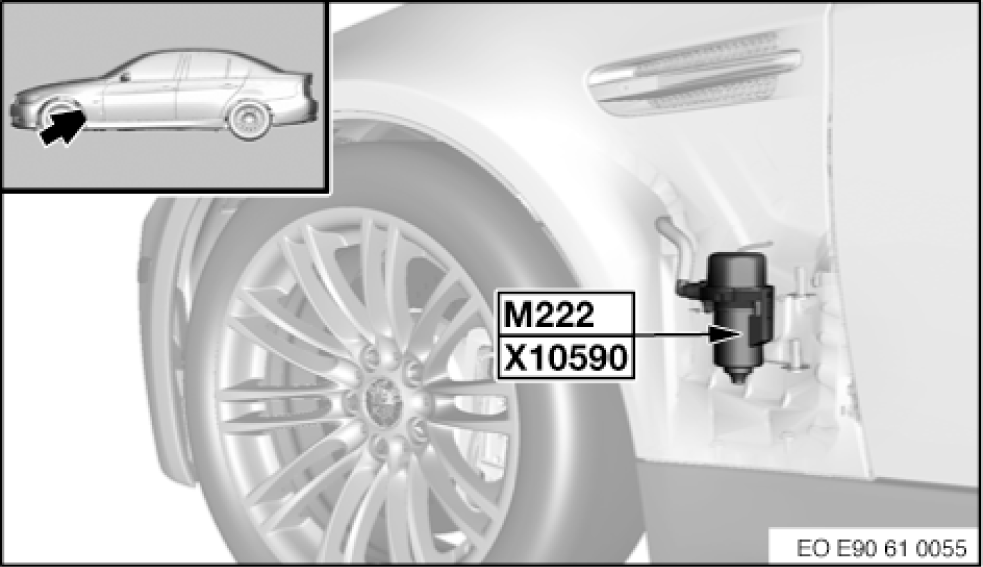

Fig 205: Left Front Wheelwell

G00495707

Courtesy of BMW OF NORTH AMERICA, INC.

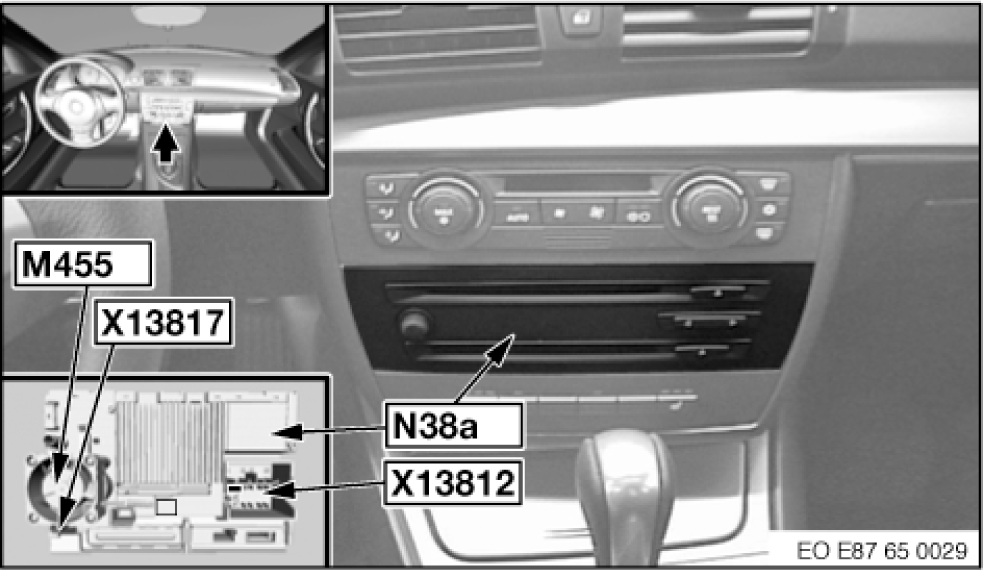

Fig 206: Center Of Dash

G00495708

Courtesy of BMW OF NORTH AMERICA, INC.

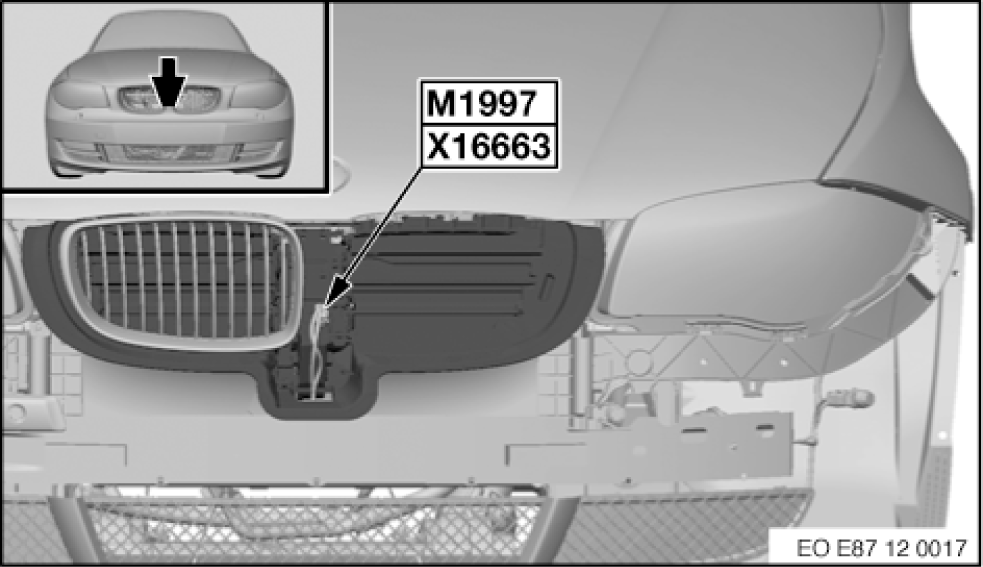

Fig 207: Front Of Vehicle

G00495709

Courtesy of BMW OF NORTH AMERICA, INC.

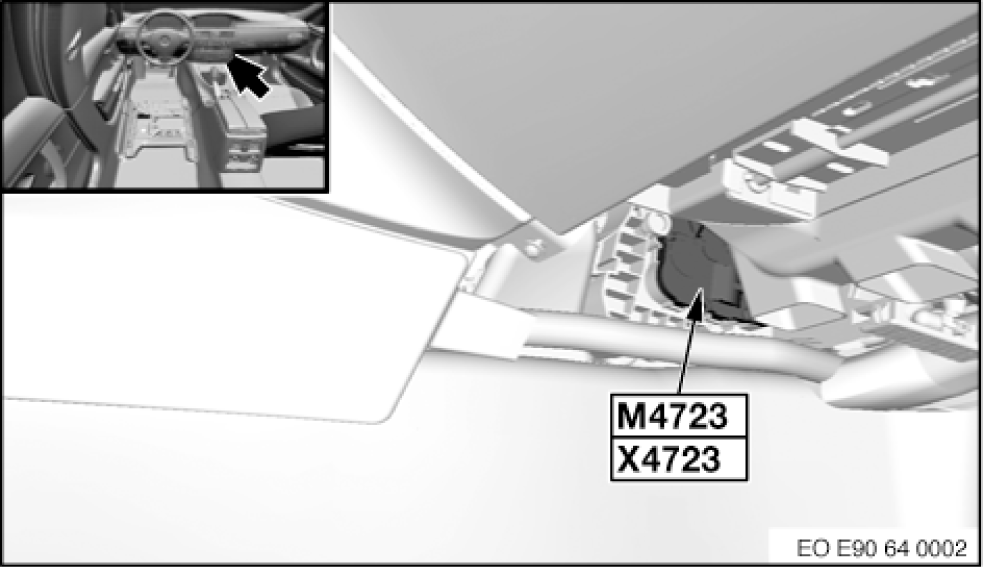

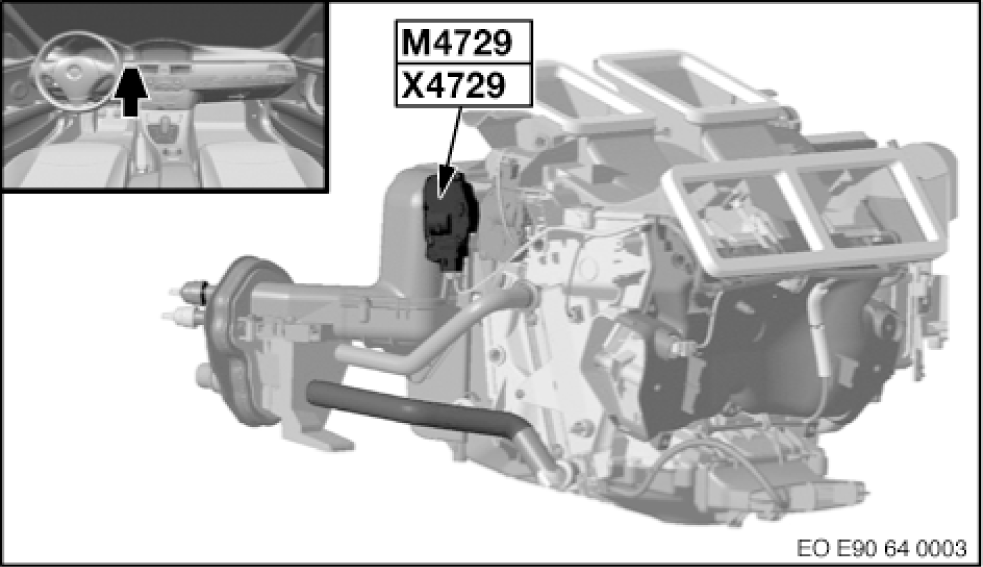

Fig 208: Center Of Dash

G00495710

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 209: Center Of Dash

G00495711

Courtesy of BMW OF NORTH AMERICA, INC.

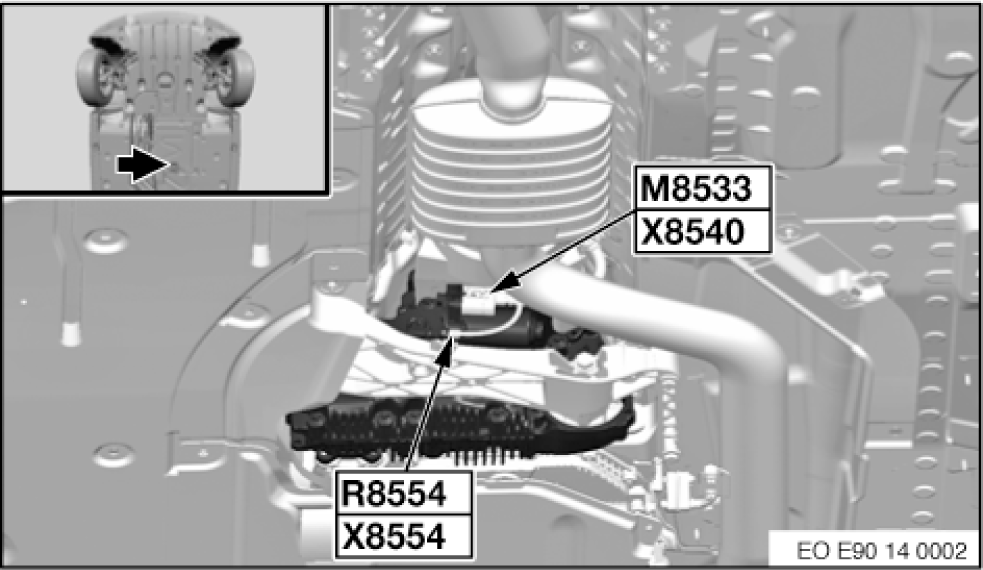

Fig 210: Under Center Of Vehicle

G00495712

Courtesy of BMW OF NORTH AMERICA, INC.

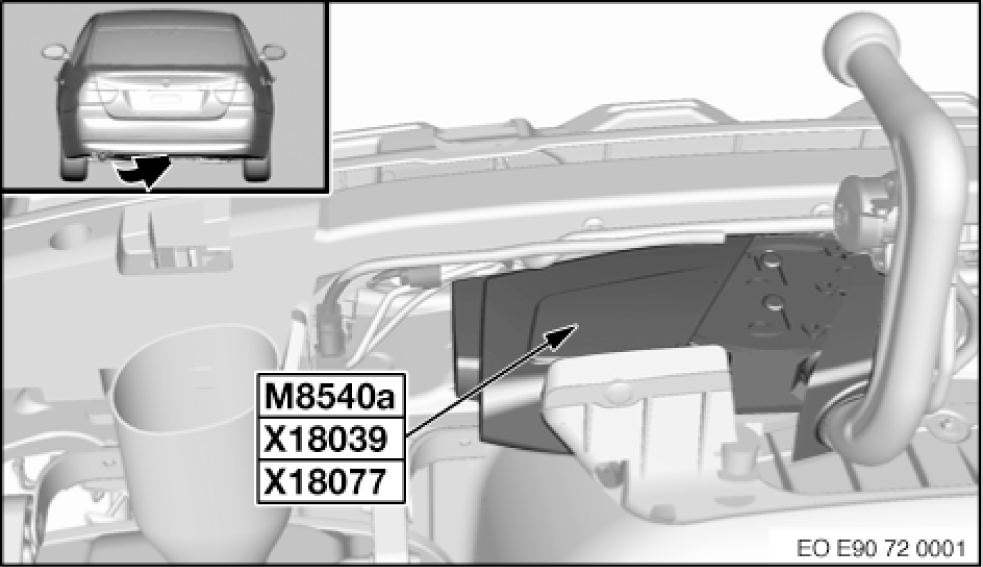

Fig 211: Under Center Of Rear Bumper

G00495713

Courtesy of BMW OF NORTH AMERICA, INC.

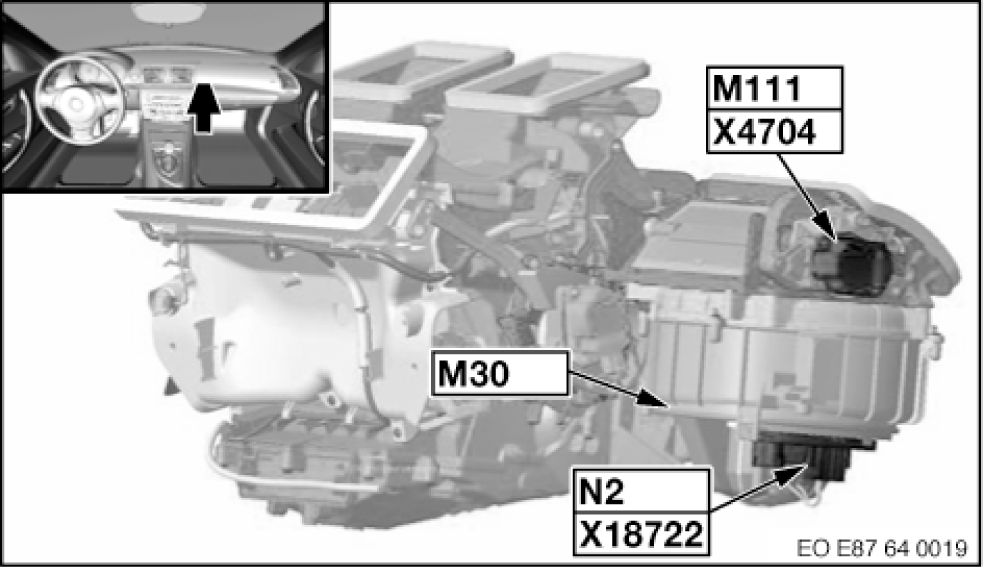

Fig 212: Center Of Dash

G00495714

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 213: Left Rear Of Passenger Compartment

G00495715

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 214: Rear Compartment

G00495716

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 215: Rear Compartment

G00495717

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 216: Rear Compartment

G00495718

Courtesy of BMW OF NORTH AMERICA, INC.

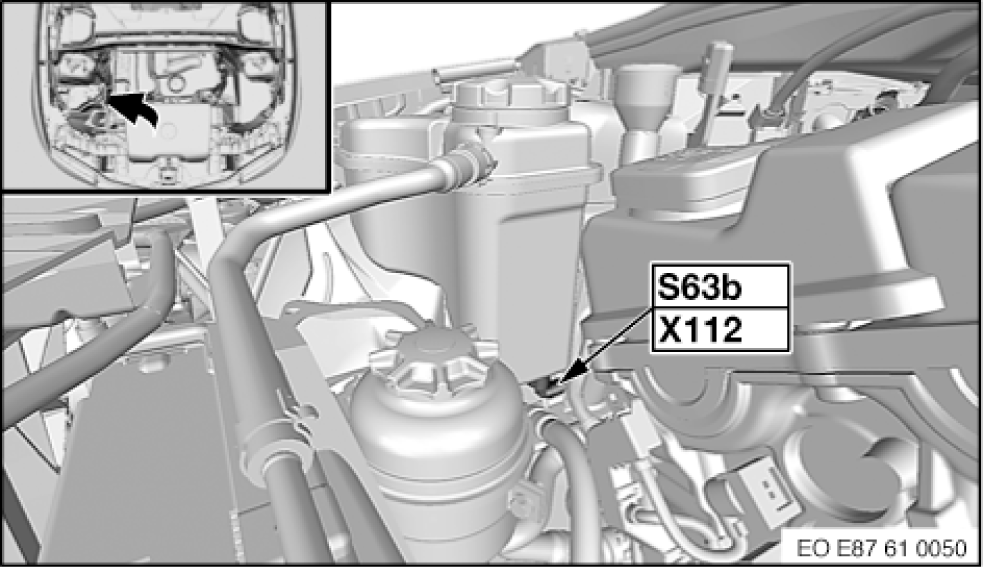

Fig 217: Engine Compartment

G00495719

Courtesy of BMW OF NORTH AMERICA, INC.

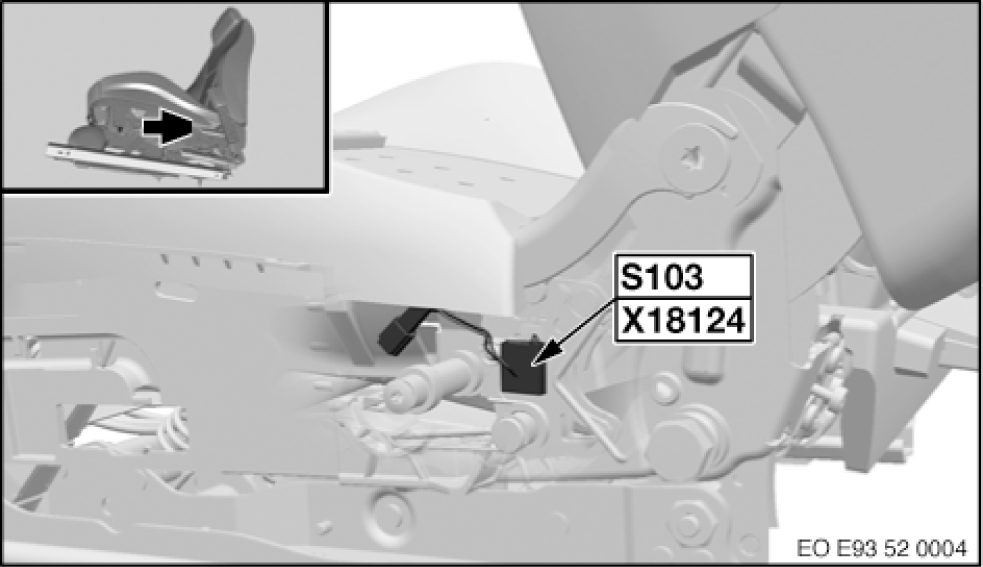

Fig 218: Driver's Seat

G00495720

Courtesy of BMW OF NORTH AMERICA, INC.

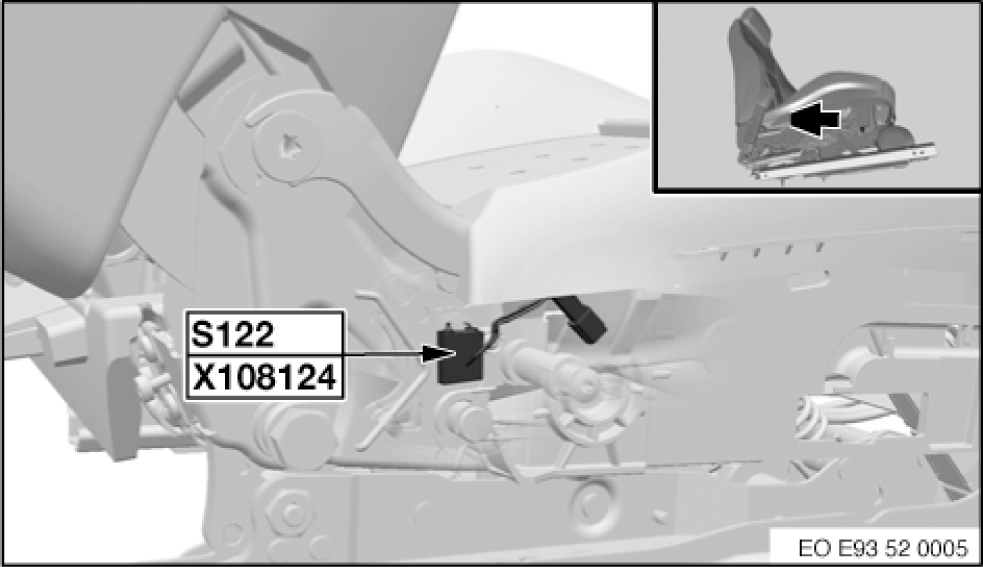

Fig 219: Front Passenger's Seat

G00495721

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 220: Rear Compartment

G00495722

Courtesy of BMW OF NORTH AMERICA, INC.

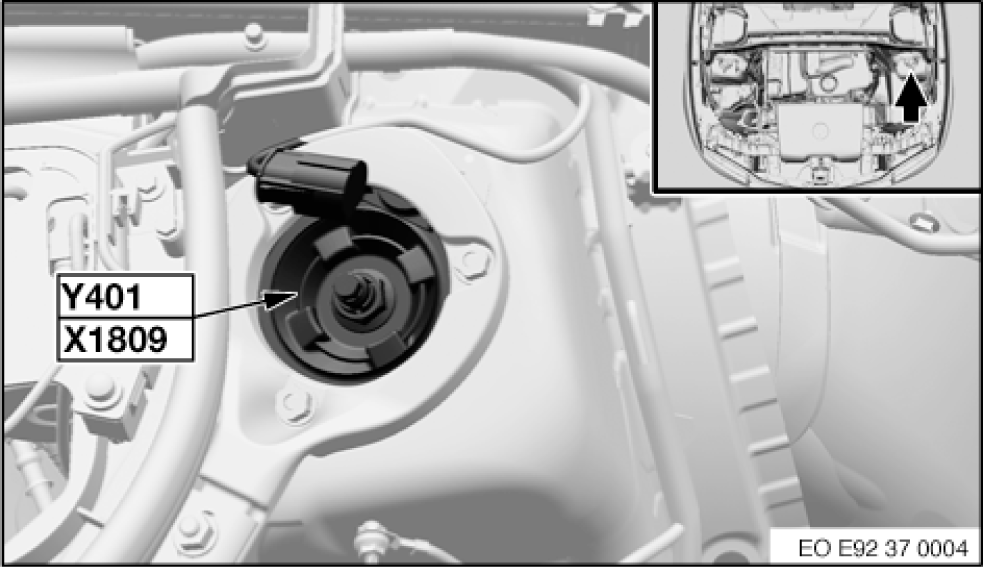

Fig 221: Engine Compartment

G00495723

Courtesy of BMW OF NORTH AMERICA, INC.

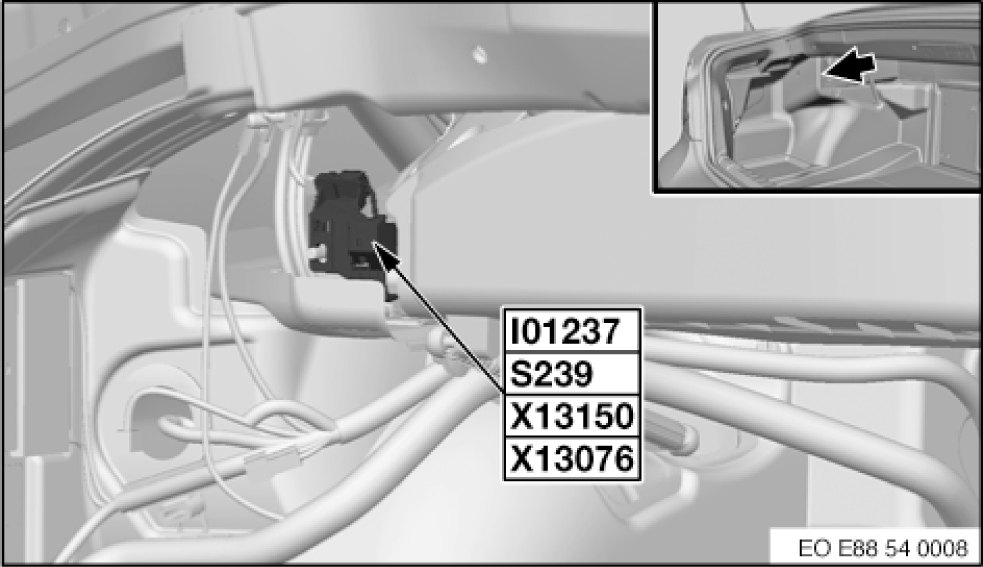

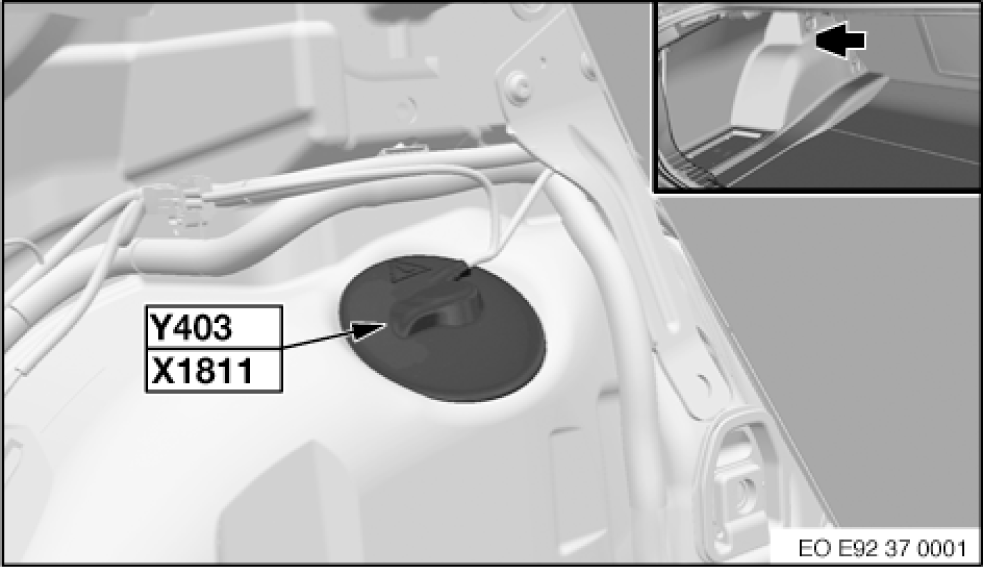

Fig 222: Rear Compartment

G00495724

Courtesy of BMW OF NORTH AMERICA, INC.

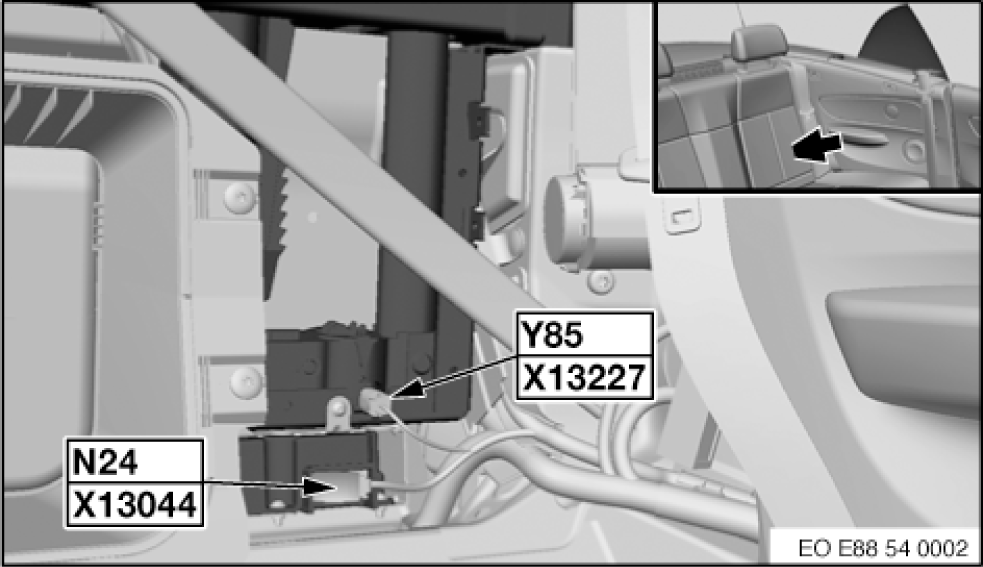

Fig 223: Rear Of Passenger Compartment

G00495725

Courtesy of BMW OF NORTH AMERICA, INC.

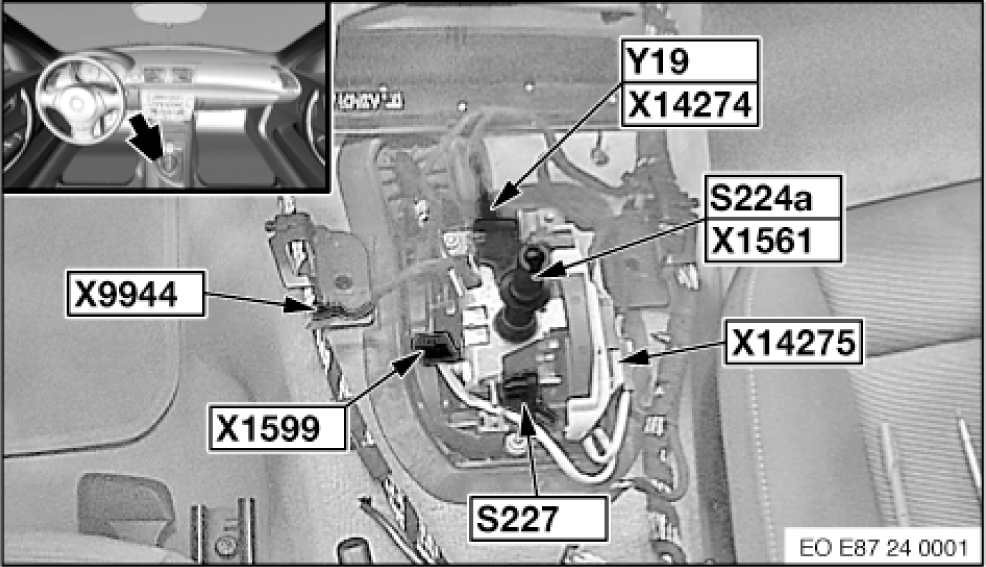

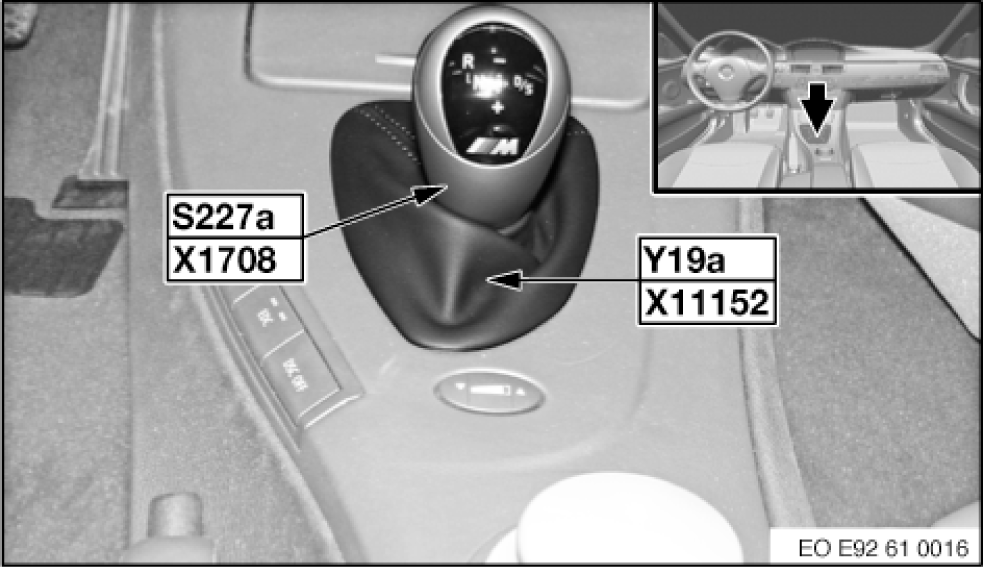

Fig 224: Center Console

G00495726

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 225: Under Center Console

G00495727

Courtesy of BMW OF NORTH AMERICA, INC.

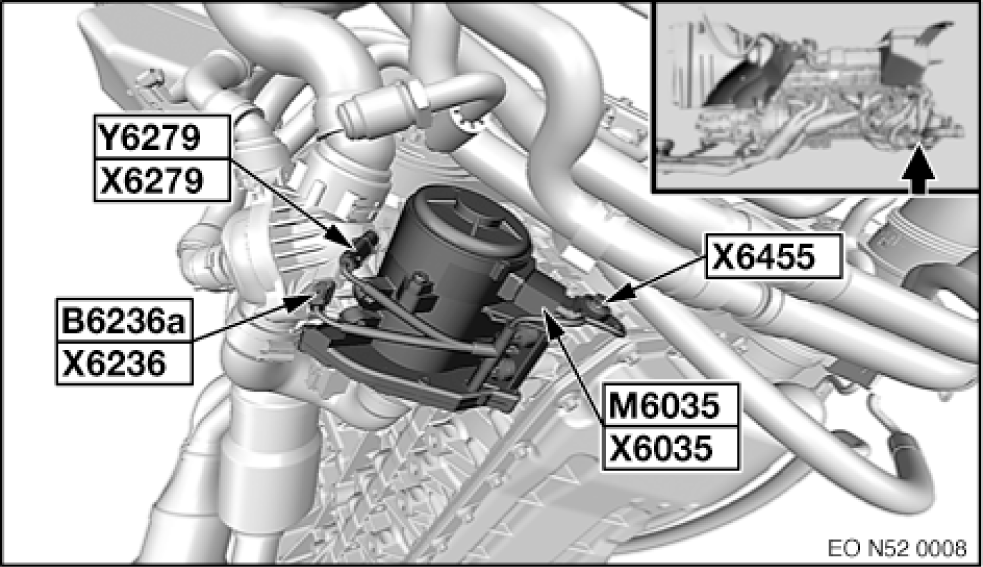

Fig 226: Bottom Front Of Engine

G00495728

Courtesy of BMW OF NORTH AMERICA, INC.

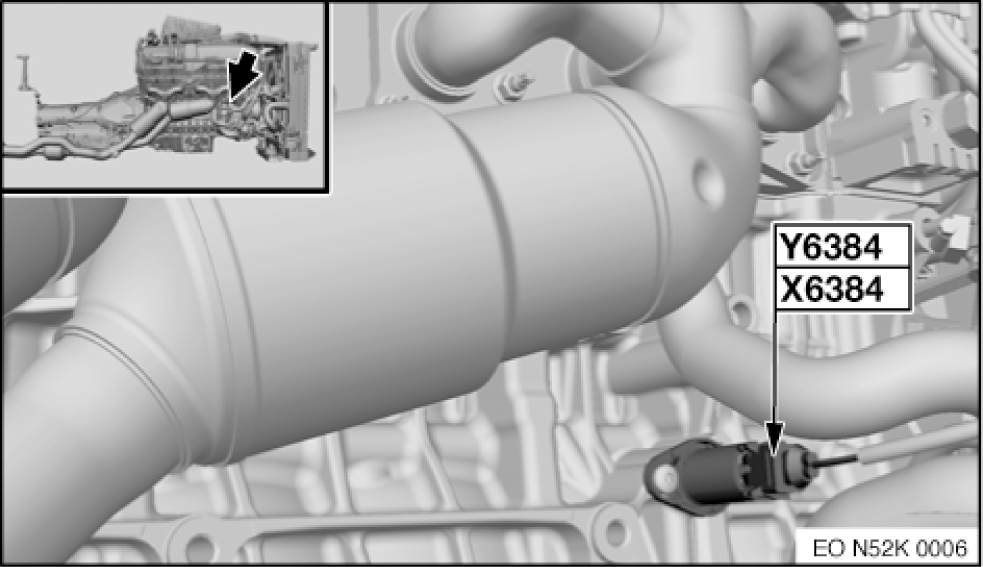

Fig 227: Right Side Of Engine

G00495729

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 228: Automatic Transmission

G00495730

Courtesy of BMW OF NORTH AMERICA, INC.

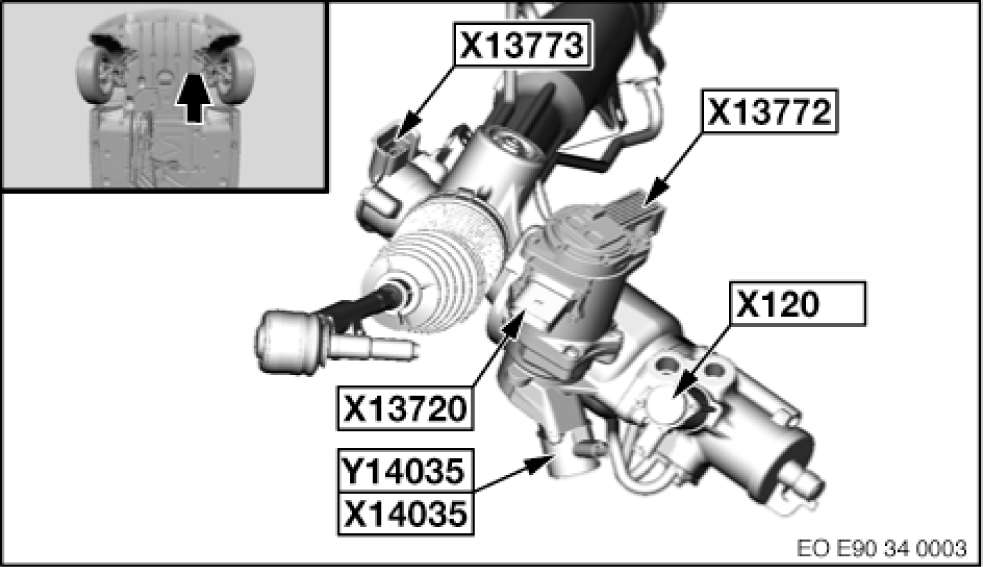

Fig 229: Steering Assembly

G00495731

Courtesy of BMW OF NORTH AMERICA, INC.
