Side Panel Module: Notes

The side panel module consists of the plastic side panel and the plastic module carrier. In addition, the side panel module also contains the washer tank, the front headlight, the fog lamp, the auxiliary turn signal light, the wheel arch cover and the wheel arch finisher.

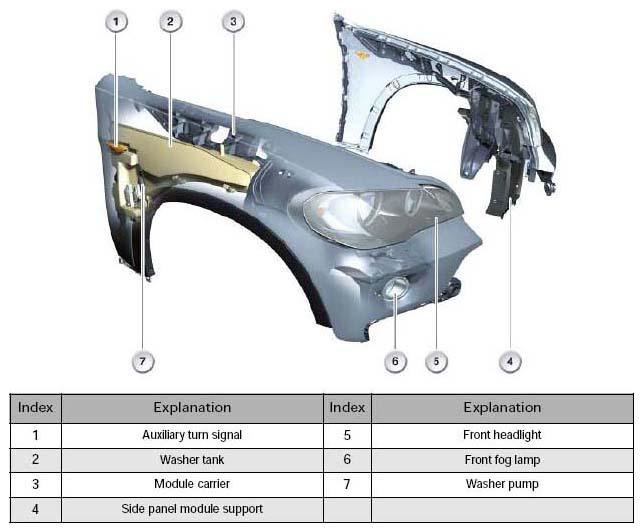

Fig 1: Identifying Plastic Side Panel And Plastic Module Carrier
G04750773Courtesy of BMW OF NORTH AMERICA, INC.
