Modifications To "Condition Based Service" Maintenance System

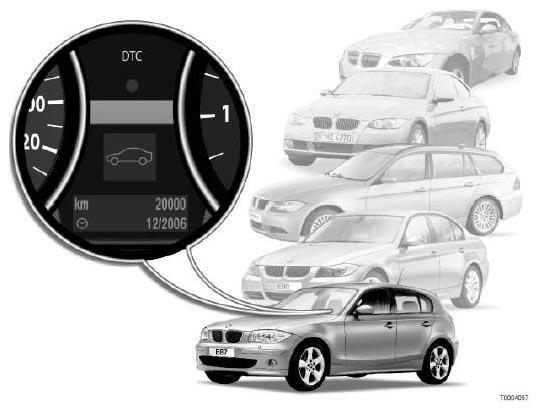

Fig 1: Identifying Condition Based Service Maintenance System - BMW

Courtesy of BMW OF NORTH AMERICA, INC.

Background:

• Passenger compartment microfilter:  Coupled to a multiple of the oil service.
• Spark plug:  Coupled to a multiple of the oil service.
• Diesel particulate filter:  Critical range covered by Check Control.
• Exhaust emissions test:  Cancellation in all regions except V6 China (can also be controlled manually via DIS Tester).

For precise coupling, please refer to:

• China
• V5
• V1, V3 and V4 Canada
• V4 USA

Date of introduction:

• Displays for interior microfilter, spark plugs and emissions test discontinued (revised encoding).
  VEHICLE PROJECTS AND DEADLINE REFERENCE



  Vehicle projects	Deadline
  E87	03/07
  E81	03/07
  E90/91/92	03/07
  E93	12/06
  E70	10/06
  E60/E61	03/07

• Diesel particulate filter  display discontinued (coupled to diesel engine applications)
  VEHICLE PROJECTS AND DEADLINE REFERENCE



  Vehicle projects	Deadline
  E87/E81 N47 OL+UL	03/07
  E90/E91 M57 TU2 UL	09/06
  E90/E91/E92 M57 TU2 Top	09/06
  E92 N47	03/07
  E92 M57 TU2 UL	03/07
  E92 M57 TU2 OL Standard+All-wheel drive	09/06
  E93 M57 TU2 OL	03/07
  E70 M57 TU2	12/06
  E60/E61 M57 TU2 OL	03/07
  E60/E61 M57 TU2 OL All-wheel drive	03/07
  E60/E61 M57 TU2 UL	03/07
  E60/E61 M57 TU2 Top	03/07
