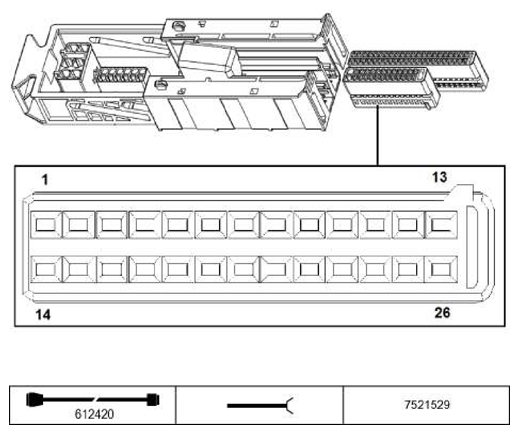

DME Control Module X60007 Connector End View
Pin Assignments At Plug Connector X60007
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, fuel injector | Fuel injector, cylinder 1 |
| 2 | A | Signal, fuel injector | Fuel injector, cylinder 2 |
| 3 | A | Signal, fuel injector | Fuel injector, cylinder 3 |
| 4 | E | Signal, coolant temperature | Engine coolant temperature sensor |
| 5 | A | Activation VANOS solenoid valve, intake | VANOS solenoid valve, intake |
| 6 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 7 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 8 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 9 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 10 | M | Shielding | Eccentric shaft sensor |
| 11 | E | Signal Intake camshaft sensor | Intake camshaft sensor |
| 12 | E | Signal Exhaust camshaft sensor | Exhaust camshaft sensor |
| 13 | E | Signal, oil pressure switch | Oil pressure switch |
| 14 | A | Signal, fuel injector | Fuel injector, cylinder 4 |
| 15 | A | Signal, fuel injector | Fuel injector, cylinder 5 |
| 16 | A | Signal, fuel injector | Fuel injector, cylinder 6 |
| 17 | M | Ground Engine coolant temperature sensor | Engine coolant temperature sensor |
| 18 | A | Activation VANOS solenoid valve, exhaust | VANOS solenoid valve, exhaust |
| 19 | E | Signal Characteristic map thermostat | Characteristic map thermostat |
| 20 | M | Ground Eccentric shaft sensor | Eccentric shaft sensor |
| 21 | A | Supply Eccentric shaft sensor | Eccentric shaft sensor |
| 22 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 23 | A | Activation, VVT relay | VVT relay |
| 24 | M | Ground Intake camshaft sensor | Intake camshaft sensor |
| 25 | M | Ground Exhaust camshaft sensor | Exhaust camshaft sensor |
| 26 | A/E | BSD signal | Electric coolant pump |
