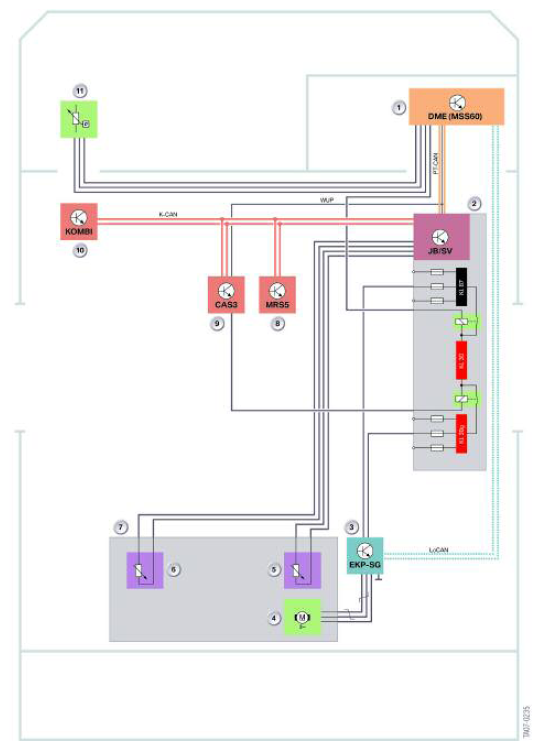

MSS60 Fuel Supply System Circuit Diagram
INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Engine control unit MSS60 |
| 2 | Junction box |
| 3 | Electric fuel pump control unit |
| 4 | Fuel pump with three-phase motor |
| 5 | Tank fill level sensor, right |
| 6 | Tank fill level sensor, left |
| 7 | Fuel tank |
| 8 | Multiple restraint system 5th generation (MRS5) |
| 9 | Car Access System 3rd generation (CAS3) |
| 10 | Instrument cluster |
| 11 | Fuel pressure sensor |
