61 31... Overview of switches

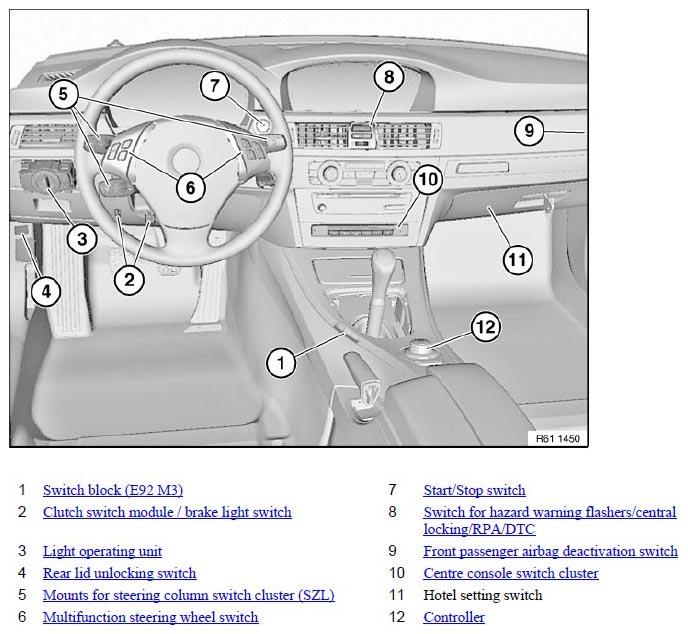

Fig 1: Identifying Switches Location

G06202009

Courtesy of BMW OF NORTH AMERICA, INC.
