52 14... Removing and installing covers on seat rails

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Front cover:

Move front seat as far back as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Simultaneously detach cover

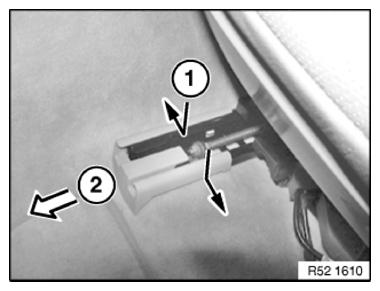

Fig 1: Pressing Retaining Lugs Of Cover With Screwdriver Downwards And Seat Rail
Courtesy of BMW OF NORTH AMERICA, INC.

Overview of front cover.

Installation note:

Retaining lugs must not be damaged.

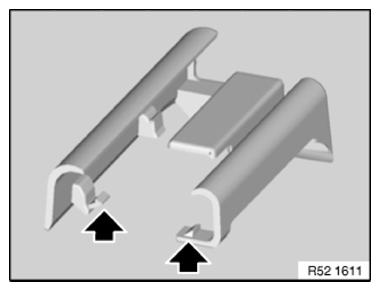

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Rear cover:

Move front seat as far forward as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Press locking tab
Simultaneously detach cover

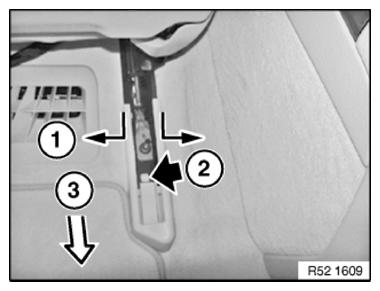

Fig 3: Pressing Retaining Lugs Of Cover With Screwdriver Downwards
Courtesy of BMW OF NORTH AMERICA, INC.

Overview of rear cover.

Installation note:

Retaining lugs must not be damaged.

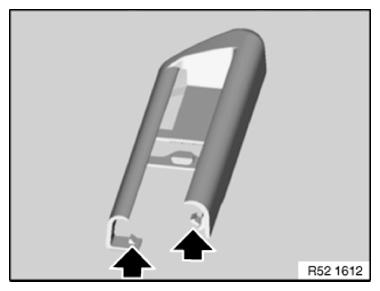

Fig 4: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
