6131052 Removing and installing/replacing Center console switch cluster (without CCC/ASK): Notes
Necessary preliminary work:
Replacement:

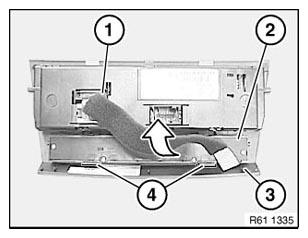

Unfasten plug connection (1) and disconnect.
Unclip Center console switch cluster (2) at retaining points (4).
Remove Center console switch cluster (2) in direction of arrow from trim (3).
Assign buttons according to vehicle equipment.
Replacement note!
Excess length of ribbon cable!
To avoid damage and rattling noise, the ribbon cable must be fitted and secured correctly!
Installation note:
Replacement on vehicles with control panel for automatic climate control:

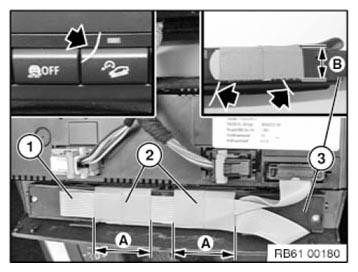

Install ribbon cable (1) as illustrated and secure over a wide area (A) with adhesive tape (2). Use the entire length of the side face (B) of the Center console switch cluster (3) for this purpose.
Therefore, cleanly cut off adhesive strips!
Refer to INFORMATION ON SECURING COMPONENTS WITH ADHESIVE TAPE .
Installation note:
Replacement on vehicles with control panel for air conditioning system:

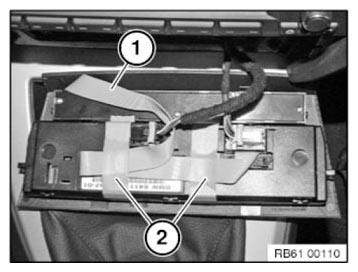

Install ribbon cable (1) as illustrated and secure with two adhesive strips (2).
Cleanly cut off adhesive strips (2).
Refer to INFORMATION ON SECURING COMPONENTS WITH ADHESIVE TAPE .

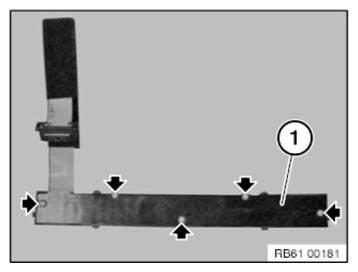

Undo screws (see arrows) and detach cover (1).
Tightening torque: 0.3 Nm
To tighten screws, use special tool 00 9 450 .
Wear gloves!
(BMW Parts Department 8319 2 159 171)
Do not touch printed circuit board!
Grasp printed circuit board only at the sides!

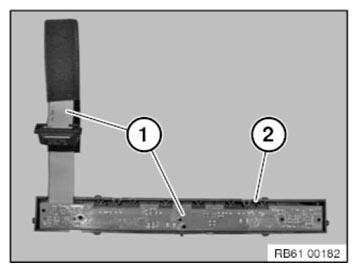

Remove pc-board together with ribbon cable (1) from casing (2).

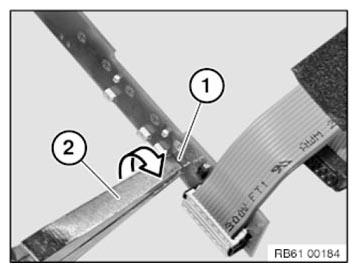

Grip LED (1) with suitable pliers (2) as illustrated. Turn pliers (2) in clockwise direction.

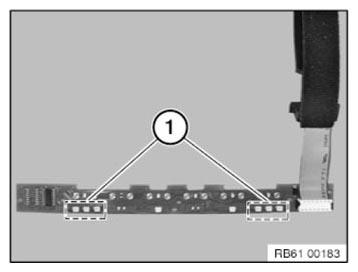

Repeat procedure for remaining LEDs.
Installation note:
Make sure the Center console switch cluster is reassembled correctly!
