6135953 Removing and installing/replacing interior antenna for comfort access system

Necessary preliminary tasks:

• Remove TRIM FOR STORAGE TRAY

Disconnect plug connection (1).

Unlock retaining hook (2) and remove interior antenna for comfort access system (3) in direction of arrow.

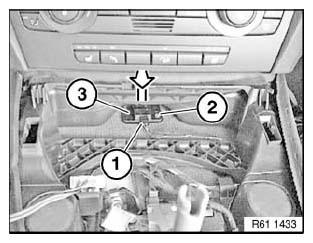

Fig 1: Removing Interior Antenna For Comfort Access System In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
