Necessary preliminary tasks

Disconnect plug connection (2).

IMPORTANT: Carefully disconnect plug connection for ribbon cable (1).
Replace the ribbon cable if damaged.
The ribbon cable leads to:

Release screw (3).

Feed out control unit for Car Access System (4) to left and remove in downward direction.

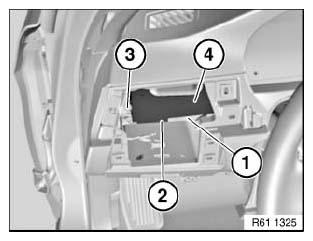

Fig 1: Identifying Screw And Car Access System Control Unit
G04727633Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 2: Identifying Guide And Control Unit For Car Access System
G04727634Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
