Special tools required

IMPORTANT: After completing work:

Load specific data version with DIS
Check TRANSMISSION OIL LEVEL
Use only the approved transmission fluid. See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Unscrew plug (1) and disconnect.

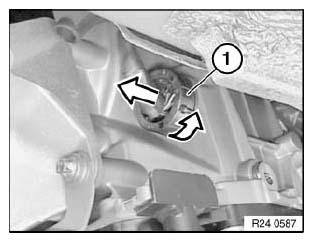

Fig 1: Identifying Unscrew Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

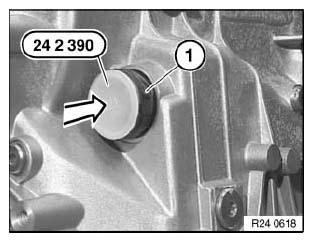

Fig 2: Inserting Special Tool (24 2 390) In Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
