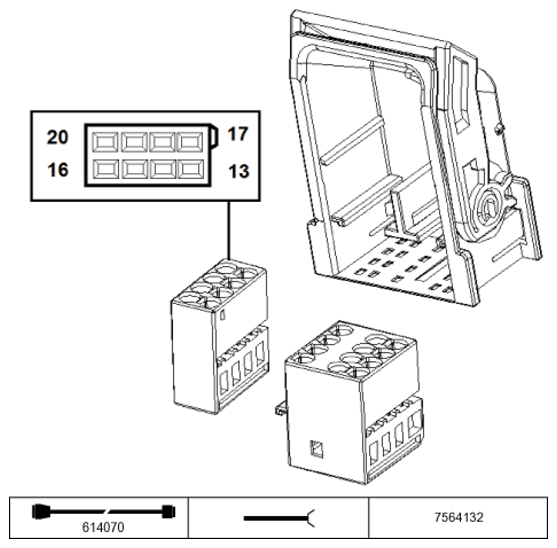

Digital Diesel Electronics Control Module SX200052A Connector End View
Pin Assignments At Plug Connector X200052
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | -- | Not occupied | |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied | |
| 13 | A | Activation Refill pump | Refill pump |
| 14 | A | Activation Metering pump | SCR delivery module |
| 15 | A | Activation Heating module/heating output stages 1 to 3 | Not occupied |
| 16 | A | Activation Heating module/heating output stages 1 to 3 | Heating module/heating output stages 1 to 3 |
| 17 | A | Activation Switch-over valve | SCR delivery module |
| 18 | A | Activation Heating module/heating output stages 1 to 3 | Heating module/heating output stages 1 to 3 |
| 19 | E | Signal Fuel level sensor, passive fuel tank | Fuel level sensor, passive fuel tank |
| 20 | E | Signal Fuel level sensor, active tank | Fuel level sensor, active tank |
