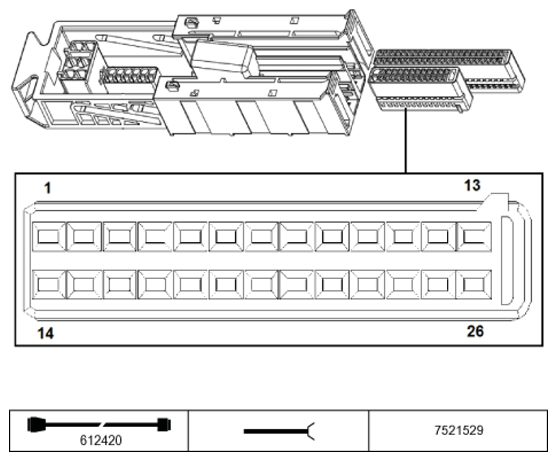

DME Control Module SX60007A Connector End View
Pin Assignments At Plug Connector X60007
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | E | Signal, coolant temperature | Engine coolant temperature sensor |
| 5 | A | Activation VANOS solenoid valve, intake | VANOS solenoid valve, intake |
| 6 | -- | Not occupied | |
| 7 | A | Activation | Wastegate valve |
| 8 | M | Ground Rail pressure sensor | Rail pressure sensor |
| 9 | E | Signal Rail pressure sensor | Rail pressure sensor |
| 10 | A | Supply Rail pressure sensor | Rail pressure sensor |
| 11 | E | Signal Camshaft sensor I | Camshaft sensor I |
| 12 | E | Signal Camshaft sensor II | Camshaft sensor II |
| 13 | E | Signal, oil pressure switch | Oil pressure switch |
| 14 | A | Activation | Wastegate valve 2 |
| 15 | -- | Not occupied | |
| 16 | -- | Not occupied | |
| 17 | M | Ground Engine coolant temperature sensor | Engine coolant temperature sensor |
| 18 | A | Activation VANOS solenoid valve, exhaust | VANOS solenoid valve, exhaust |
| 19 | E | Signal Map thermostat | Map thermostat |
| 20 | -- | Not occupied | |
| 21 | -- | Not occupied | |
| 22 | -- | Not occupied | |
| 23 | -- | Not occupied | |
| 24 | M | Ground Camshaft sensor I | Camshaft sensor I |
| 25 | M | Ground Camshaft sensor II | Camshaft sensor II |
| 26 | E/A | BSD signal | Electric coolant pump |
