6131... Overview of switches

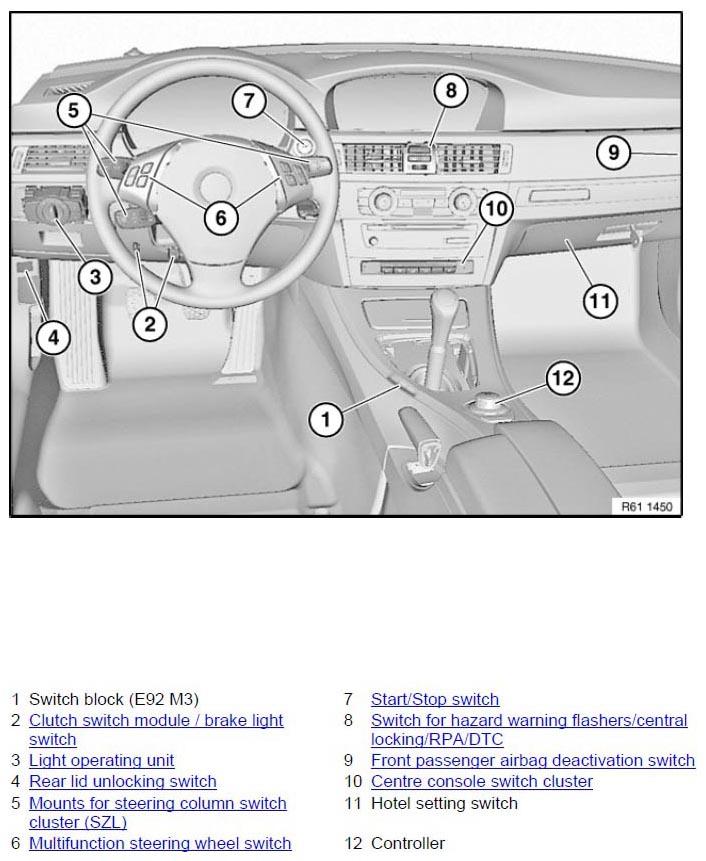

Fig 1: Identifying Switches Locations
G06855284Courtesy of BMW OF NORTH AMERICA, INC.
