6161... Overview of windscreen wiper and washer system
6161... Overview of windscreen wiper and washer system

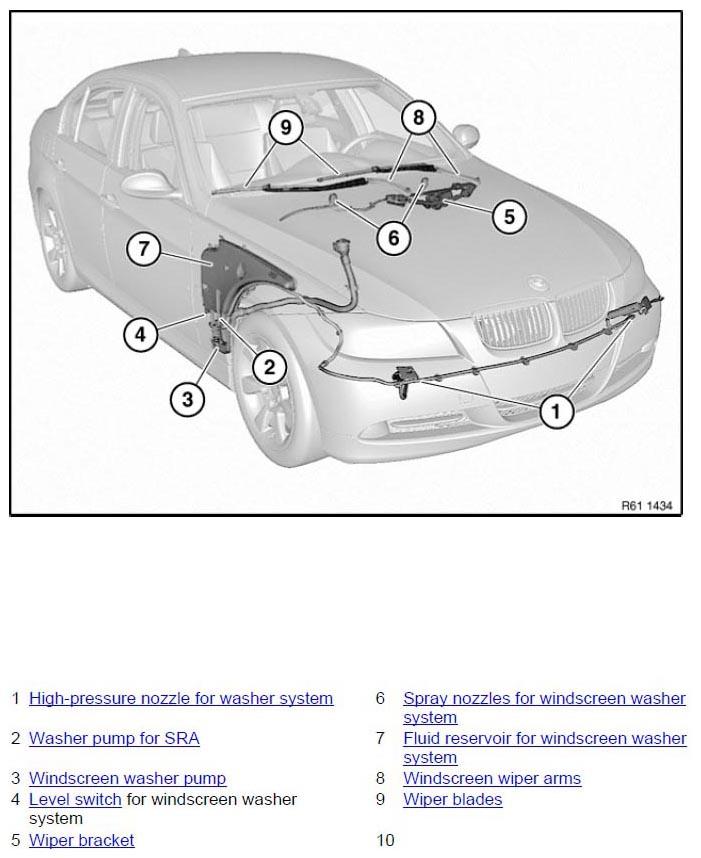

Fig 1: Identifying Windscreen Wiper And Washer System
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
