Necessary preliminary tasks

NOTE: Work is shown on the E82 N52N by way of example. There may be differences in detail in the case of other vehicle models.

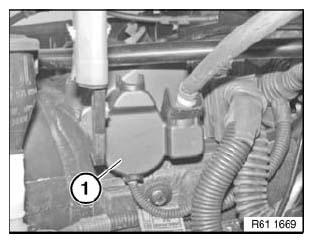

Unclip covers (1) and release nuts underneath.

Tightening torque, see 61 12 4AZ in 61 12 AUXILIARY CABLE .

Remove battery positive cables.

Fig 1: Identifying Electronics Box Covers

Courtesy of BMW OF NORTH AMERICA, INC.

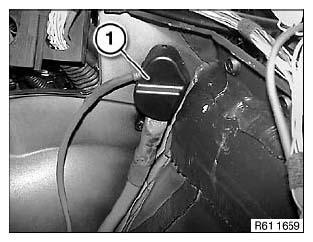

Unclip cover (1).

Fig 2: Identifying Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1). Tightening torque, see 61 12 4AZ in 61 12 AUXILIARY CABLE .

Remove battery positive cables.

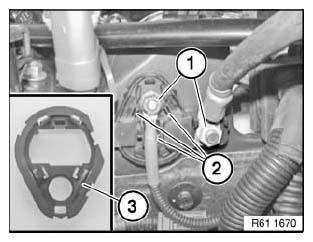

Release locks (2) and remove frame (3) towards rear from B+ terminal.

Unclip B+ terminal and remove towards front.

Installation:

Make sure frame (3) engages correctly in B+ terminal.

Fig 3: Identifying Locks And Frame
