Necessary preliminary tasks

Release screw (1) and remove grounding cable.

Unlock plug (2) with a suitable tool and detach.

Open cable tie (arrowed).

Unclip cable holder (4).

Unlock plug (3) with a suitable tool and detach.

Installation:

Replace faulty cable holder (4).

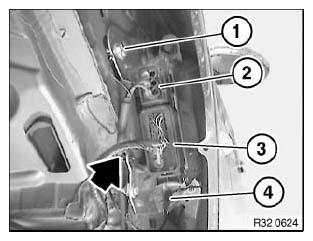

Fig 1: Identifying Plug And Faulty Cable Holder
G04726429Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Tightening torque 32 43 1AZ .

Release screw (2).

Tightening torque 32 43 1AZ .

Remove active front steering control unit (3).

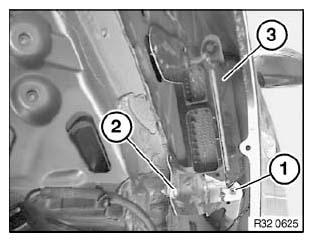

Fig 2: Identifying Active Front Steering Control Unit
G04726430Courtesy of BMW OF NORTH AMERICA, INC.
