72 12... Overview of airbag modules, airbag control unit, belt tensioners

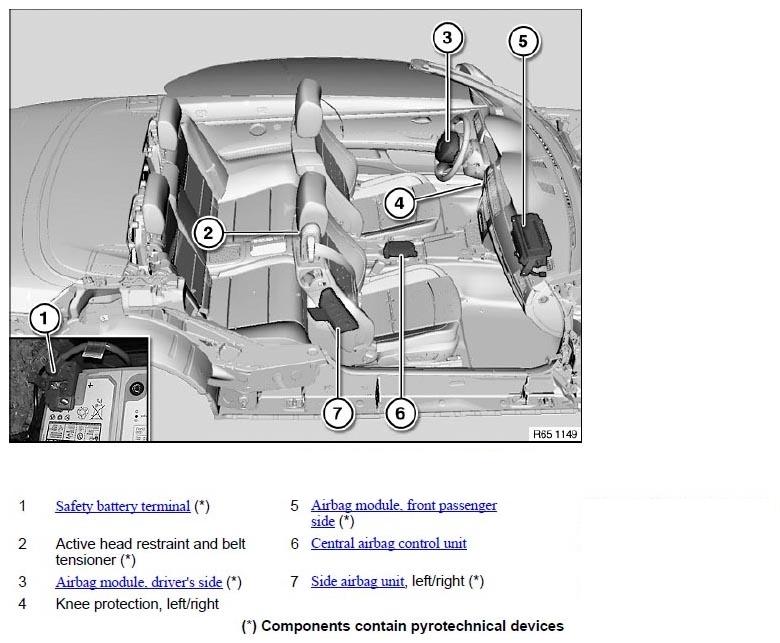

Fig 1: Identifying Airbag Modules, Airbag Control Unit And Belt Tensioners

G06178100

Courtesy of BMW OF NORTH AMERICA, INC.
