11 00 590 Replacement Power Plant (N54)

Necessary preliminary tasks:

Remove and install engine . See 11 00 050 REMOVING AND INSTALLING ENGINE (N54) .
Mount engine on assembly stand . See 11 00 MOUNTING ENGINE ON ASSEMBLY STAND (N54) .
If necessary, remove foreign bodies from turbocharger group.
Check all assemblies and convert to replacement power plant.

Remove transportation locks (1).

NOTE: Catch escaping engine oil with a suitable cloth (2).

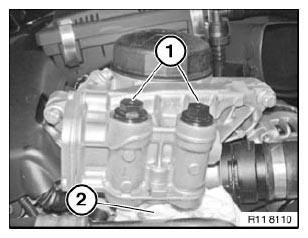

Fig 1: Identifying Transportation Locks And Cloth

Courtesy of BMW OF NORTH AMERICA, INC.

Transportation locks (1) are no longer needed.

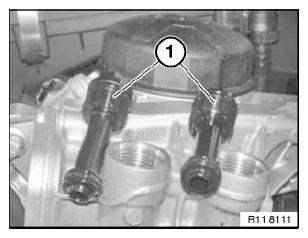

Fig 2: Identifying Transportation Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Modify screw plugs (1) from old power plant.

Insert screw plugs (1).

Tightening torque. See 11 42 11AZ in 11 42 OIL FILTER AND PIPES .

Secure oil cooler lines with mounting bar (2).

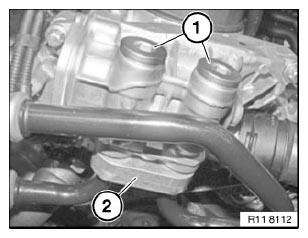

Fig 3: Identifying Screw Plugs And Mounting Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
