Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

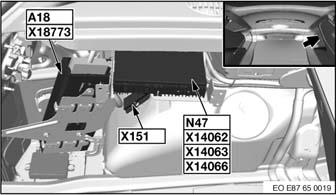

| X151 | Left side of rear compartment. See Figure. |

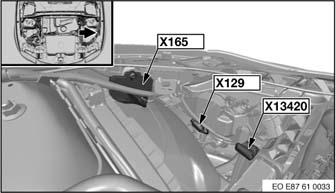

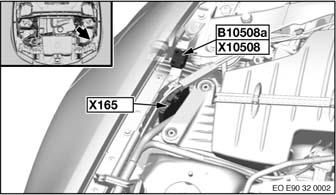

| X165 | Left side of engine compartment. See Figure. |
| X165 | Left side of engine compartment. See Figure. |

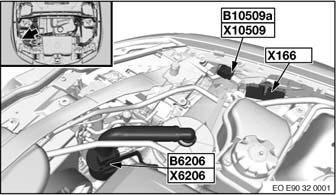

| X166 | Right side of engine compartment. See Figure. |

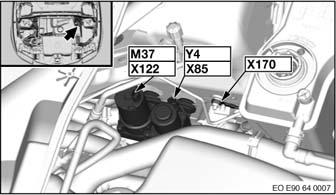

| X170 | Left side of engine compartment. See Figure. |

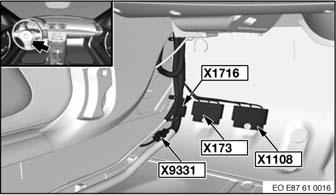

| X173 | Under left side of dash. See Figure. |
| X494 | Right rear side of interior panel. See Figure. |

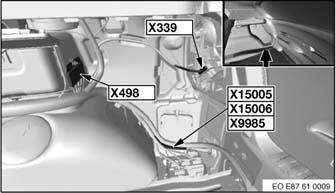

| X498 | Right side of rear compartment. See Figure. |
| X1108 | Under left side of dash. See Figure. |

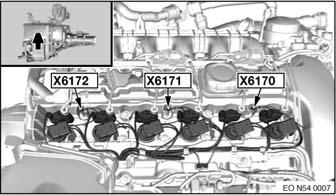

| X6170 | Top of engine. See Figure. |
| X6171 | Top of engine. See Figure. |
| X6172 | Top of engine. See Figure. |

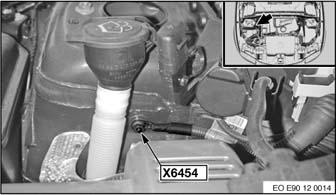

| X6454 | Right rear of engine compartment. See Figure. |

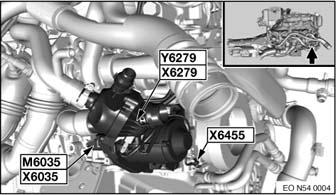

| X6455 | Right side of engine coolant pump. See Figure. |

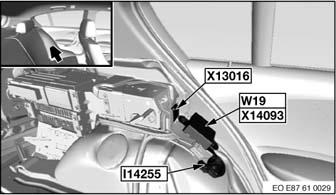

| X13016 | Left rear side of interior panel. See Figure. |
