DSC Button

The DSC button is located in the center console switch center (1) next to the RPA button. DTC mode is activated by briefly pressing the DSC button.

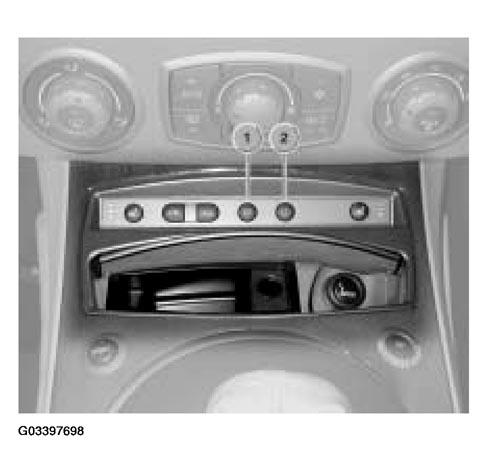

Fig 1: Identifying DSC Button

Courtesy of BMW OF NORTH AMERICA, INC.

A DTC symbol in the instrument cluster provides the driver with visual confirmation.

Fig 2: Identifying DSC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

By pressing and holding the DSC button for longer than 3 seconds the DSC function switches off completely and the DSC symbol is illuminated in the instrument cluster. The ABS function is always on line.

The DSC function is reactivated by briefly pressing the DSC button once again. The visual symbol goes out. The DSC symbol flashing signals to the driver that a DSC control intervention is active. By cycling the ignition switch, DTC will be deactivated and DSC is automatically on line (DTC or DSC deactivation must be reselected by the driver).
